Power Supply Requirements
42 GeoSteer System
Power Supply Requirements
The GeoSteer Control Unit must be connected to a 12 volt uninterrupted power supply. In most situations, the Display kit will
provide a harness that provides power directly from the battery. Along with the power connection, the GeoSteer Control Unit
must also be connected with a power activation signal from the Display. This connector provides a signal to the GeoSteer
Control Unit to command it to power up when the Display is powered up. Refer to your Display Installation Manual for
instructions on connecting the GeoSteer system to power and power activation.
Refer to the Connecting System Cables chapter, Power Supply Connection, Battery Power
Connection section in the vehicle-specific AutoSteer Installation Manual provided with the
installation kit for information on how to locate the battery on the vehicle.

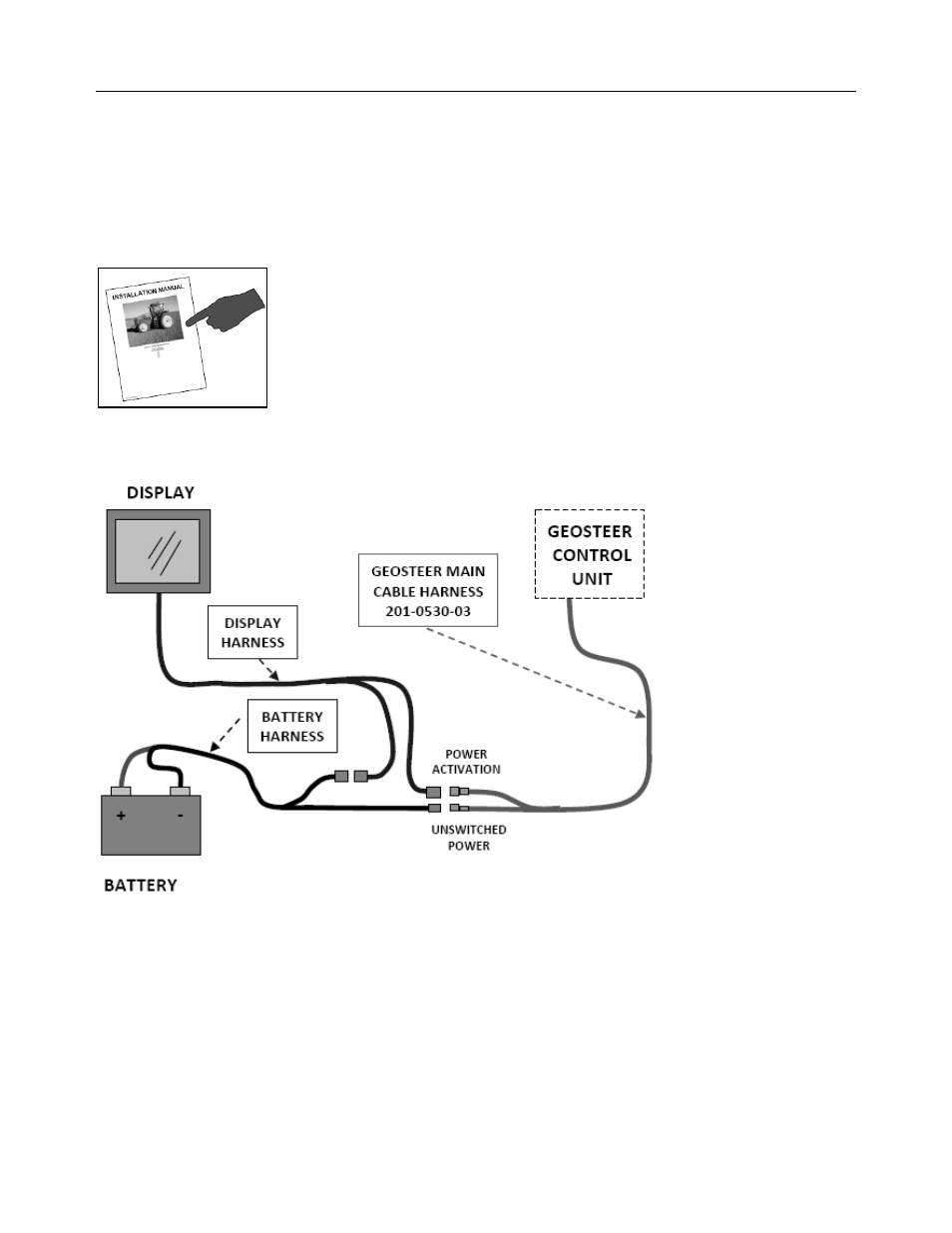

Figure 8-17 provides a generic representation of how the GeoSteer system should be connected to the power sources.
Figure 8-17 Typical Battery Cable Connection Diagram
