GeoDock Installation
16 GeoSteer System
4. Use alcohol wipes to finish cleaning the area to verify that all oil and grease is removed. Let the area dry.
Note: It is very important that all dirt and oil have been removed from the mounting point on the cab so that the high bond
strips will hold the GeoDock Mounting Plate to the roof.
5. Use fixed points on the roof and a tape measure to find the exact centerline of the vehicle and mark that position on the
area that has been cleaned with a marking device.
Note: On some vehicles the center of the cab may not be the center of the vehicle as the cab could be offset. Always verify
that the centerline marked is the centerline of the vehicle if the cab is not centered over the vehicle.

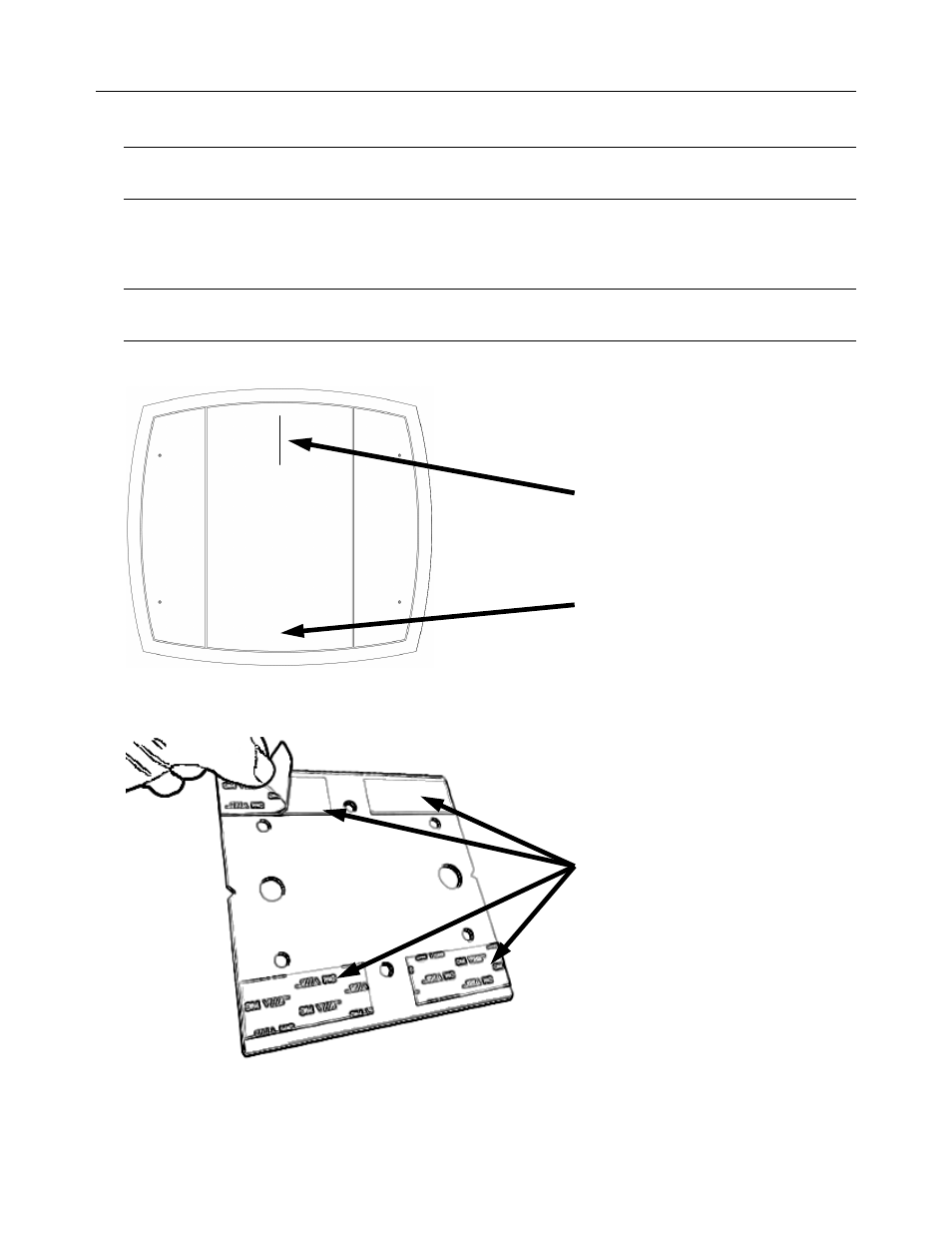

Figure 5-4 Mark Centerline
6. Remove the four adhesive backings on the GeoDock Mounting Plate.
Figure 5-5 Remove Adhesive Backing from GeoDock Mounting Plate
Remove Backing
Mark the Centerline of the Vehicle
Rear of Cab
