Cable Diagram Examples

Hardware

Installation

Guide

31

Case AccuGuide / New Holland IntelliSteer Ready MFWD
Installation Example

• Cell Antenna Coax Cable (PN 201-0539-02) is not required if not using a Cell Modem.

• Foot Switch (PN 201-0376-01) is an optional accessory component.

• GeoSteer can be connected to multiple models of Displays. Refer to the Display User Manual for more detailed instructions

on how to connect the GeoSteer to the Display data and power ports.

• Component definitions

• DISPLAY – The Display that is connected to the GeoSteer system

• BATTERY – The battery terminals for the power source for the GeoSteer system and Display

• GEOSTEER CONTROL UNIT – The GeoSteer Control Unit

• GEODOCK – The GeoDock unit mounted on the roof

• FOOT SWITCH* – The optional Foot Switch that can be used for Remote Engage (not necessary for installation)

• ACCUGUIDE / INTELLISTEER HARNESS – The 40 pin connector on the factory supplied AccuGuide / IntelliSteer

Harness

• ACCUGUIDE STEERING VALVE – The Enabler connector on the factory supplied Steering Valve

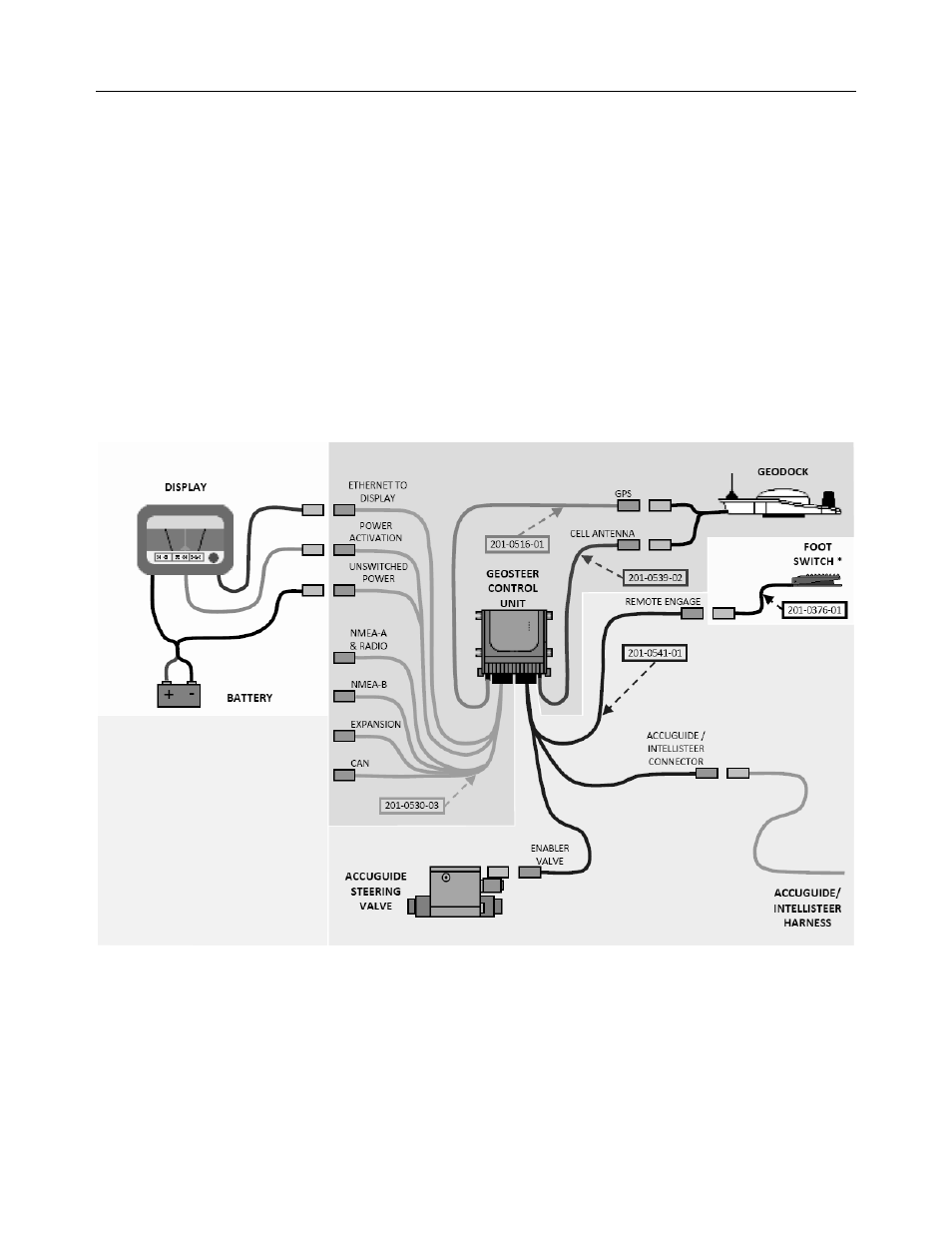

Figure 8-5 Case AccuGuide / New Holland IntelliSteer Ready MFWD Installation Example
