GeoDock Installation
Hardware Installation Guide 17
7. Use the two notches on the GeoDock Mounting Plate to center it over the marks that show the centerline of the vehicle.
Carefully place the GeoDock Mounting Plate on the clean area.
Note: The GeoDock Mounting Plate is orientation dependent. Verify that the two taps are on the left side of the vehicle
and the single tab is on the right side. The front of the GeoDock Mounting Plate is marked FRONT and should be facing
the front of the vehicle.
Note: Verify that the GeoDock Mounting Plate is square with the vehicle prior to letting the adhesive stick to the roof.
Note: The ideal temperature for applying the mounting plate using high bond tape is 70 o F to 100 o F (21 o C to 38 o C). Do not
apply the high bond tape at temperatures below 60 o F (15 o C).

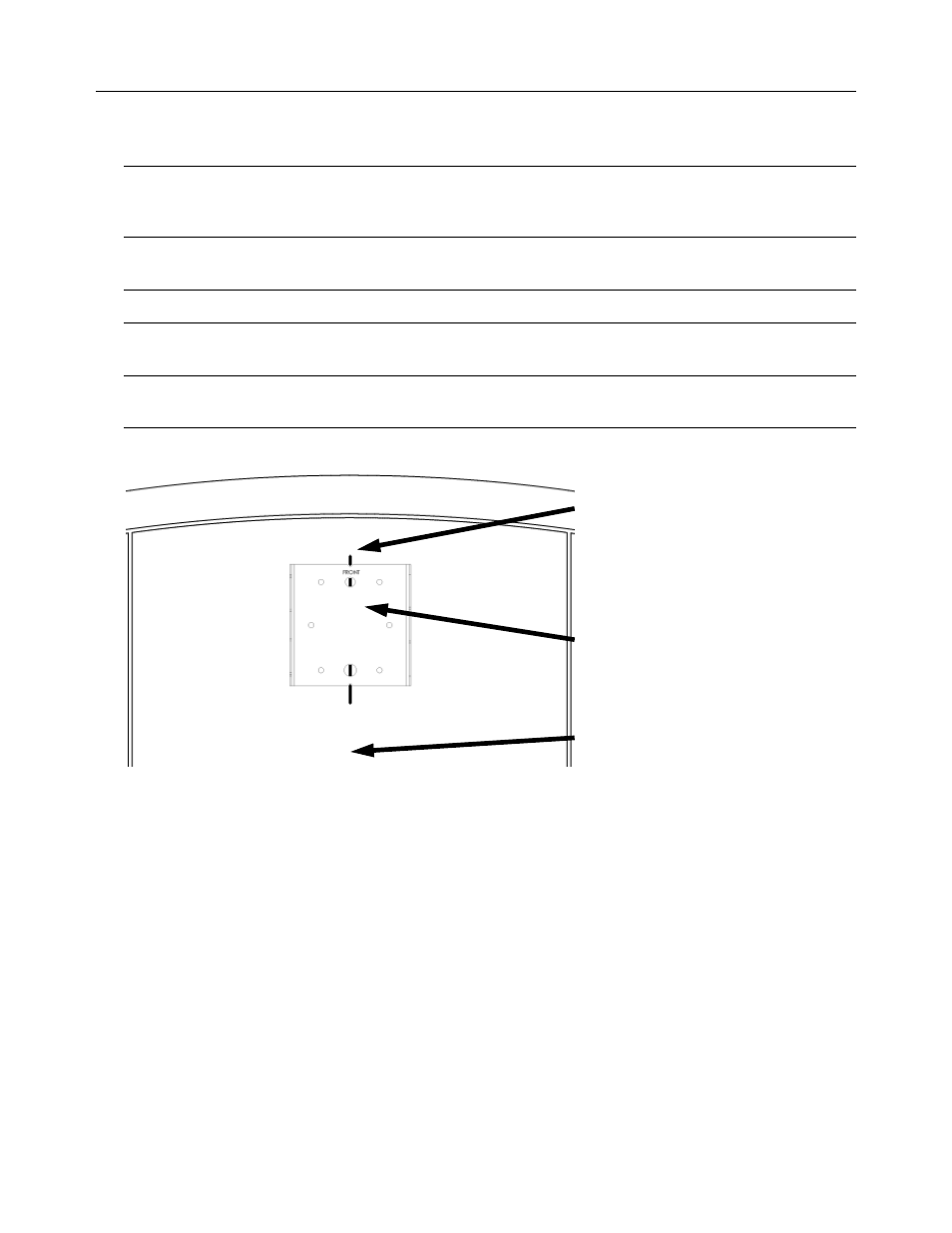

Figure 5-6 GeoDock Mounting Plate Attached to Roof
FRONT Mark towards Front of Vehicle
GeoDock Mounting Plate
Rear of Cab
