GeoSteer System Installation Overview

2

GeoSteer System

GeoSteer System Installation Overview

This section provides an overview of what is required to complete a GeoSteer system installation. To aid in clarifying the
complete installation, this section also includes the parts and kits that are not included with this vehicle installation kit. A
GeoSteer system installation can be broken down into four sub-categories that need to be ordered to complete the installation.
Three of the sub-categories are mandatory and the fourth is a list of accessories that add additional features and capabilities.
The four parts or sub-categories of a complete GeoSteer system installation are:

1. Display Kit

2. GeoSteer System Kit

3. Vehicle Installation Kit

a. Hydraulic, Steer by Wire, or Assisted Steering Unit

b. CAN Bus

4. Accessory Kit

Each of the sub-categories is graphically shown in Figure 1-1 and is identified by a separately shaded area and the number
from the list above. Most installations will be slightly different from the example shown and may required different
components. These differences will be described in the vehicle specific information provided.

Note: Vehicle installation kits will generally include parts from only either sub-category 3a or 3b. Figure 1-1 shows examples
of how both 3a and 3b components would be connected to the GeoSteer system for demonstration purposes. Most installations
would not require both.

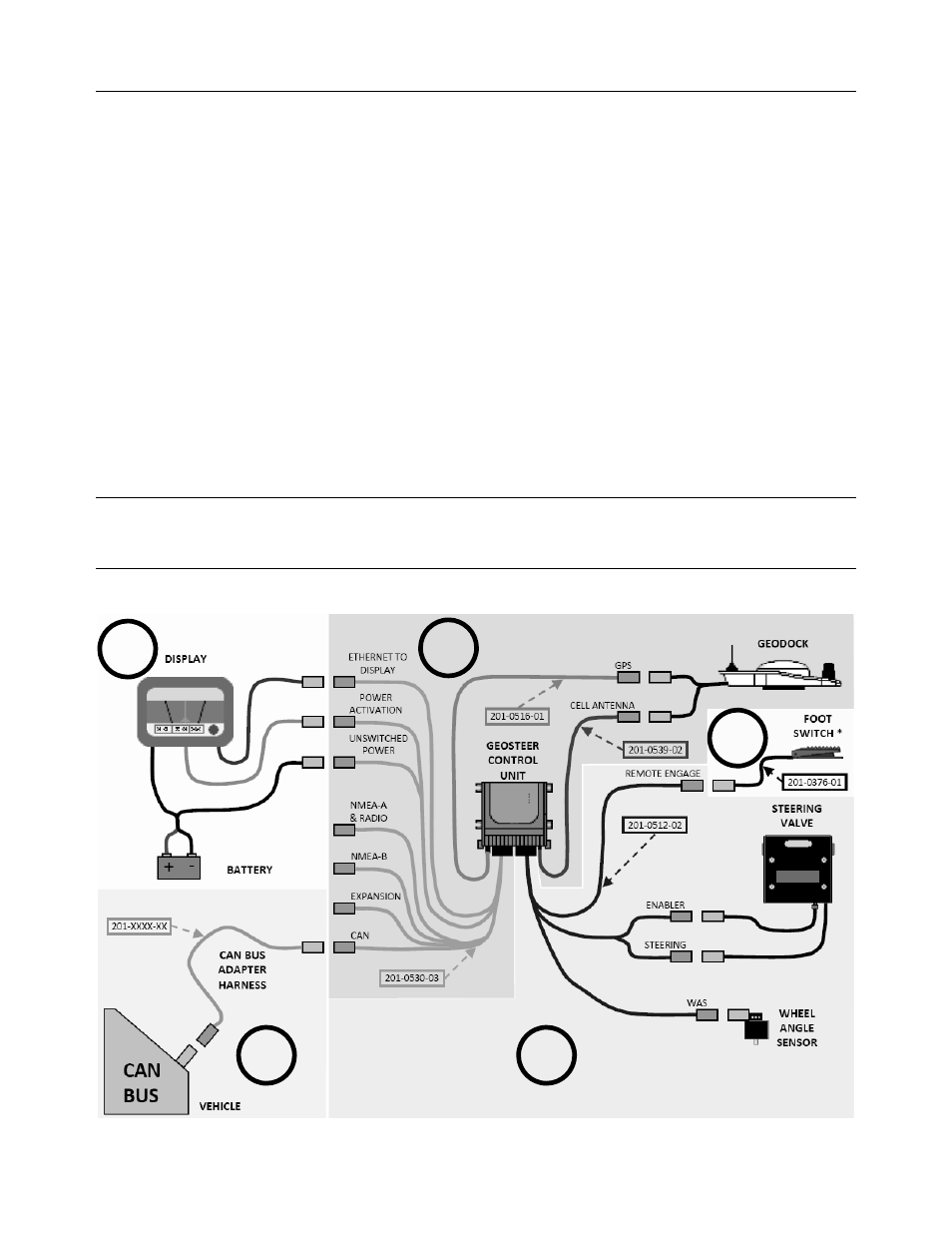

Figure 1-1 GeoSteer Installation Overview

2

3a

3b
