Page 51
Coax
Cables
Hardware
Installation
Guide
41

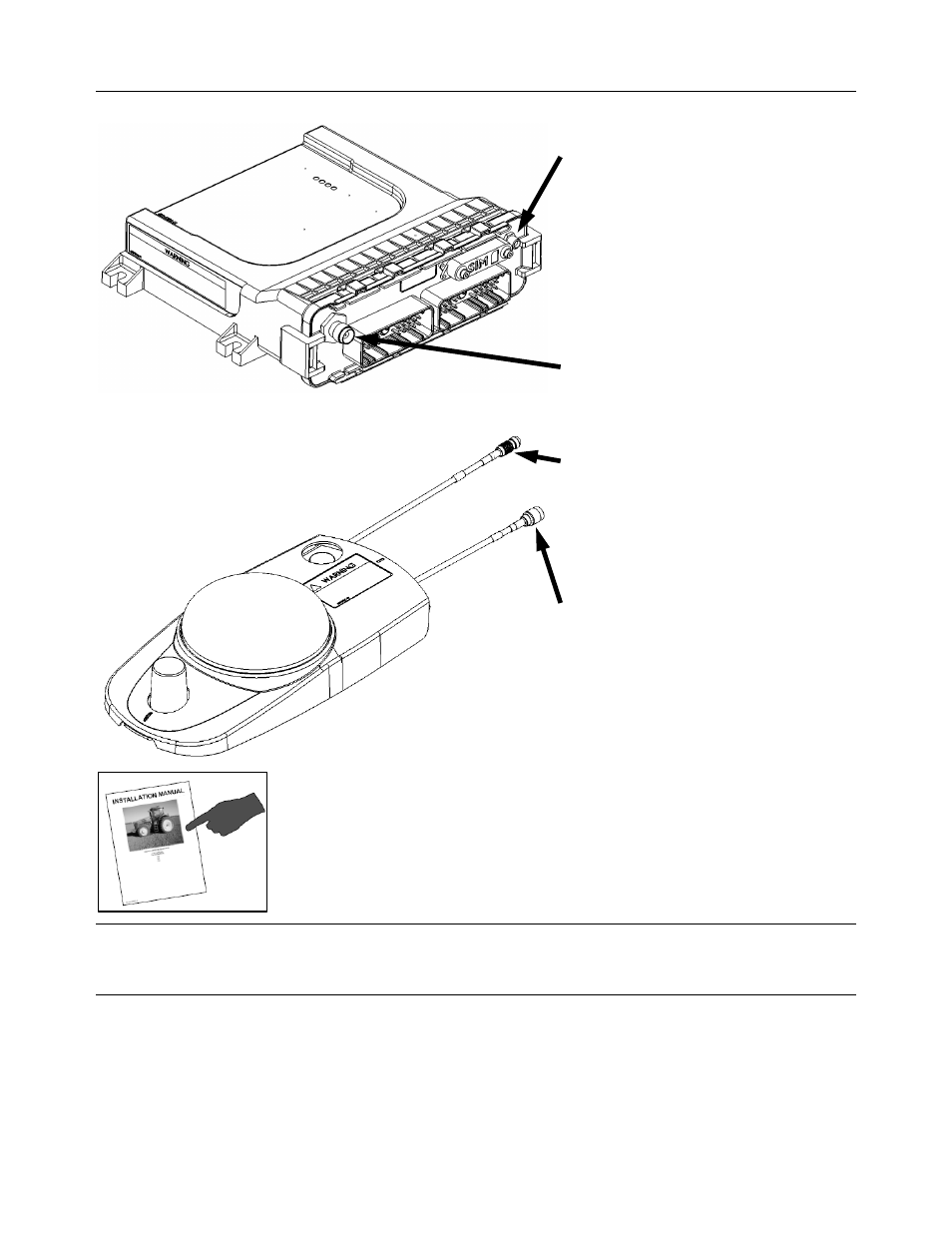

Figure 8-15 GeoSteer Control Unit Coax Connectors
Figure 8-16 GeoDock Coax Connections
Refer to the Connecting System Cables chapter in the vehicle-specific AutoSteer Installation
Manual provided with the installation kit for information on how to route the coax cables into
the cab. Use the Main Cable Harness, Roof Module section for the routing information.
Note: If the installation requires connecting to a GS-900, GS-430, GS-450, GS-470, or OmniSTAR Accessory in the
GeoDock, a power and communication harness will be routed from the GeoDock to the GeoSteer Control Unit as well as the
coax cables. Route the harness the same way as the coax cables.
GeoSteer Control Unit GPS TNC Coax
Connector
GeoSteer Control Unit Cell Modem
SMA Coax Connector (if applicable)
GeoDock GPS TNC Coax Connector
GeoDock Cell Modem Reverse TNC
Connector (if applicable)
