Macdon valve installation example – Ag Leader GeoSteer Installation Manual User Manual
Page 42
Cable Diagram Examples
32
GeoSteer System

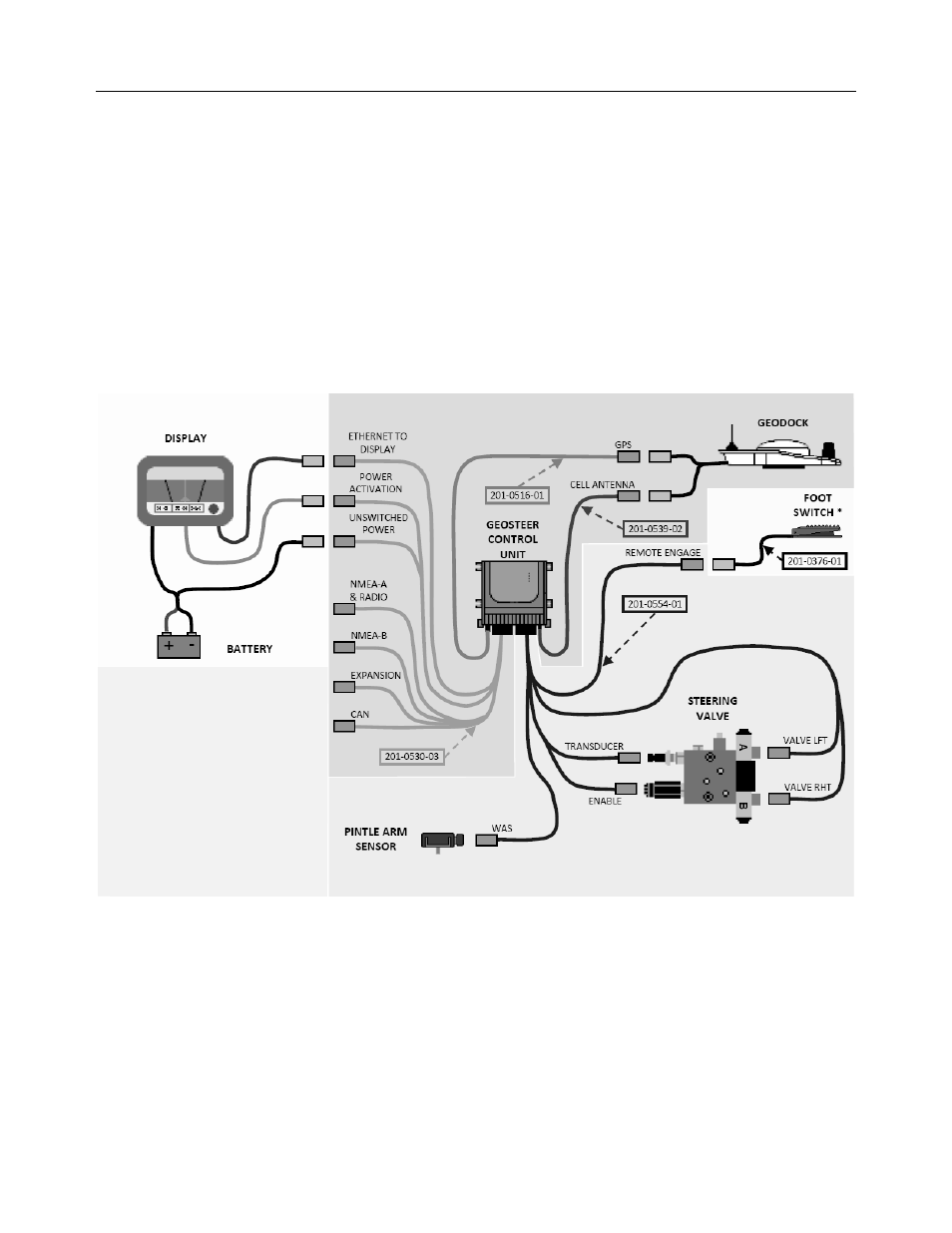

MacDon Valve Installation Example
• Cell Antenna Coax Cable (PN 201-0539-02) is not required if not using a Cell Modem.
• Foot Switch (PN 201-0376-01) is an optional accessory component.
• GeoSteer can be connected to multiple models of Displays. Refer to the Display User Manual for more detailed instructions
on how to connect the GeoSteer to the Display data and power ports.
• Component definitions
• DISPLAY – The Display that is connected to the GeoSteer system
• BATTERY – The battery terminals for the power source for the GeoSteer system and Display
• GEOSTEER CONTROL UNIT – The GeoSteer Control Unit
• GEODOCK – The GeoDock unit mounted on the roof
• FOOT SWITCH* – The optional Foot Switch that can be used for Remote Engage (not necessary for installation)
• STEERING VALVE – The MacDon Steering Valve used to steer the vehicle
• PINTLE ARM SENSOR – The device used to measure the angle of the pintle arm position
Figure 8-6 MacDon Valve Installation Example
