Cable Diagram Examples

28

GeoSteer System

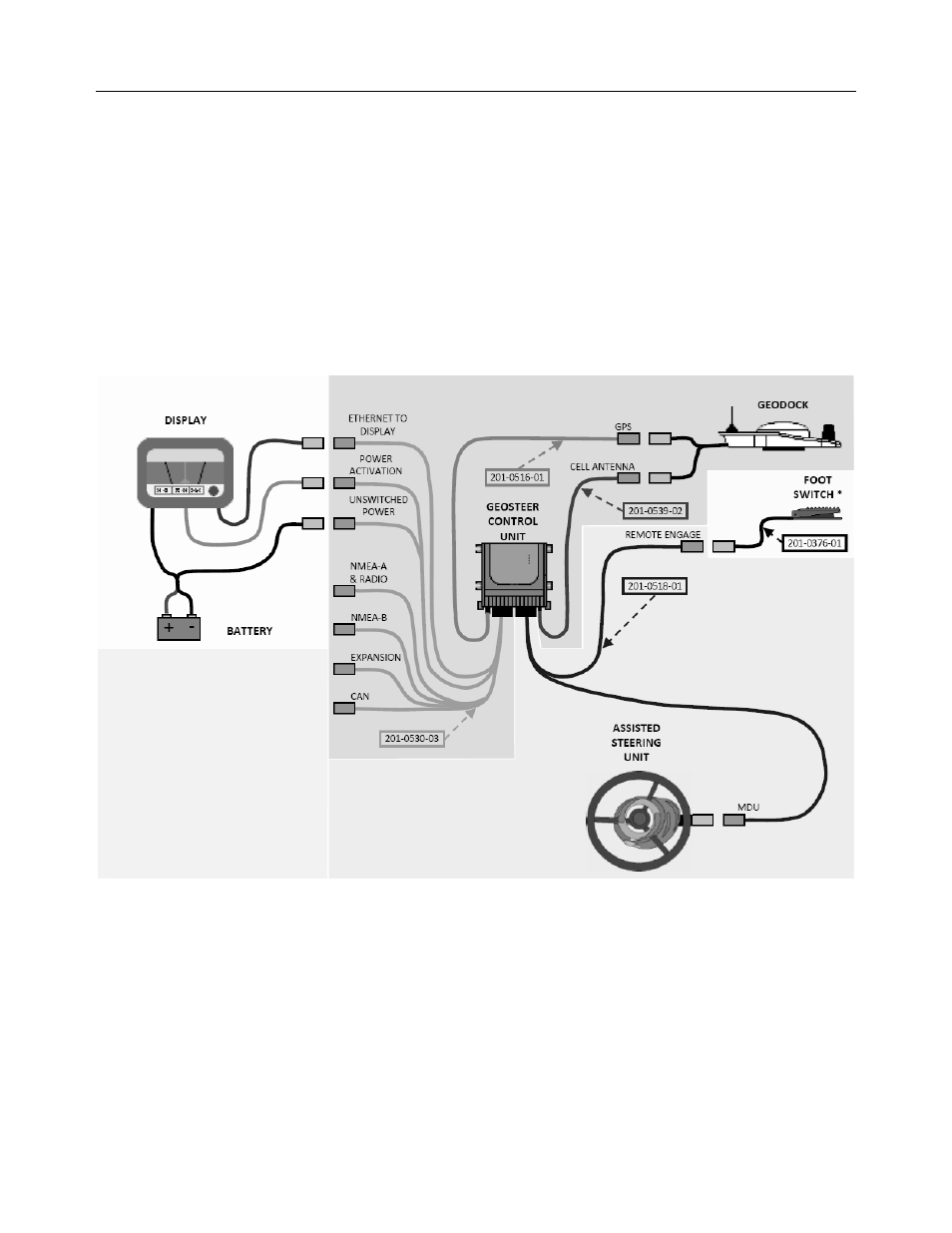

Assisted Steering Unit Installation Example

• Cell Antenna Coax Cable (PN 201-0539-02) is not required if not using a Cell Modem.

• Foot Switch (PN 201-0376-01) is an optional accessory component.

• GeoSteer can be connected to multiple models of Displays. Refer to the Display User Manual for more detailed instructions

on how to connect the GeoSteer to the Display data and power ports.

• Component definitions

• DISPLAY – The Display that is connected to the GeoSteer system

• BATTERY – The battery terminals for the power source for the GeoSteer system and Display

• GEOSTEER CONTROL UNIT – The GeoSteer Control Unit

• GEODOCK – The GeoDock unit mounted on the roof

• FOOT SWITCH* – The optional Foot Switch that can be used for Remote Engage (not necessary for installation)

• ASSISTED STEERING UNIT – The Assisted Steering Unit mounted to the steering wheel of the vehicle

Figure 8-2 Assisted Steering Unit Installation Example
