GeoDock Installation
Hardware Installation Guide 15
GeoDock Installation
1. Remove the GeoDock Mounting Plate from the installation kit. The plate will have four pieces of high bond tape on the
bottom of it that will be used to hold the plate to the top of the vehicle roof.
Note: Notice the three tabs that are used to center the GeoDock when attached to the plate. The two tabs should always be
on the left side of the machine.

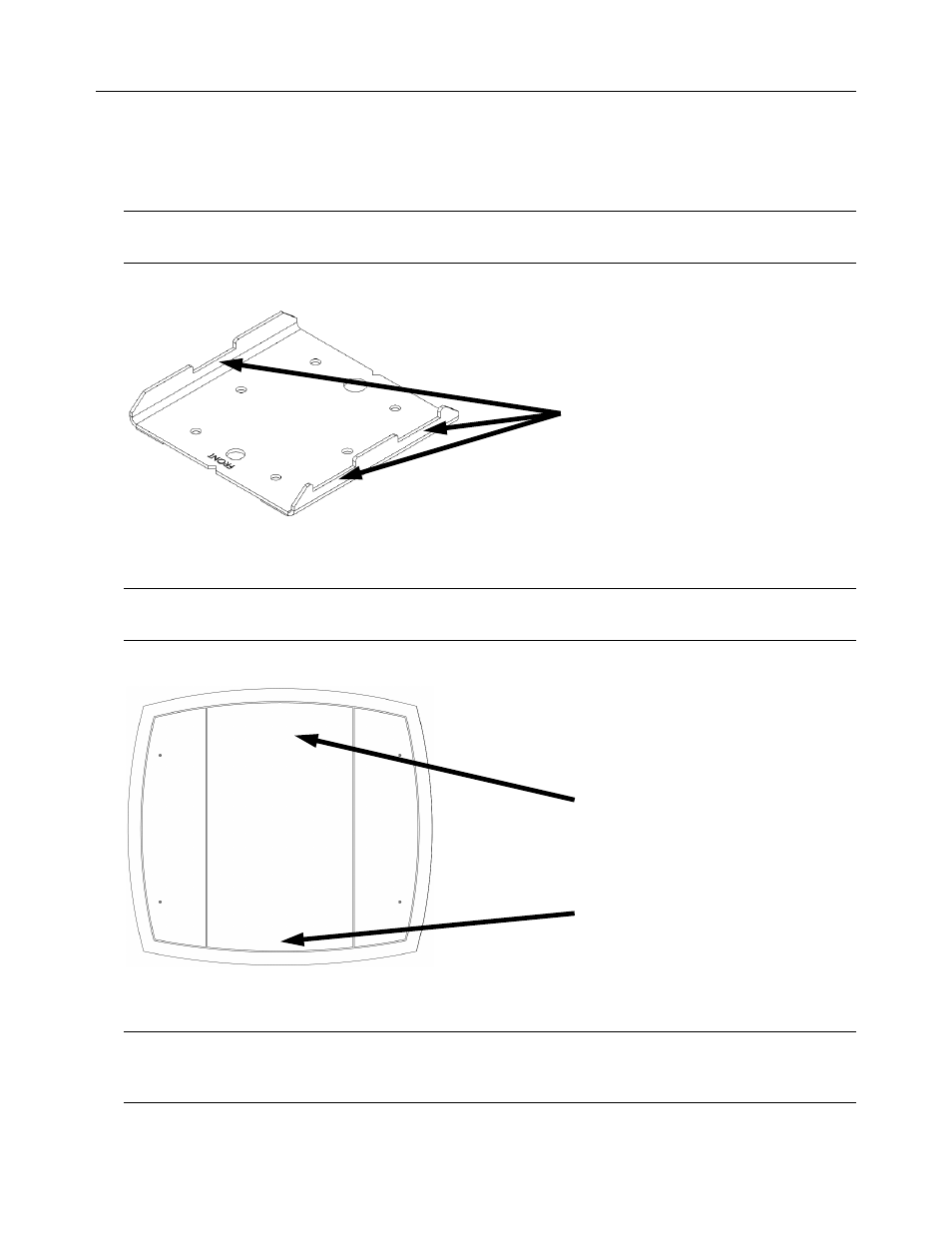

Figure 5-2 GeoDock Mounting Plate
2. Locate a flat area at least 10 inches by 20 inches (25 cm by 50 cm) along the center line of the cab roof.
Note: If a solid flat location cannot be found, it may be necessary to build a mounting bracket to allow the GeoDock
Mounting Plate to be mounted firmly. The plate has mounting holes for securing to the vehicle or a bracket when required.
Figure 5-3 Locate Flat Area on Cab Roof
3. Thoroughly clean the area on the roof with soap and water to remove ALL dirt.
Note: Cabs with a great deal of oxidation or texture may require more abrasive cleaning methods to achieve a clean
surface. When necessary, use a scour pad such as Scotch-Brite to thoroughly clean the surface until it is smooth and free
of contaminants.
Flat Area along Centerline of Vehicle
Self Centering Tabs
Rear of Cab
