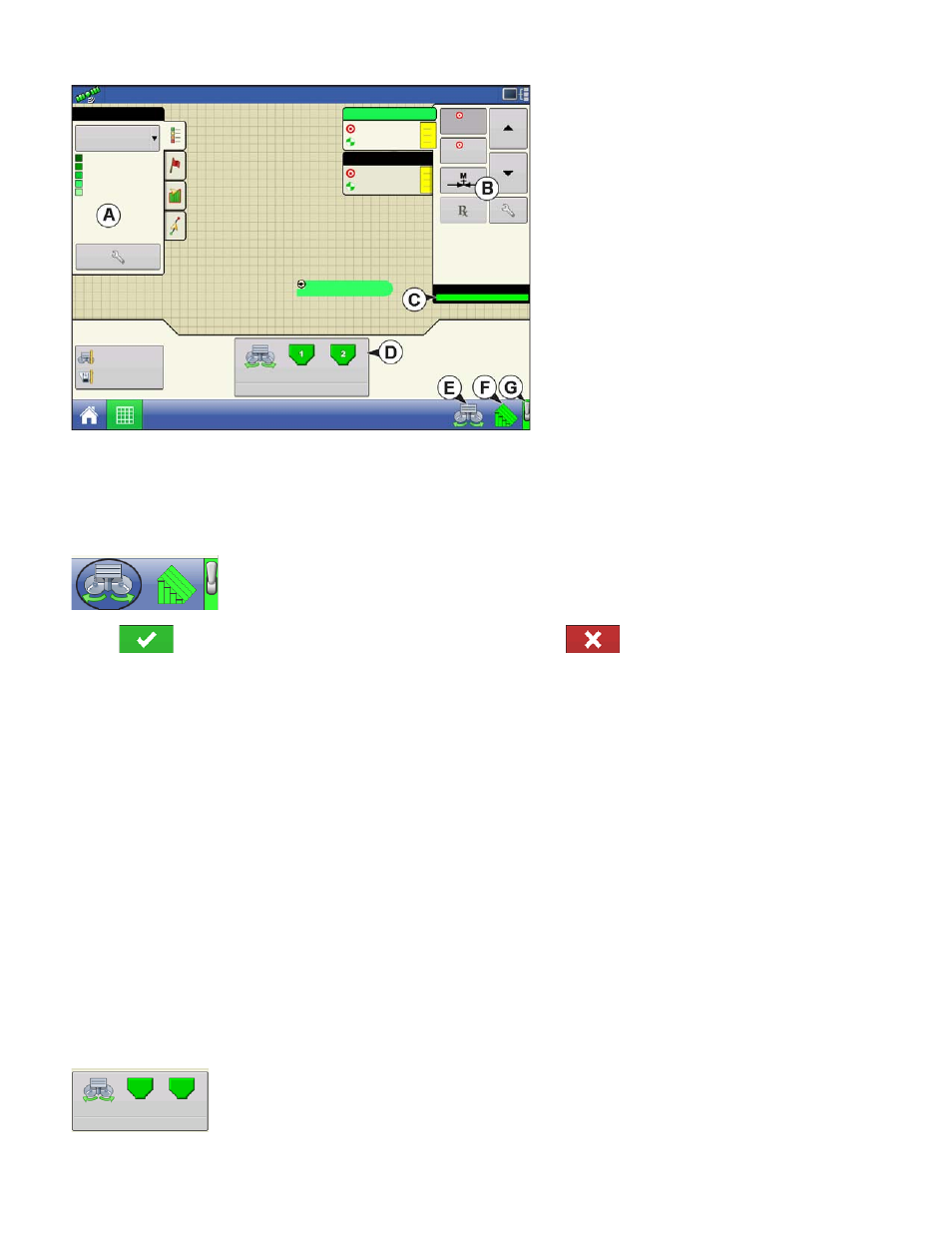

• (A) Mapping Toolbox
• (B) Product Control Toolbox
• (C) Conveyor Indicator
• (D) Spreader Control button
• (E) Spinner Automatic Control
• (F) AutoSwath
• (G) Master Switch Status (on)
A
UTOMATIC
S
PINNER
C
ONTROL
To turn Automatic Control functionality On/Off in the configuration setup see
.
Turn Spinners on/off by pressing the Spinner Icon located in the Task Bar. After
pressing the Spinner Icon, a warning will appear alerting user the spinners will turn
on and to remain clear of equipment.
Press
to turn spinners on and clear warning dialog. Press
to keep spinners from running
and clear warning dialog.
S
PINNER
S
PREADER
,
WITH
TWO
-
BIN
CONFIGURATION
• Spreader Control button
Displays the status of the product control channel. The Conveyor Speed (in RPM) is shown underneath the
bin icon; the Spinner Speed (also in RPM) is shown at bottom. Press the Spreader Control button to display
the Spreader Control screen and settings. These settings include Spread Width, Spinner Speed (if enabled),
Product Density, Feed Gate Opening, and Conveyor Rate. For more information, see section beginning at
“Spreader Control screen” on page 295
.
• Conveyor Indicator
The Conveyor Indicator is shown at the bottom of the Product Control toolbox when the Map screen is
shown in Zoom to Extent. When the Map screen is shown in the Zoom to Details view or Perspective View,
the conveyor indicator is shown as a bar that appears behind the vehicle icon.
R
UN
T
IME
O
PERATIONS
During Run Time Operations, Spinner Spreader operators can press the Spreader
Control button to open the Spreader Control screen. At this screen, you can adjust
Spread Width, Spinner Speed, Product Density and other settings.
