84 Firmware Version 5.4

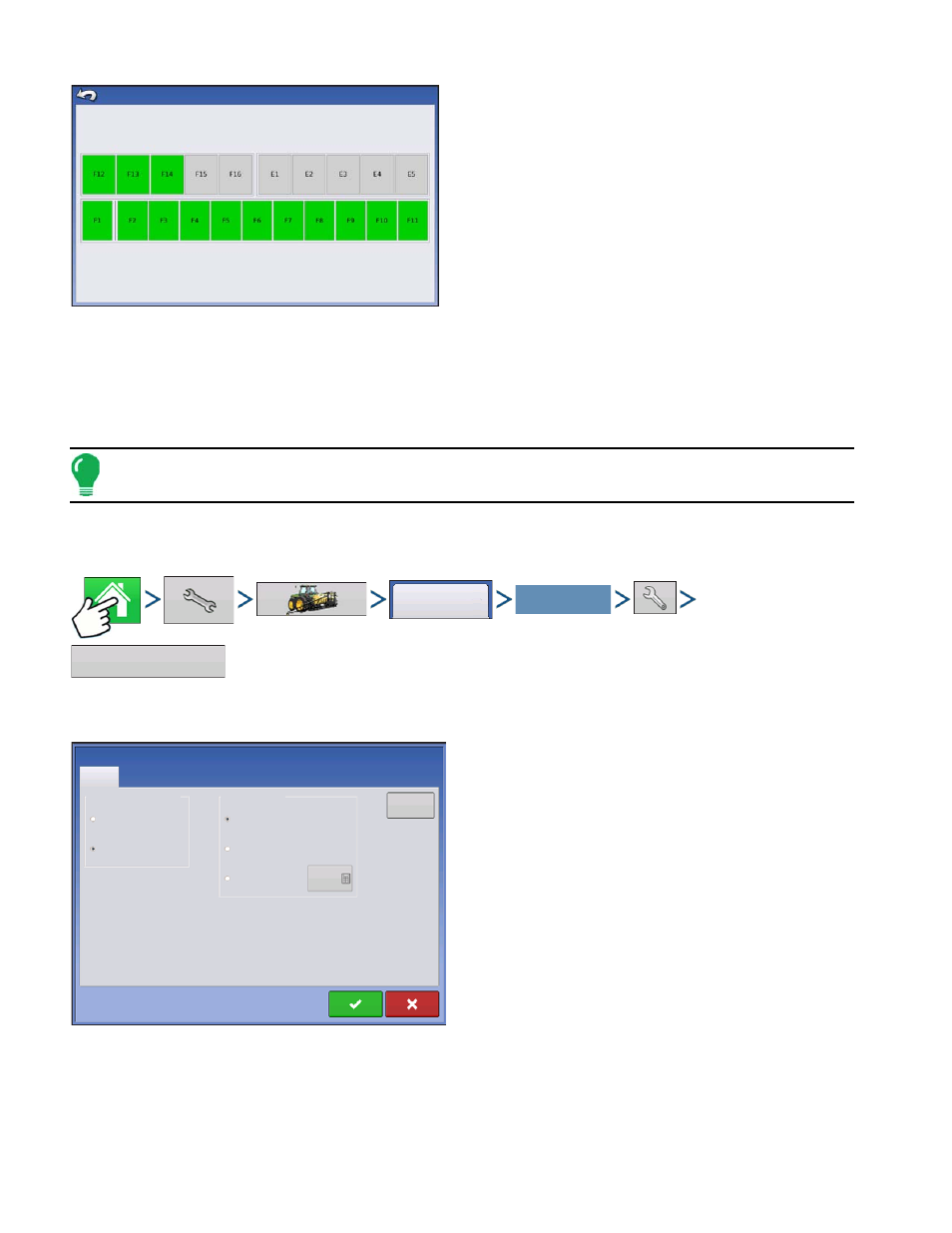

The Auxiliary Input Diagnostics screen lists the active
switches. These color-coded boxes display the
following diagnostics:
• Green
The switch box is connected to the Auxiliary Module in
the On position.
• Black
The switch box is connected to the Auxiliary Module, but
is in the Off position.
• Grey
The switch box is not connected to the Auxiliary Module.
Below the list of switches is the number of Ground Speed Pulses coming in from the radar to the
Auxiliary Module.
Technical support may request that you look at this screen for help in diagnosing a problem.
Note: The E2 position is the indicator for the foot box.
A
UTO
S
WATH
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Configuration tab > select
your specific configuration > Setup (wrench) button > Automatic Swath Control button
The Automatic Swath Control feature turns sections
off and on automatically based upon the following
conditions:
• Entering and exiting internal and outer field
boundaries.
• Entering and exiting previously-applied areas within a
field.
• Outside Boundary Option
Select one of the two options to determine system behavior when a section exits a field boundary.
• Coverage Option
In the Coverage Option area, you must choose between three options:
Ground Speed Pulses 0
Auxiliary Input Diagnostic
Configuration
Select Your Specific
Configuration
Automatic
Swath Control
Automatic Swath Control
Look-Ahead
Settings
100 % User Defined
Minimize Overlap
Minimize Skip
Coverage Option
Planting
Outside Boundary Option
Keep Unchanged
Turn Section Off
