290 Firmware Version 5.4

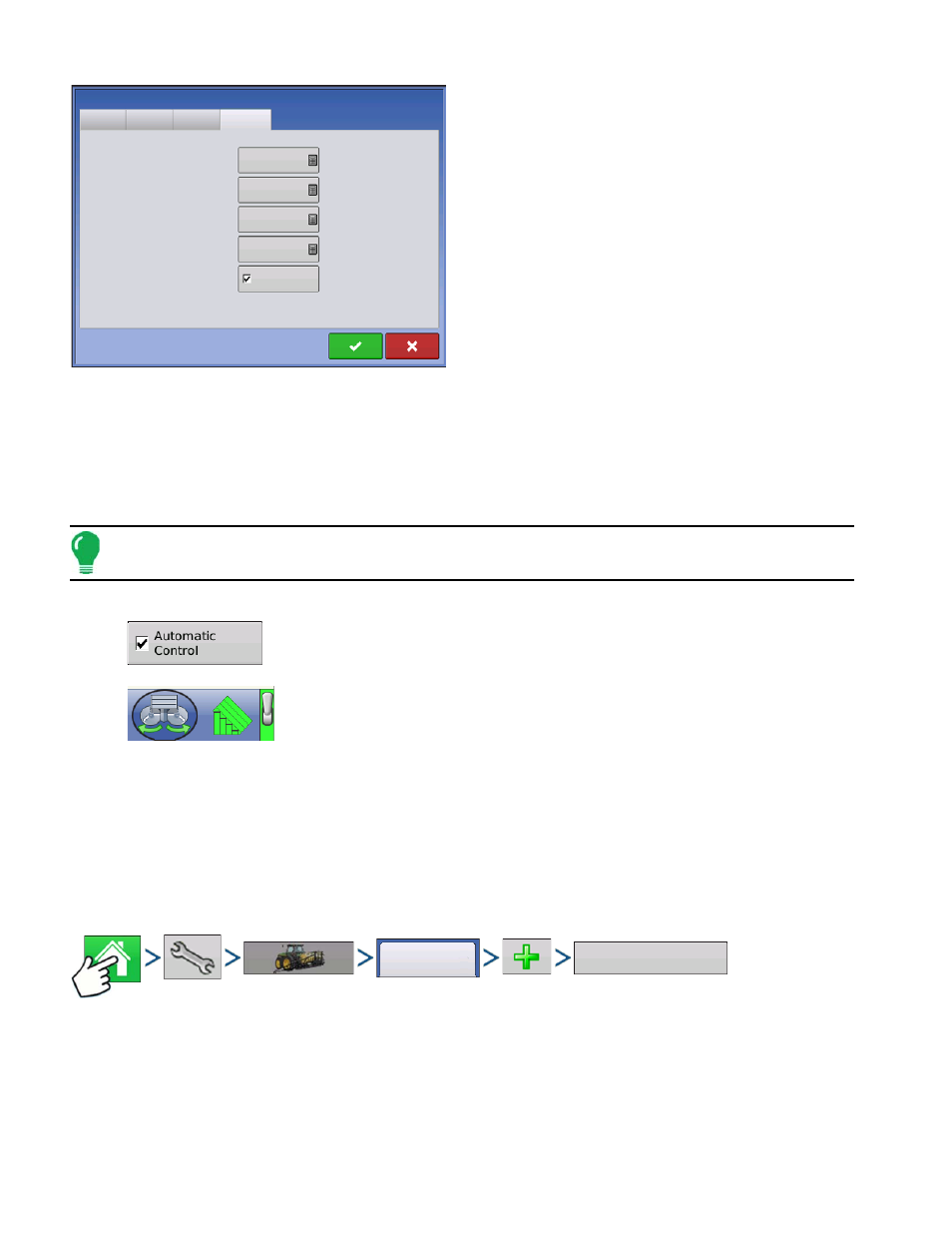

• Fan Speed Calibration
The number of pulses that are generated by the sensor
during one revolution of the spinner dish. The default
setting is 4.
• PWM Gain
Determines how aggressively the control valve
responds when making spinner speed adjustments. The
higher the value the more aggressive the system
response is. The default setting is 20.
• PWM Frequency
The frequency that the PWM control valve is pulsed at.
Settings can be found from the manufacturer of the
valve. Typical settings range from 100-125 Hz. The
default setting is 100.
• Zero RPM Offset
Represents the maximum duty cycle that is sent to the control valve without producing any hydraulic flow
from the PWM valve. Using too high of a Zero RPM Offset value can cause the spinner system to not
properly shut off. The default setting is 30.
Note: See the PWM valve manufacturer information for recommended settings.
• Automatic Control
Checking this box enables closed loop spinner control.
Beginning with the 5.4 display firmware upgrade, checking the Automatic Control
check box exposes a Spinner Icon in the Task Bar that allows user to turn on/off
spinners from the Map Screen. Automatic Control default setting is unchecked.
C
REATING
P
RODUCTS
Creating application products including dry fertilizer blends can be completed upon initial setup or from
the Product Selection screen of the Field Operation Wizard when starting a field operation.
CREATING SINGLE PRODUCTS
To create a single product, to be added to a blend or to be applied by itself, use the on-screen wizard
described in the following steps.
Press: Home button > Setup (wrench) button > Configuration (tractor) button > Product tab > Add (+)
button > Application Product button
1. Select Product Type
Use drop-down menu to select Product Type.
Use drop-down menu to select Product.
Spreader Control
Channel 1 Channel 2 Channel 3 Spinner
Fan Speed
Calibration
PWM
Gain
PWM
Frequency
Zero RPM
Offset
Automatic
Control
4 pls/rev
20
100 Hz
30
Product
Application
Product
