210 Firmware Version 5.4

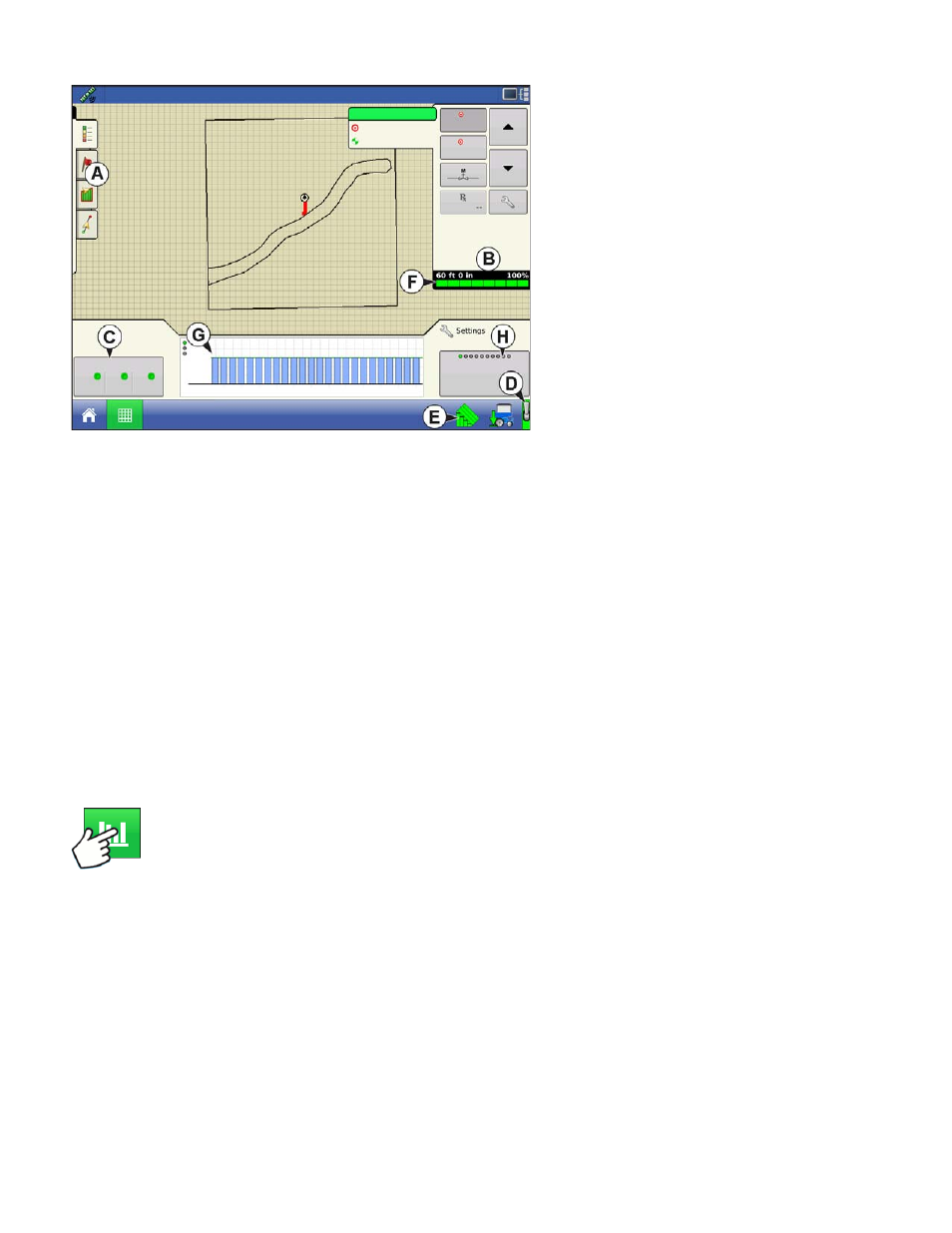

Shown is an example of a KINZE Planter
Monitor Module (PMM) with Row Shutoff
and three Hydraulic Seed Control drives.
• (A) Mapping toolbox
• (B) Product Control toolbox
• (C) Meter RPM button
Appears at the bottom left hand side of the
Map screen, displays the number of
hydraulic seed control motors and their
speed, shown in Revolutions Per Minute
(RPM). Pressing the Meter RPM button
summons the Seed Rate Planter Control
screen, to calibrate and prime the seed
meters. For more information, see
“Priming
Seed Rate Meters” on page 171 and
“Calibrating Seed Rate Meters” on page 172 .
• (D) Master Switch Status
• (E) AutoSwath indicator
• (F) Section Indicators
Shown at the bottom of the Product Control Toolbox when the Map screen is shown in Zoom to Extent.
When the Map screen is shown in the Zoom Details view or Perspective View, the section indicators are
shown as a bar that appears behind the vehicle icon.
• (G) Population Monitor Bar Graph
Shows the number of row units as well as the instantaneous percentage planter average of seeds being
distributed on each row unit.
• (H) Shaft Speed
Displays the speed of the planter drive shafts, in RPM. Other KINZE PMM Map screen items are described
at
“KINZE Planter Monitor Options” on page 207 and also “KINZE Display Items on Equipment Tab” on
page 209 .
Planter Monitor Module screen
Press: Bar Graph button. The Planter Monitor Module screen displays information on
machine performance.
Swath: 40 ft 0 in
29000
30000
30000
30000
sds/ac 1
2
5.0
mph
1
Flow: 10560 sds/min
Applied: 9064.0 sds
Area: 0.33 ac
546R1
100%
38.4
ac
Population: 30000 sds/ac Spacing 30 in
Shaft Speed Planter Drives (rpm)
Settings
1 2 3
77 72 72
Outer Left
2 4 6 8 10 12 14 16 18 20 22 24 Inner Left
120 %
100 %
80 %
60 %
