Component Identification
1-10 HP StorageWorks Modular Smart Array 500 System User Guide

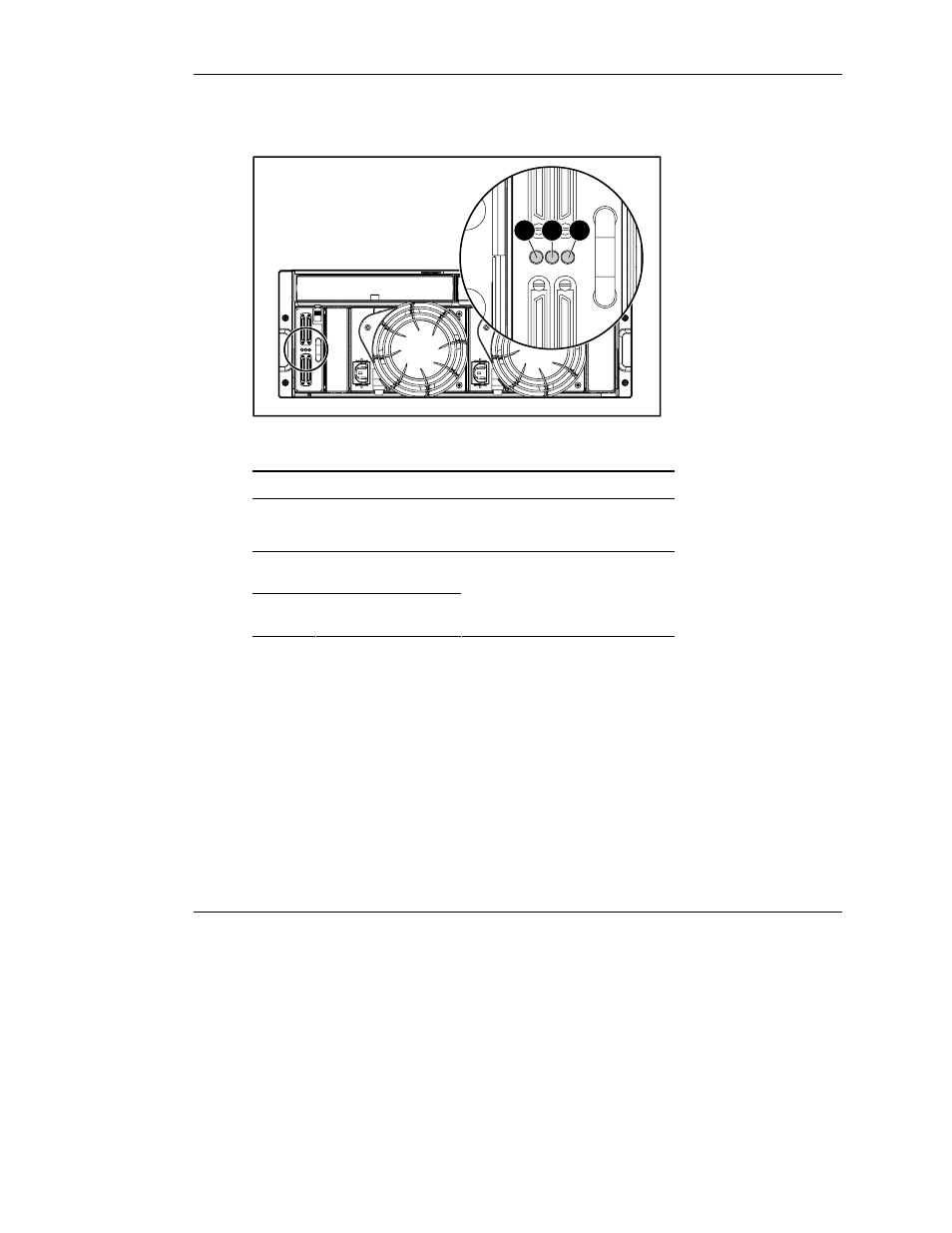

4-Port Shared Storage Module LEDs
1 2 3
Table 1-7: 4-Port Shared Storage Module LEDs
Item LED Description Status
1 Power Green = Power on
Off = Power off
2 SCSI host port A
connectors 1 and 2
3 SCSI host port B
connectors 1 and 2
Flashing green = On/Activity
Off = Off
