HP Surestore 6164 Switch - Manual (Page 87)

Web Tools User’s Guide 4-15
Switch View
4
Use the Configure Thresholds tab to view and configure End-to-End thresholds for the
Performance class currently selected in the organizational tree on the left side of the window.
Note: You must define the SID/DID pair through the Performance Monitor before you can
monitor the threshold in the End-to-End class. For more information on the Performance
Monitor, see Performance Monitor on page 4-17 of this document, or the Performance
Monitor User’s Guide.

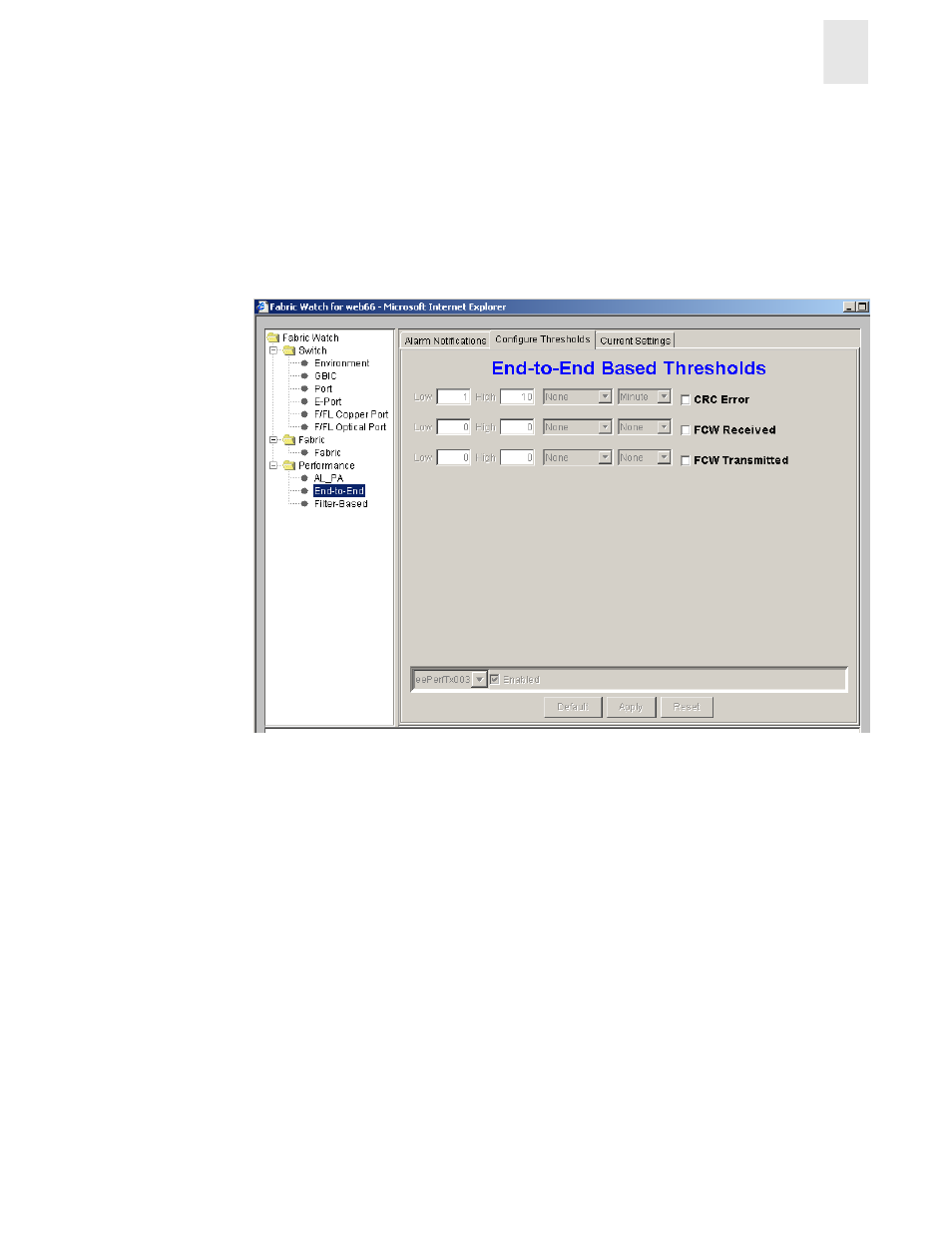

The Configure Thresholds tab for End-to-End Thresholds is shown in Figure 4-12.
Figure 4-12 Configure Threshold tab with End-to-End class selected in Performance
View
