3-2 Web Tools User’s Guide
Fabric View
3
Web Tools launches, displaying Fabric View in detailed view as shown in Figure 3-1. The
Fabric View consists of two logical parts:
• Control Panel
• Switch Panel
Control Panel Switch Panel

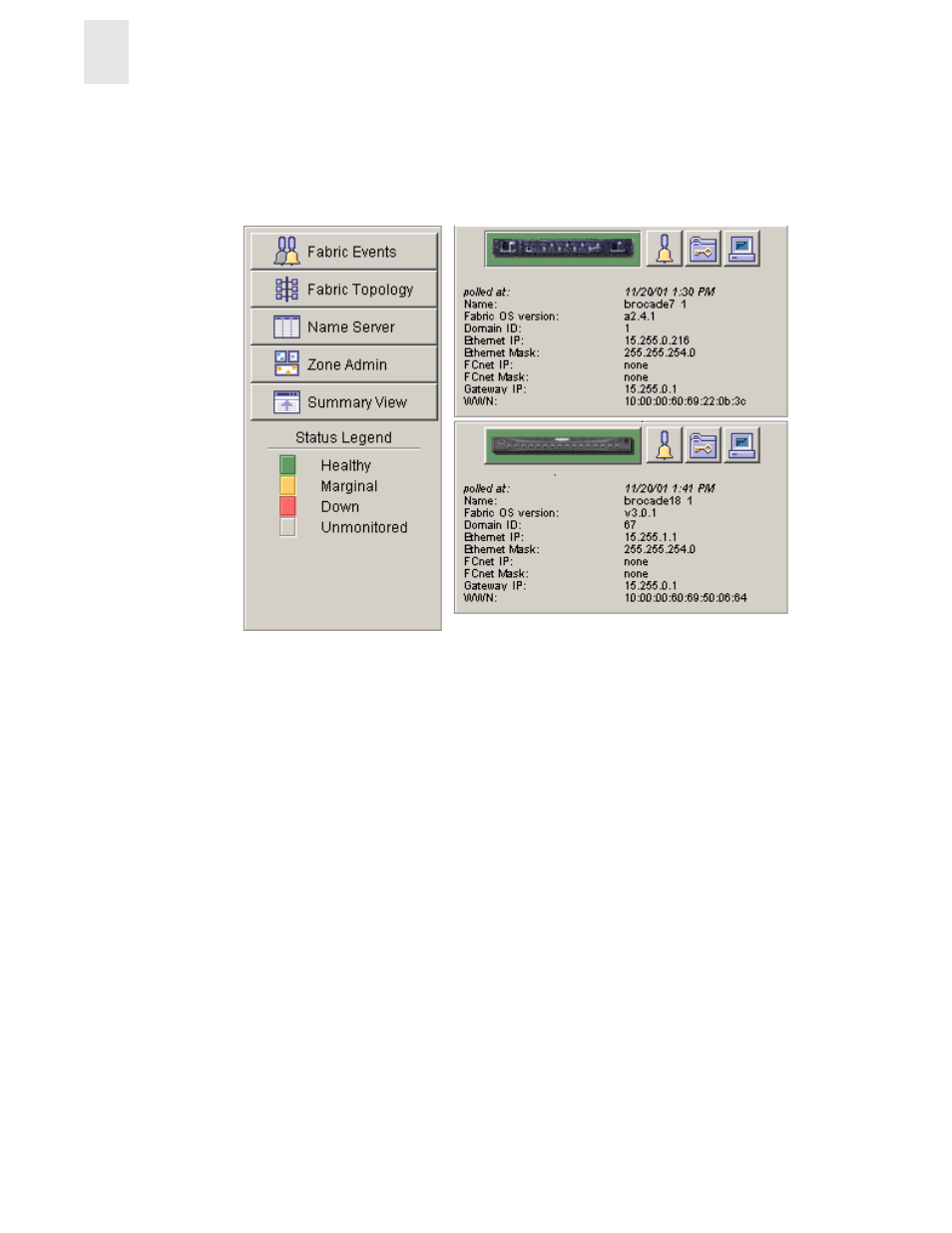

Figure 3-1 Detailed View of Fabric View
To see the Summary view of the Fabric View, select the Summary View button on the left side of
the Fabric View.
Control Panel Switch Panel
