Fabric View
3
Fabric Topology View
The Fabric Topology View summarizes the physical configuration of the fabric from the
perspective of the “local domain” (the domain of the switch entered as a URL in the Web browser).
This includes information about the “destination domains” (all other domains in the fabric) and the
paths between each destination domain and the local domain.
To access Fabric Topology View:
1. Launch Web Tools launches, displaying Fabric View.
2. Select the Fabric Topology icon.
For more information, see Button and Icons that appear in Fabric View on page 3-3.
The Fabric Topology View displays, as shown in Figure 3-4.

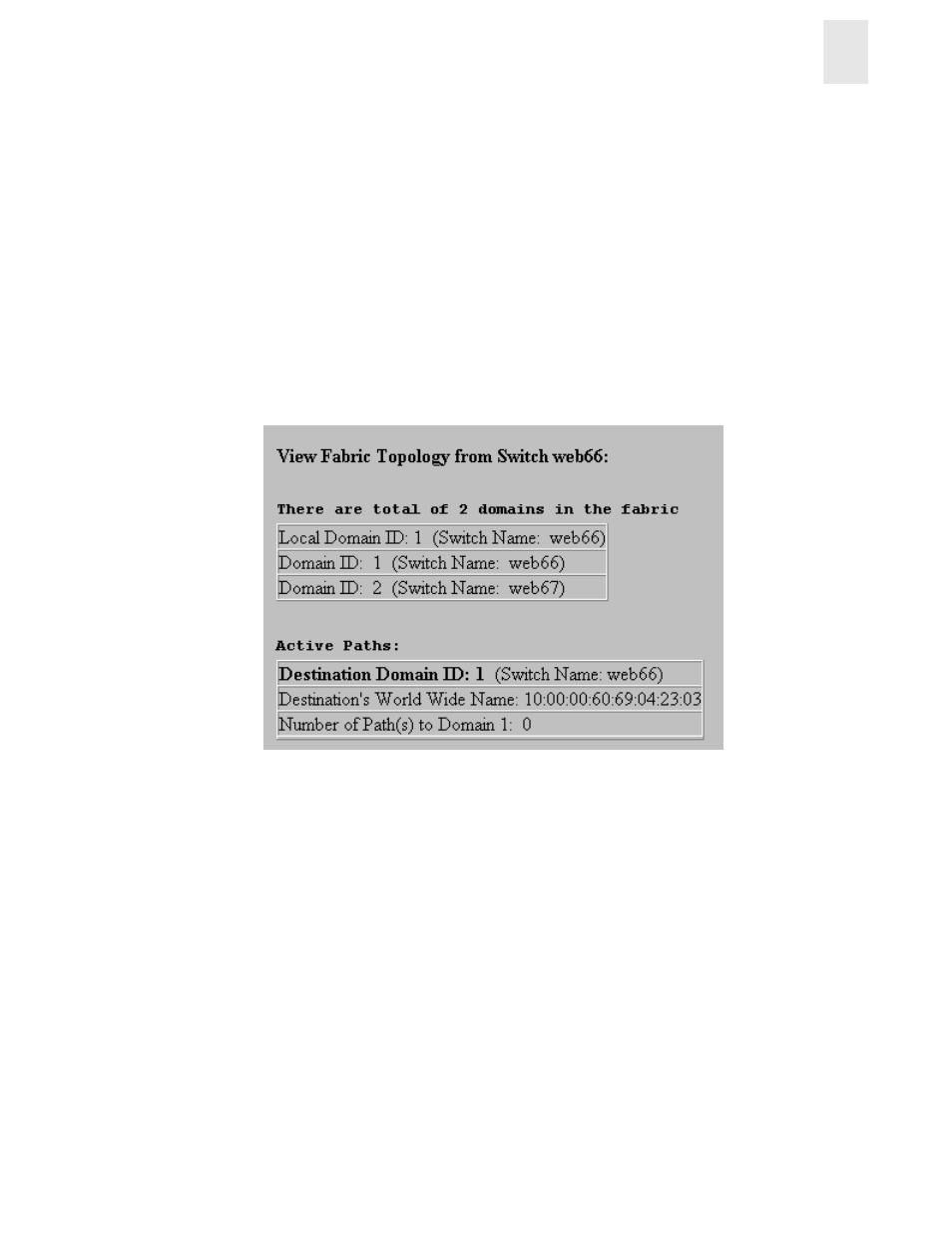

Figure 3-4 Fabric Topology View
