Web Tools User’s Guide 3-33
Fabric View
3
AL_PA Level Zoning
AL_PA Level Zoning is a replacement for QuickLoop Zoning. With AL_PA Level Zoning, only
members of a QuickLoop can be a member of the zone. Zone members are specified through their
AL_PA. Upon selecting the AL_PA Level Zoning button from the Zoning Selection window and
clicking OK, the AL_PA Level Zoning menu with the AL_PA Device Alias tab displays.
Figure 3-18 shows a typical AL_PA Device Alias tab of the AL_PA Zoning window.
Following is a list of the tabs provided in the AL_PA Level Zoning menu:
• Device Alias
• Device Zone
• QuickLoop
• Device Config
AL_PA Device Alias
Use the AL_PA Device Alias tab to create and manage QuickLoop configurations. QuickLoop
configurations are used to enable or disable a group of zones at the same time.
The AL_PA Device Alias tab is shown in Figure 3-18.

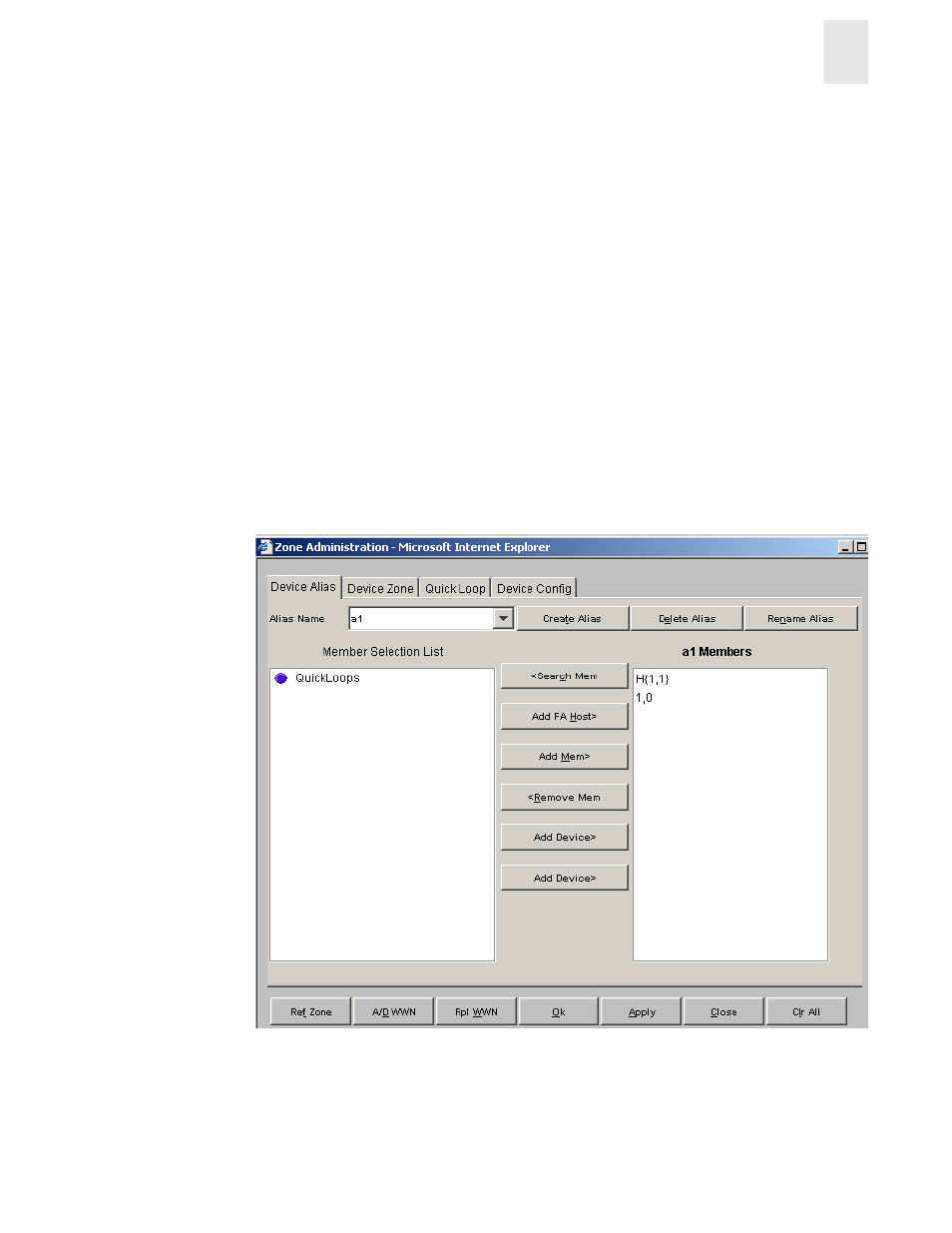

Figure 3-18 AL_PA Device Alias tab of the AL_PA Level Zoning menu
