NOTE:
The maximum value that can be entered is the largest value that will not allow the pattern to
exceed the size of the Design Page.
The minimum value is 1 mm (0.04 inch).

See also:

“Select System Unit” on page 196

■

Numerical Setting-Rotate

Purpose:

Rotates the selected pattern numerically.

Shortcut key:

No shortcut key for this function

Toolbar:

No button for this function

Operation:

Select one or more patterns.

Click

Edit

, then

Numerical Setting

, then

Rotate

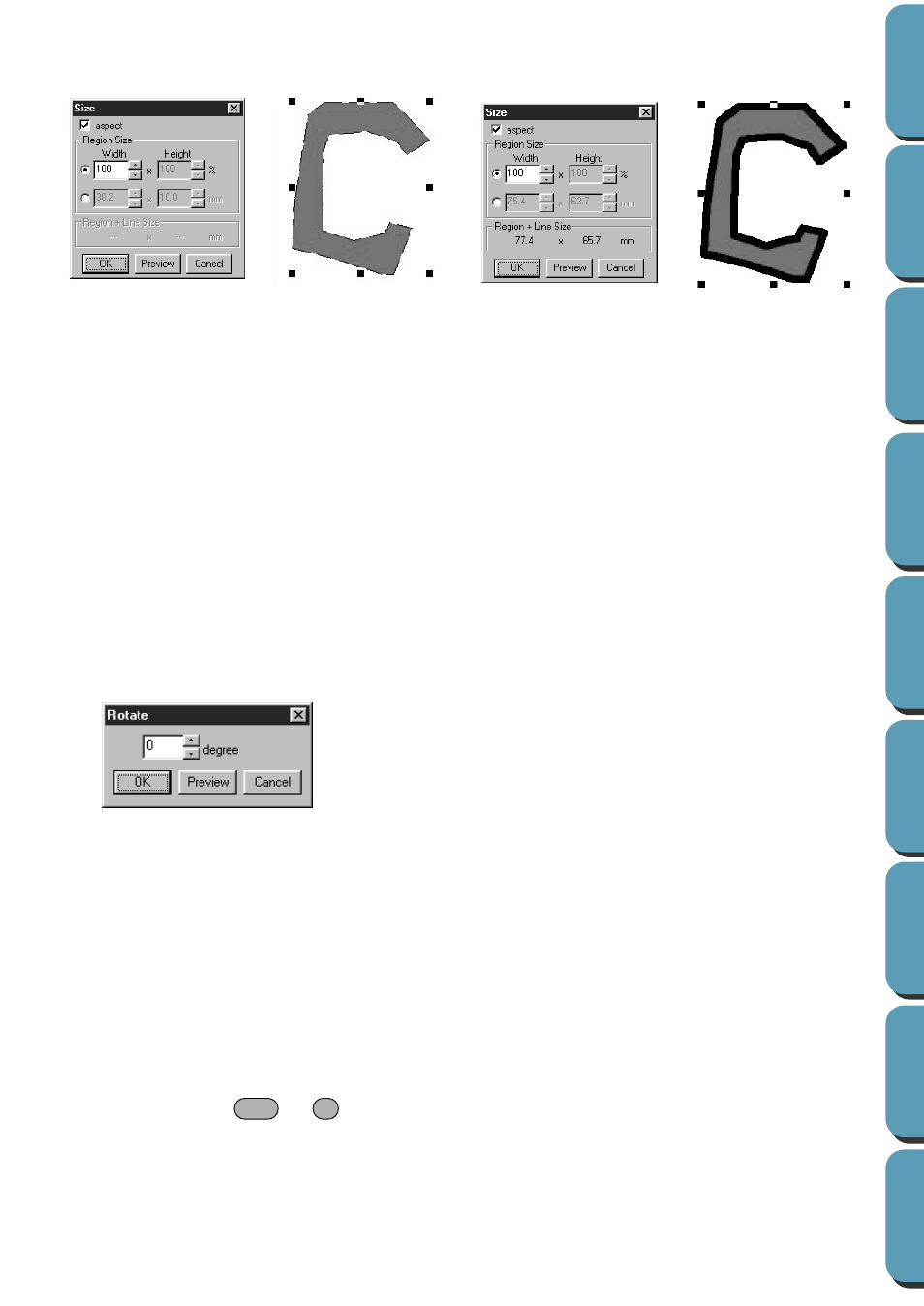

The

Rotate

dialog appears.

NOTE:
The range of values that can be entered is between 0 and 359 degrees, in 1degree increments.

■

Center

Purpose:

Moves the selected object to the center of Design Page.

Shortcut key:

Toolbar:

No button for this function

Operation:

Select one or more objects.

◆

The desired rotation angle can be entered
by either typing in a value or clicking the
arrows to select the desired value.
Select

0 degree

to leave the pattern

unchanged.

◆

Click

to confirm.

◆

Click

Preview

to view the pattern rotated

the specified angle in the Design Page.

◆

Click

Cancel

to exit without making any

changes.

Region (without line)

Region + line

Ctrl
