Figure 1-2. bop output characteristics, Bop output characteristics -14 – KEPCO BOP 1KW-MG Operator Manual, Firmware Ver.2.01 to 2.37 User Manual
Page 32
1-14
BOP HIPWR 022108
pating energy from an active load. To minimize energy dissipation, the BOP employs energy
recuperation, where energy sinked from an active load is passed backwards through the output
circuit and the bidirectional input power factor correcting circuit to the a-c power lines, where it
becomes available for reuse. This technology allows high power levels using switch-mode tech-
nology while maintaining high efficiency and reduced size and weight.

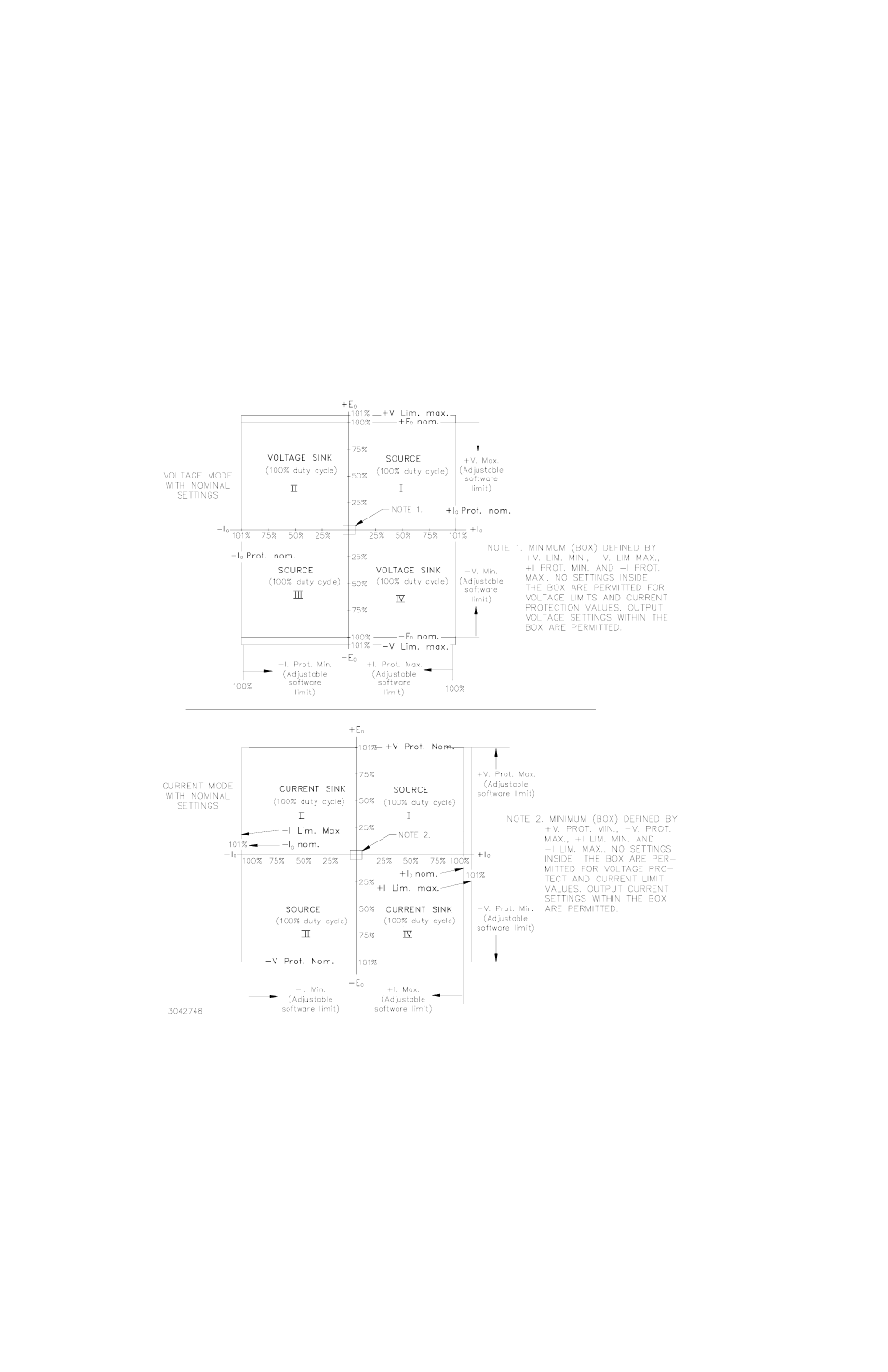

FIGURE 1-2. BOP OUTPUT CHARACTERISTICS
