BOP-1K 022108
4-11
1. From the power-up screen, press % to enter the General Setup menu, then highlight Cali-
bration and press ! .
2. Enter the password (see PAR. 3.2.4.4), and press ! , The LCD shows main calibration
screen (Figure 4-3) which includes explanations for the following function keys:
•
!
- VOLTAGE - Selects the voltage calibration of the BOP.
•
@
- CURRENT - Starts the calibration for the BOP in current mode.
•
#
- EXTRL CONTROLS - Selects input and output signal calibration used for multiple
units and the external protection.
•
$
- SAVE - Save New Calibration Setting. The information in the DATE field is saved
with the Calibration.
• % or ENTER - EXIT

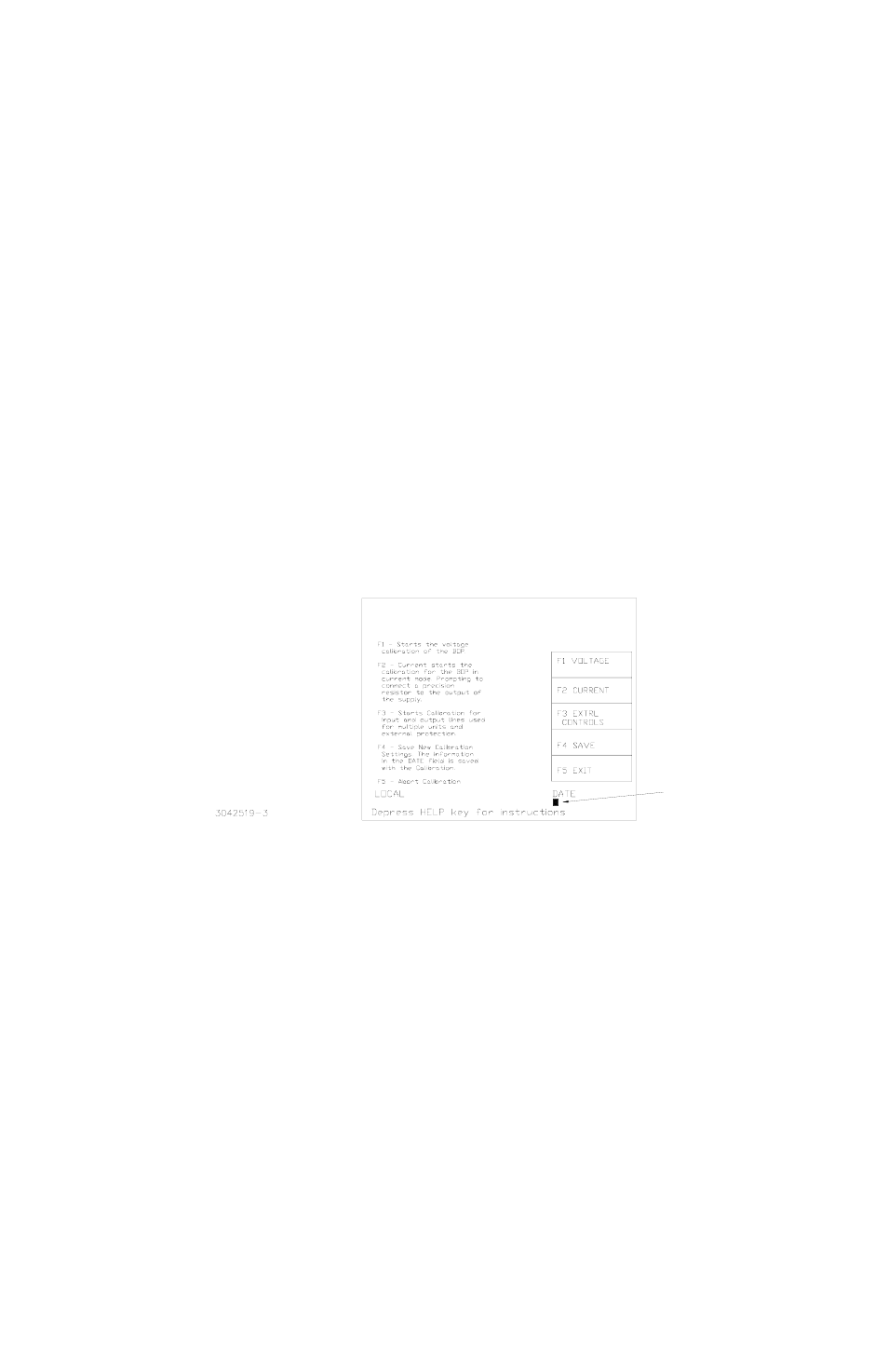

FIGURE 4-3. MAIN CALIBRATION SCREEN
3. Press either ! or @ to initiate Voltage or Current calibration, respectively. To calibrate
multiple units refer to the Instruction Manual Included with the associated parallel or series
connection cable kit. The LCD shows the explanations for the following function keys:
• ! - INTERNAL - Selects the voltage calibration of the BOP.
• @ - GAIN - Starts the calibration of the external gain mode of the power supply.
• # - EXTERNAL - Starts the external reference calibration.
•
$
- PROTECT - Starts the protection limits calibration of the power supply.
VOLTAGE
SOURCE
VOLTAGE*Ref Only*CURRENT
0.0000 0.0000
CALIBRATION MODE
DATE FIELD
