GDS-1000A Series User Manual
90
Remote Control Interface
The Remote control interface section describes how to set up the
USB interface for PC connection. Remote control command details
are described in the GDS-1000A Programming Manual. Note that
printing to a PictBridge compatible printer and remote control
cannot be supported at the same time as the same USB port is used.
USB connection PC / Printer end Type A, host
GDS-1000A end Type B, slave
Speed 1.1/2.0 (full speed)

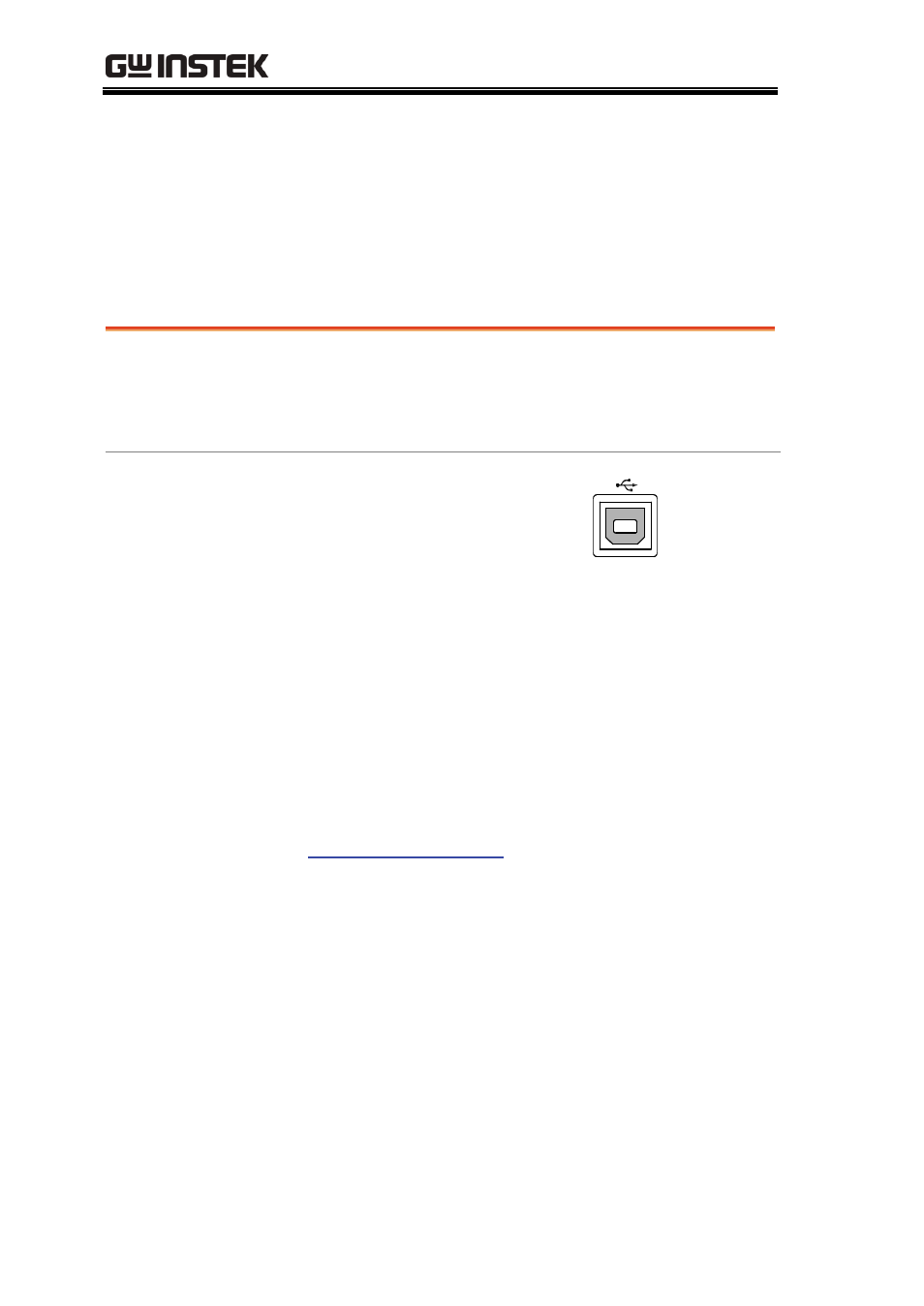

Procedure 1. Connect the USB cable to
the USB slave port.
2. The USB port may need to
be configured if the USB
port is not automatically
detected.
Page89
3. When the PC asks for the USB driver, select
dso_cdc_1000.inf (Windows XP) or
dso_vista_cdc.inf (Vista 32bit) which are
downloadable from the GW website,
www.gwinstek.com , GDS-1000A product
corner.
4. On the PC, activate a terminal application such
as MTTTY (Multi-Threaded TTY). To check the
COM port No., see the Device Manager in the
PC. For WindowsXP, select Control panel →
System → Hardware tab.
