CONFIGURATION
79

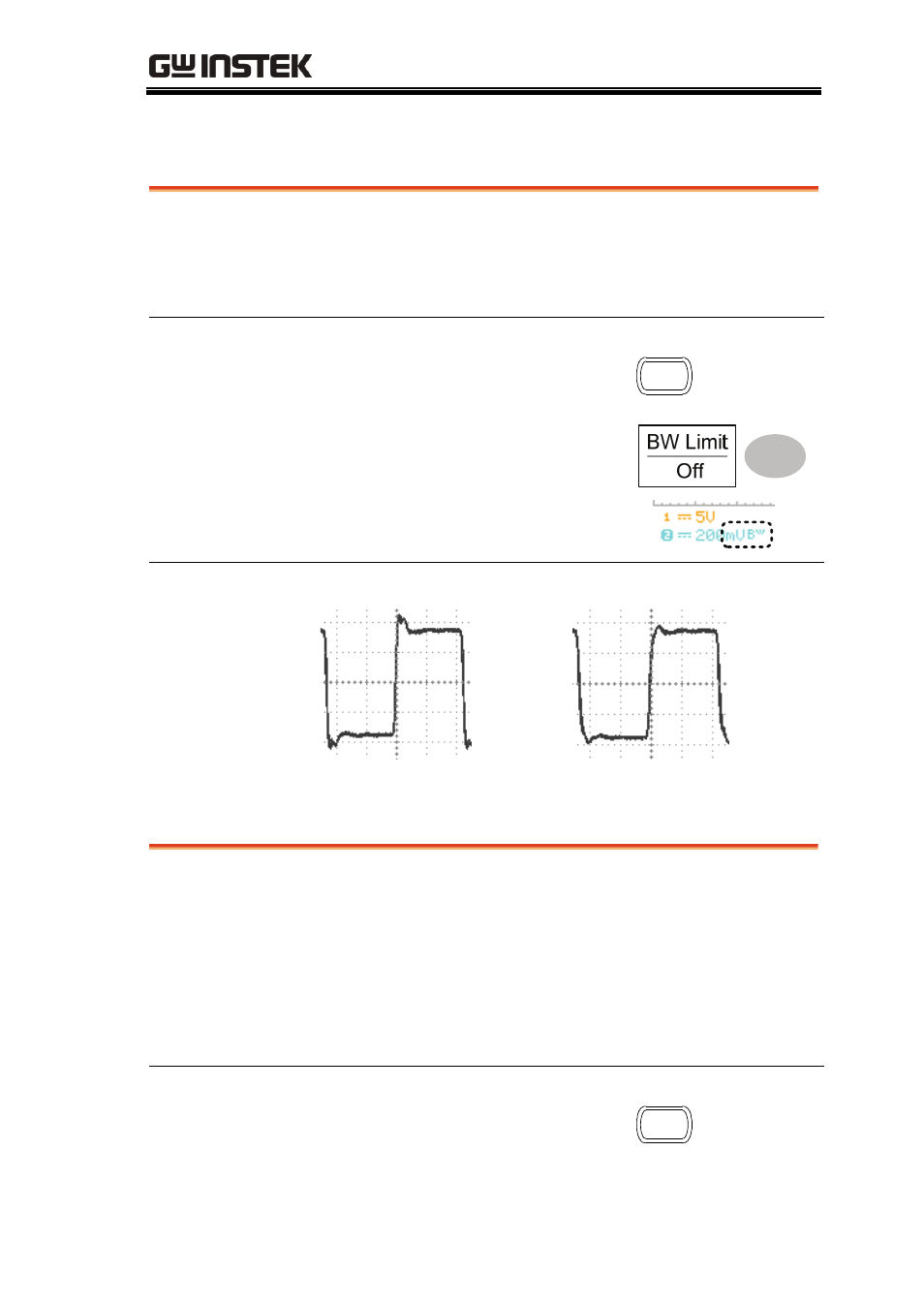

Limiting the waveform bandwidth
Background Bandwidth limitation puts the input signal into a
20MHz (−3dB) low-pass filter. This function is
useful for cutting off high frequency noise to see
the clear waveform shape.
Procedure 1. Press the Channel key. CH 1
2. Press BW Limit to turn on or
off the limitation. When
turned on, the BW indicator
appears next to the Channel
indicator in the display.
Example BW Limit Off BW Limit On
Probe attenuation level and type
Background The probe can be set to either voltage or current.
A signal probe has an attenuation switch to lower
the original DUT signal level to the oscilloscope
input range, if necessary. The probe attenuation
selection adjusts the vertical scale so that the
voltage or current level on the display reflects the
real value, not the attenuated level.
Procedure 1. Press the Channel key. CH 1
