Waveform
operation Waveforms can be moved or scaled in both the
Run and Stop mode. For details, see page70
(Horizontal position/scale) and page76 (Vertical
position/scale).

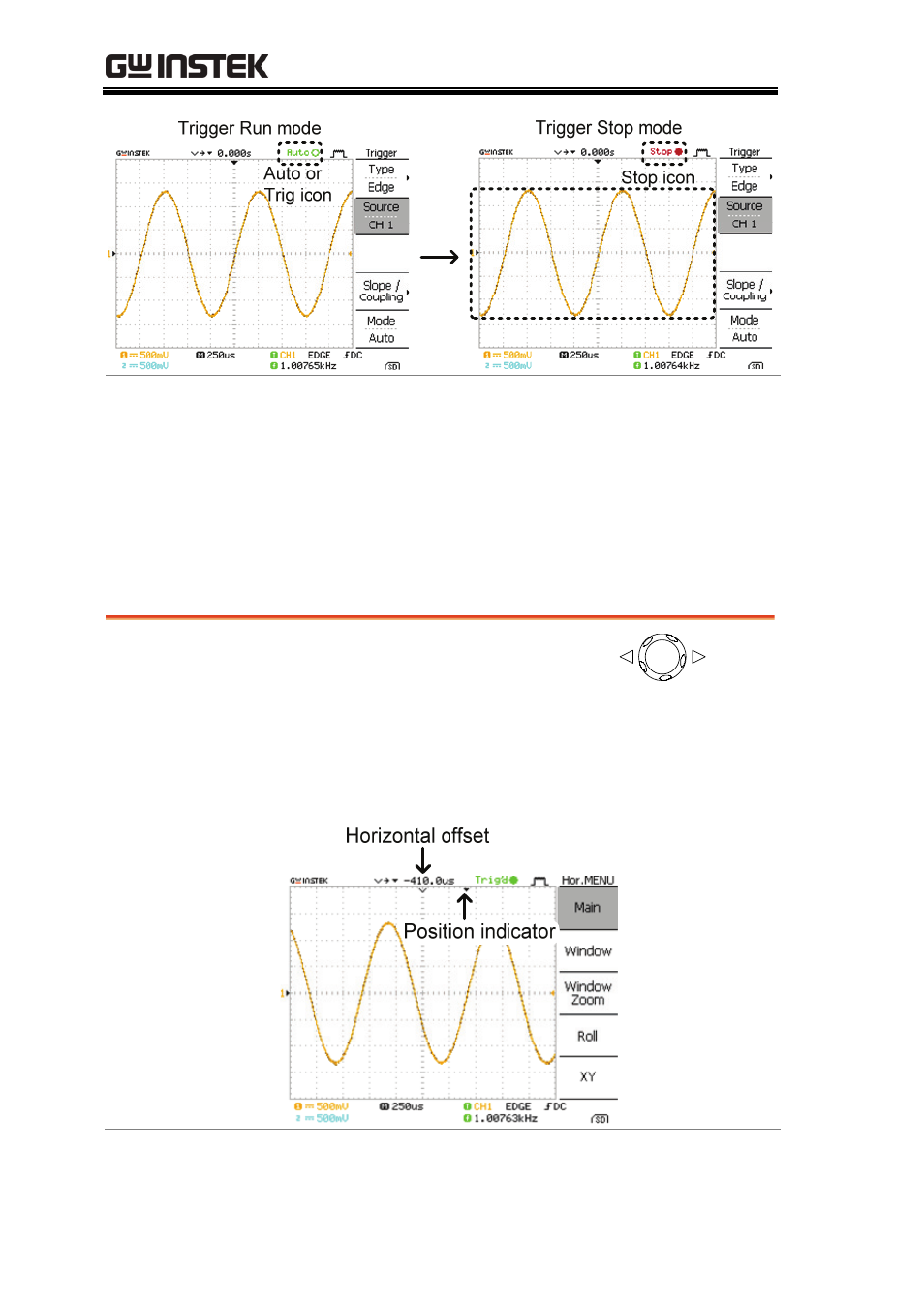

Changing the horizontal position and scale
For more detailed configurations, see page70.
Setting the
horizontal
position The horizontal position knob
moves the waveform left or right.
The position indicator moves along with the
waveform and the distance from the center point is
displayed as the offset in the upper side of the
display.
