GDS-1000A Series User Manual

108

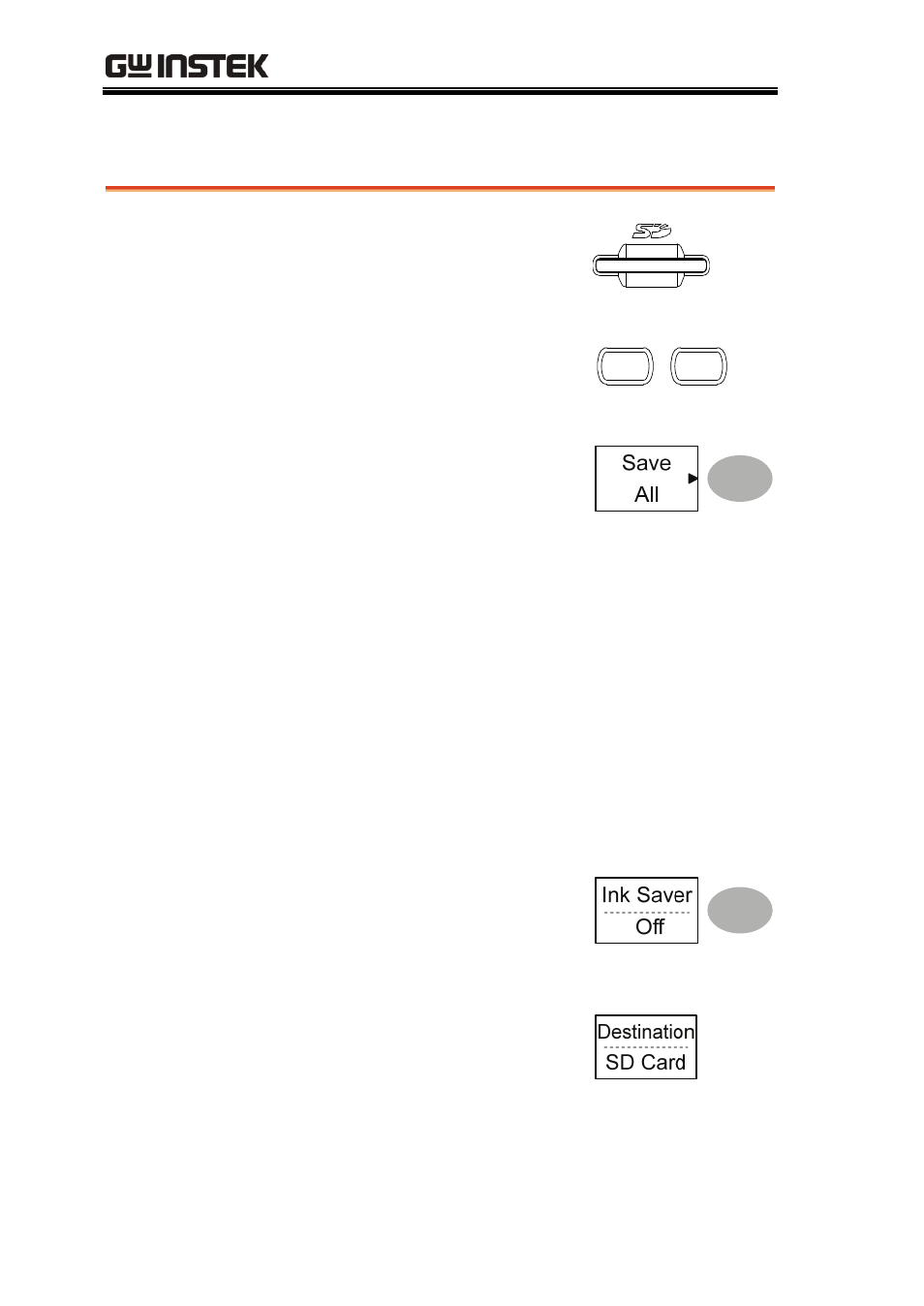

Saving all (panel settings, display image, waveform)

Procedure

1. (For saving to an external

SD card) Insert the card into
the slot.

2. Press the Save/Recall key

twice to access the Save
menu.

Save/Recall

Save/Recall

3. Press Save All. The following

information will be saved.

Setup

file

(Axxxx.set)

Two types of setups are saved:
the current panel setting and
the last internally saved
settings (one of S1 ~ S15).

Display


(Axxxx.bmp)

The current display image in
the bitmap format.

Waveform

data

(Axxxx.csv)

Two types of waveform data
are saved: the currently active
channel data and the last
internally saved data (one of
W1 ~ W15).

4. Press Ink Saver repeatedly to

invert the background color
(on) or not (off) for the
display image.

5. Press Destination.

SD

Normal

Save to the SD card with a 4k
waveform memory length.
