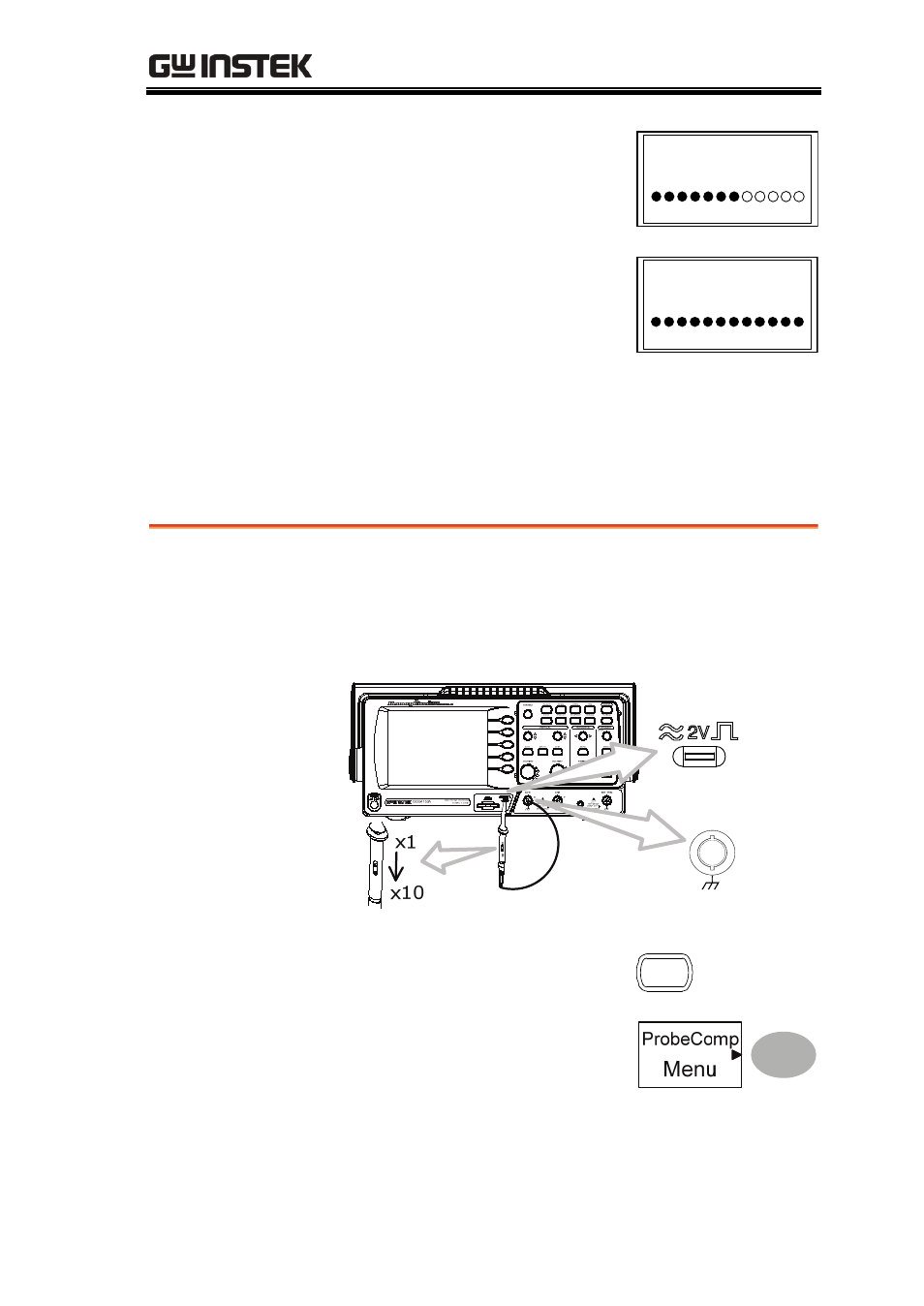

MAINTENANCE

121

7. The Channel1 calibration

will complete in less than 5
minutes.

Ch1 calibration 1/3

8. When finished, connect the

calibration signal to the
Channel 2 input and repeat
the procedure.

Done!!

9. When the calibration is complete the display

will go back to the previous state.

Probe Compensation

Procedure

1. Connect the probe between the Channel1 input

and the probe compensation output (2Vp-p,
1kHz square wave) on the front panel. Set the
probe voltage attenuation to x10.

CH1

2. Press the Utility key.

Utility

3. Press ProbeComp.
