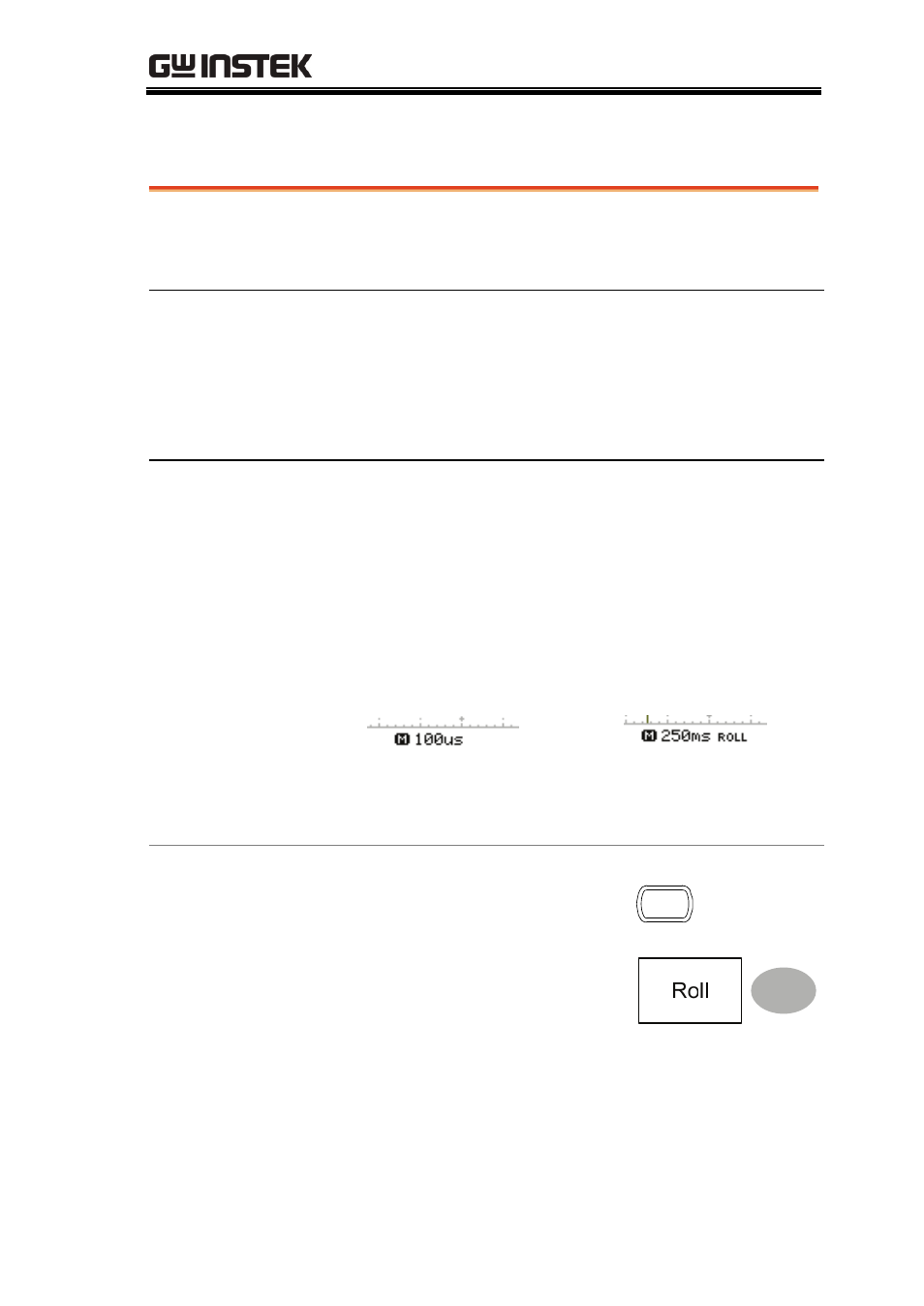

background image

CONFIGURATION

71

Selecting the waveform update mode

Background

The display update mode is switched
automatically or manually according to the
horizontal scale.

Main mode

Updates the whole displayed waveform at once.
The main mode is automatically selected when the
horizontal scale (timebase) is fast.

Horizontal

scale

≤100ms/div

Trigger

All modes available

Roll mode

Updates and moves the waveform gradually from
the right side of the display to the left. The Roll
mode is automatically selected when the
horizontal scale (timebase) is 250ms or slower.
When in the Roll mode, an indicator appears at the
bottom of the display. When in roll mode the
record length is 2M (1 channel) or 1M (2 channel).

Main

mode

Roll mode

Timebase

≥250ms/div (≤250KS/s)

Trigger

Auto mode only

Selecting the Roll
mode manually

1. Press the Horizontal menu

key.

MENU

2. Press Roll. The horizontal

scale automatically becomes
250ms/div and the
waveform starts scrolling
from the right side of the
display (If the oscilloscope
is already in the Roll mode,
there will be no change).
