SAVE/RECALL

115

File utilities

To edit the SD card contents
(create/ delete/ rename files
and folders), press File Utilities.
For details, see page98.

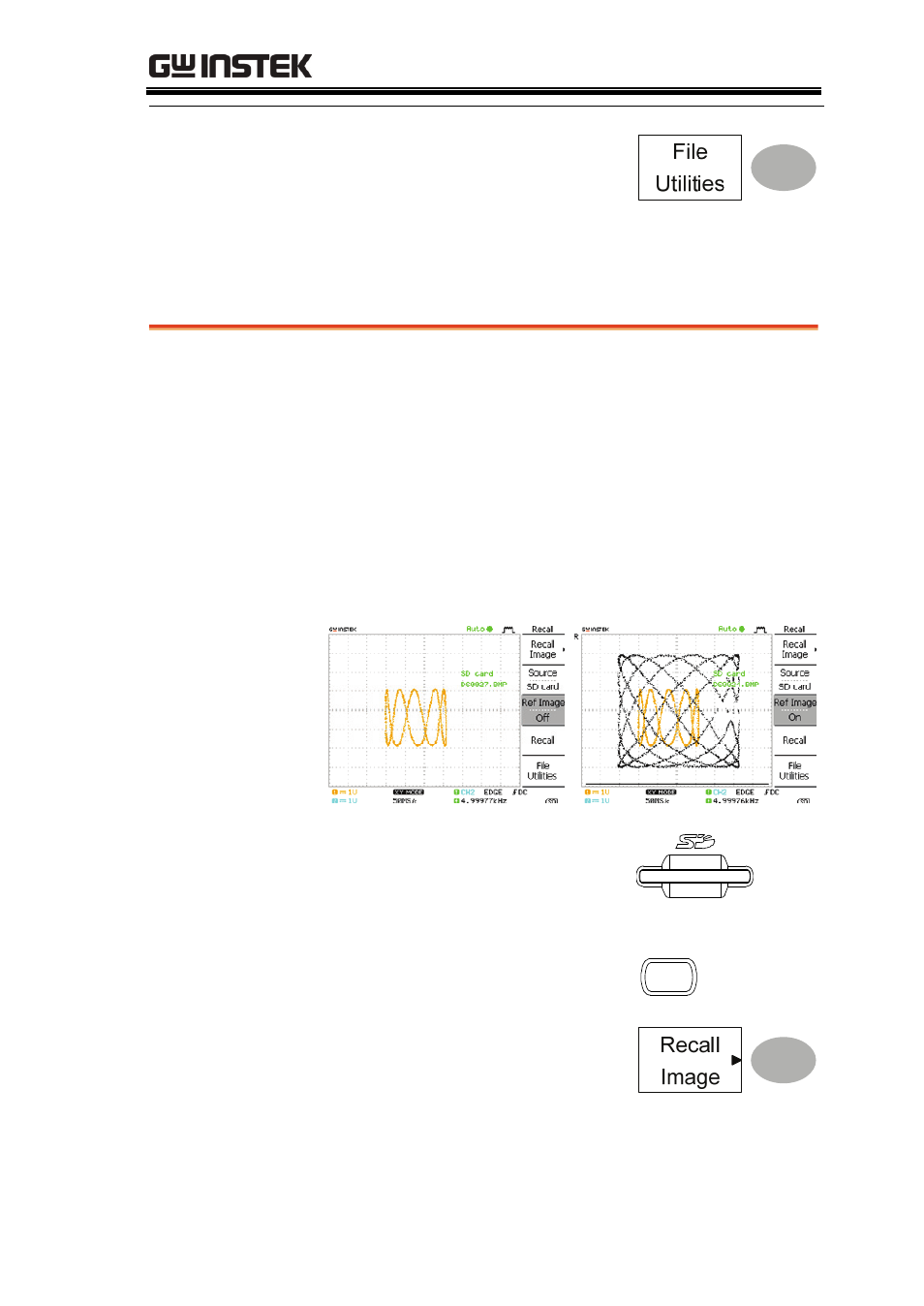

Recall Image

Background

Recall Image is useful for recalling reference
images that would not be possible using the Recall
Waveform function, such as in X-Y mode. Using
the Recall Image function will superimpose the
reference image on the screen.

Before recalling an image, an image must first be
saved to an SD card, see page106.

Reference

off

Reference on

Procedure

1. Insert an SD card into the

slot to recall from SD
memory.

2. Press the Save/Recall key.

Save/Recall

3. Press Recall Image. The

display shows the available
source and destination
options.
