GDS-1000A Series User Manual
48

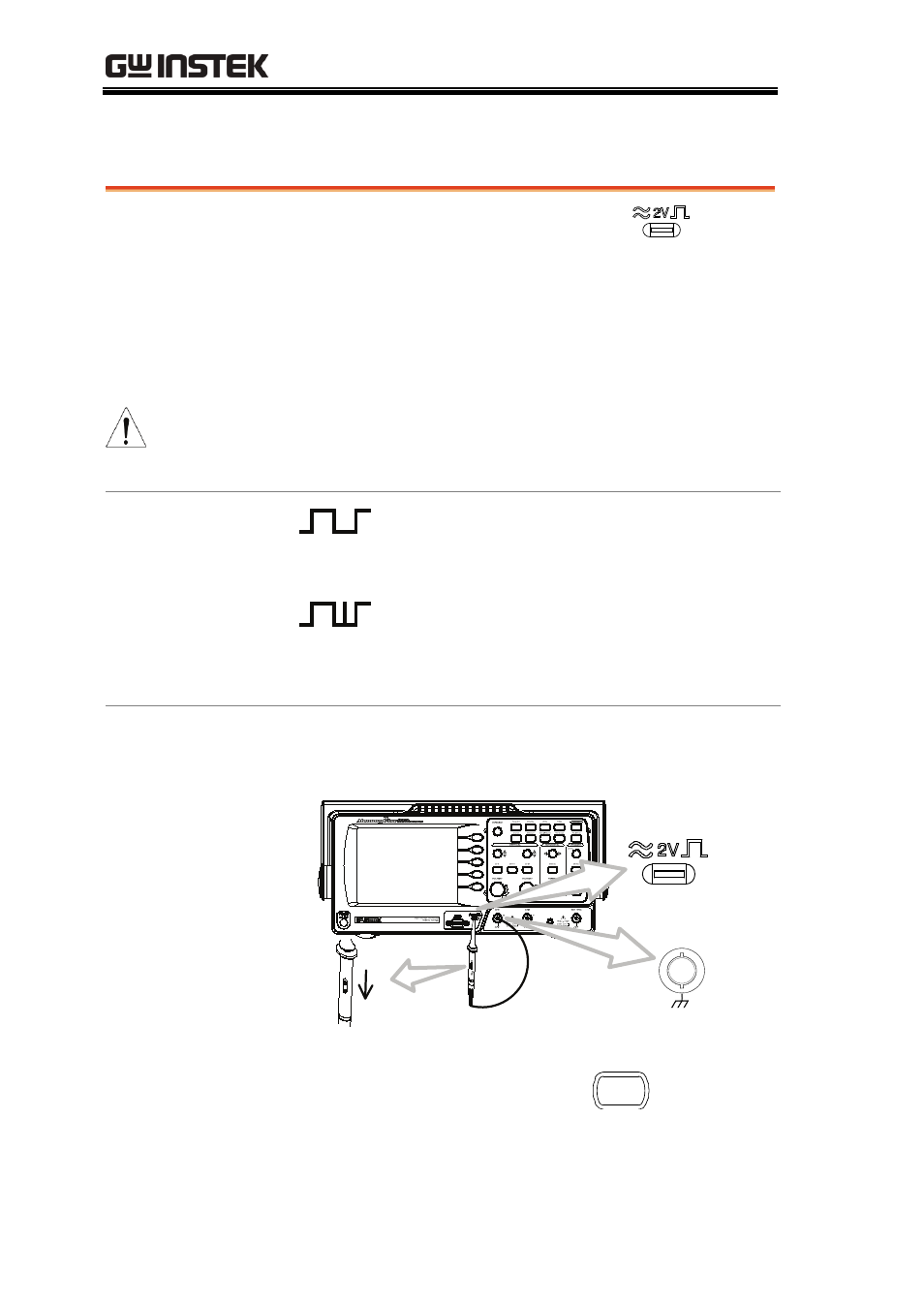

Using the probe compensation signal
Background This section introduces how to use
the probe compensation signal for
general usage, in case the DUT
signal is not available or to get a
second signal for comparison. For
probe compensation details, see
page121.
Note: The frequency accuracy and duty factor are
not guaranteed. Therefore the signal should not be
used for reference purposes.
Waveform type Square waveform used for probe
compensation. 1k ~ 100kHz, 5% ~
95%.
Demonstration signal for showing
the effects of peak detection. See
page63 for peak detection mode
details.
View the probe
compensation
waveform 1. Connect the probe between the compensation
signal output and Channel input.
GDS-1152A
CH1
x1
x10
2. Press the Utility key. Utility
