GDS-1000A Series User Manual

24

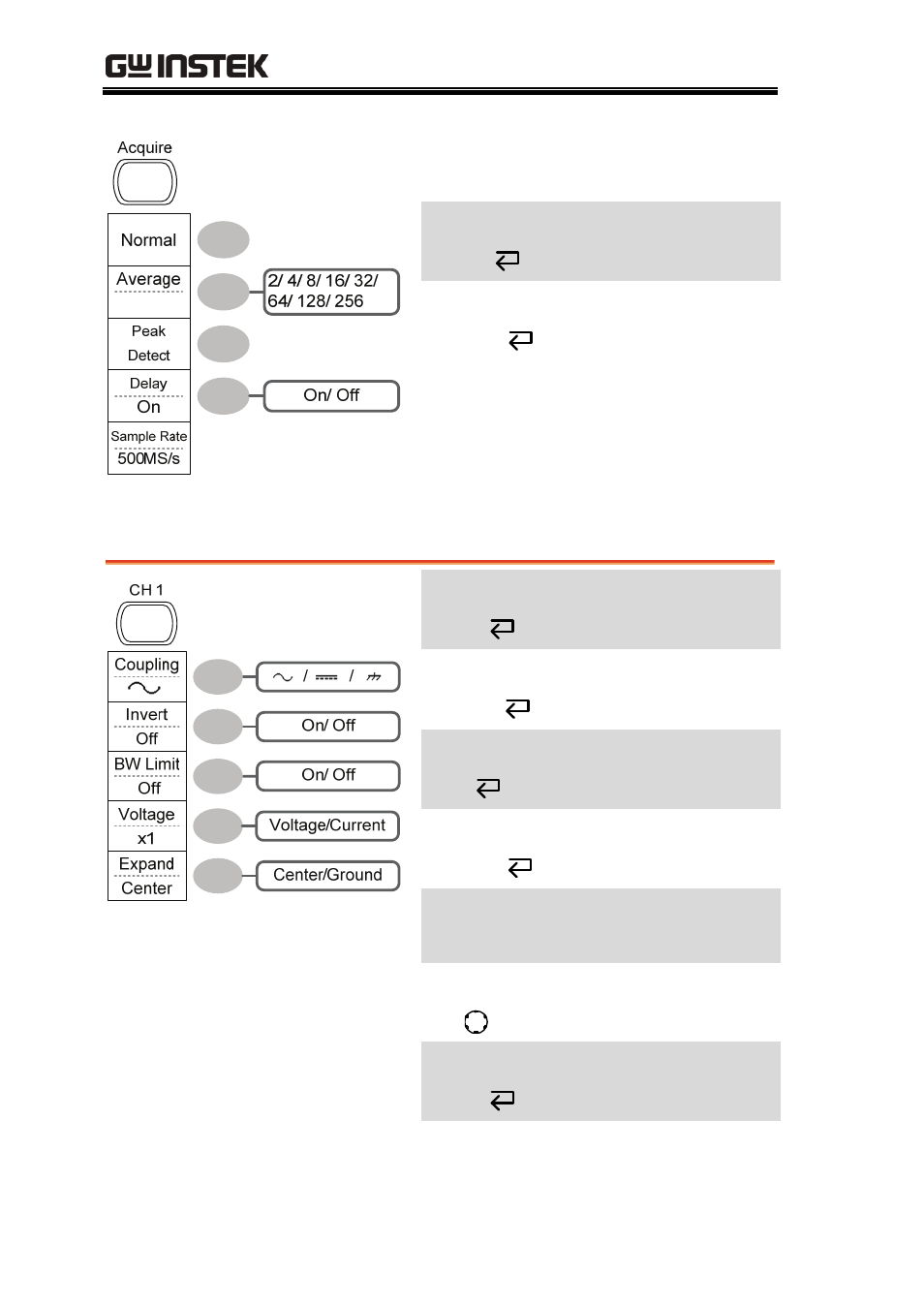

Select acquisition mode

Normal ~ Peak-Detect
Select average number

Average

Turn Delay on/off

Delay On

CH1/2 key

Turn channel on/off

CH 1/2

Select coupling mode

Coupling

Invert waveform

Invert

Turn bandwidth limit on/off

BW Limit

Select probe type

Voltage↔Current
Select probe attenuation

VAR (0.1x~2000x) (1-2-5 step)

Expand type

Expand
