3. product description

3-10

IM 01R04B04-00E-E 8th edition March 01, 2011 -00

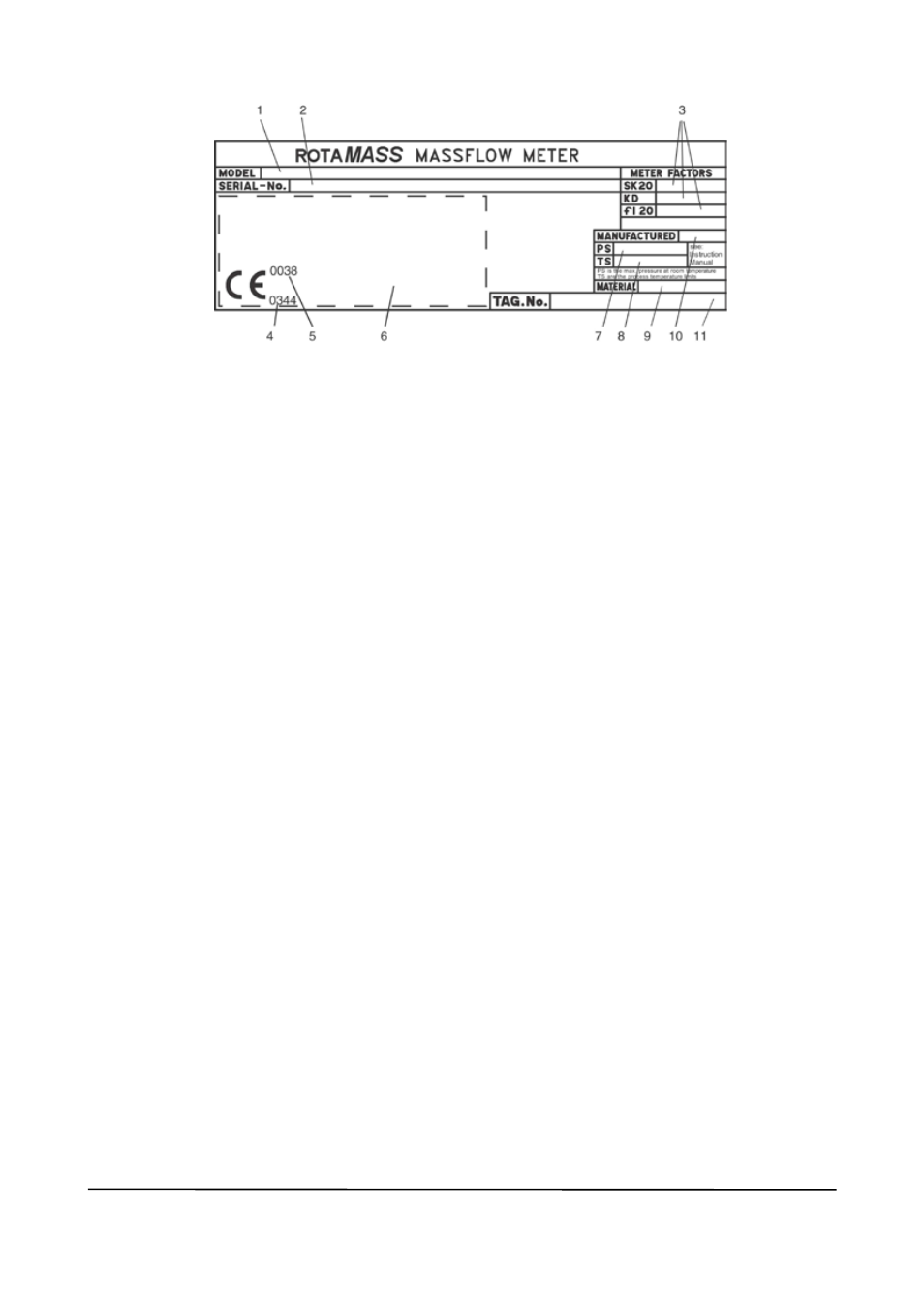

Name plate of remote detector rCCS3:

Model code

Serial number

Calibration constants of detector (see also on calibration certificate)

Number of notified body according ATEX (only for ATEX certified flowmeters)

Number of notified body according PED (only for units with process connections greater than DN25)

Area for Ex- relevant marking (see chapter 9). The CE-mark is not present for FM-approved units.

PS = maximum permissible pressure

TS = maximum permissible process temperature

Material of metering tubes

10 Year of manufacturing

11 Customer specified tag number if option /BG was ordered

Name plate of rCCT3 and rCCS3 with option /dS (dual Seal approval):
In general the name plates of these units are the same as shown above.
The difference is as followed:

PS is named as "Working pressure range"

TS is named as "Process temperature range"

"Dual Seal" is additionally stated on the name plate
