3. product description
3-9
IM 01R04B04-00E-E 8th edition March 01, 2011 -00 All Rights Reserved. Copyright © 2003, Rota Yokogawa

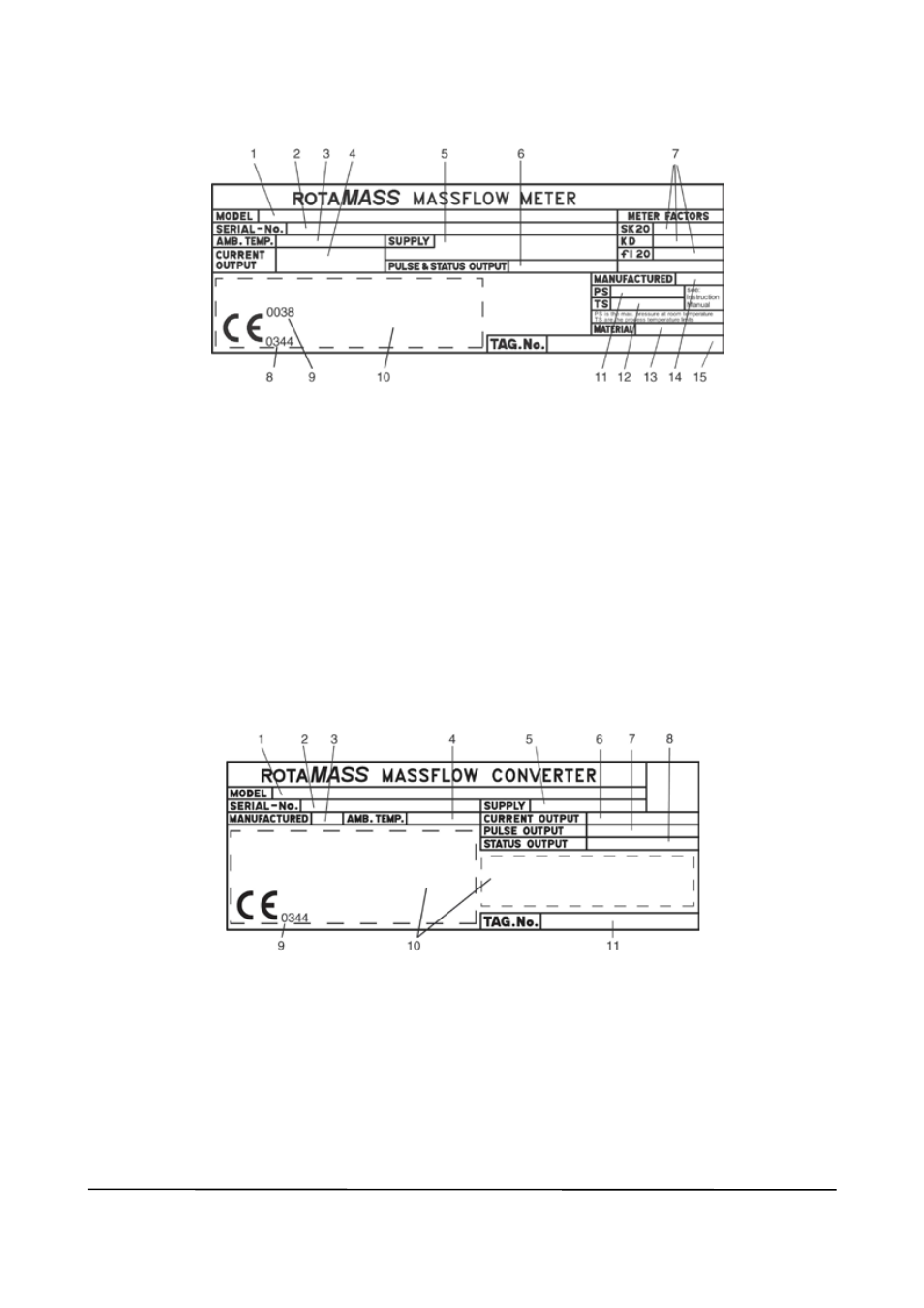

3.11 Name plates
Name plate of Integral type rCCT3:
1 Model code
2 Serial number
3 Ambient temperature range
4 Current output range and load resistance range
5 Power supply range
6 Maximum supply voltage and maximum current for passive pulse- and status- output
7 Calibration constants of detector (see also on calibration certificate)
8 Number of notified body according ATEX (only for ATEX certified flowmeters)
9 Number of notified body according PED (only for units with process connections more than DN25)
10 Area for Ex- relevant marking (see chapter 9). The CE-mark is not present for FM-approved units.
11 PS = maximum permissible pressure
12 TS = maximum permissible process temperature
13 Material of metering tubes
14 Year of manufacturing
15 Customer specified tag number if option /BG was ordered
Name plate of remote Converter rCCF31 / rCCr31:
1 Model code
2 Serial number
3 Year of manufacturing
4 Ambient temperature range
5 Power supply range
6 Current output range and load resistance range
7 Maximum supply voltage and maximum current for passive pulse output
8 Maximum supply voltage and maximum current for passive status output
9 Number of notified body according ATEX (only for ATEX certified flowmeters)
10 Area for Ex- relevant marking (see chapter 9). The CE-mark is not present for FM-approved units.
11 Customer specified tag number if option /BG was ordered
