<7. Operation of EJXMVTool>
7-1
IM 01C25R51-01E
7.
Operation of EJXMVTool
7.1 Flow Configuration Wizard (Auto
Compensation Mode)
7.1.1 Flow Configuration Mode

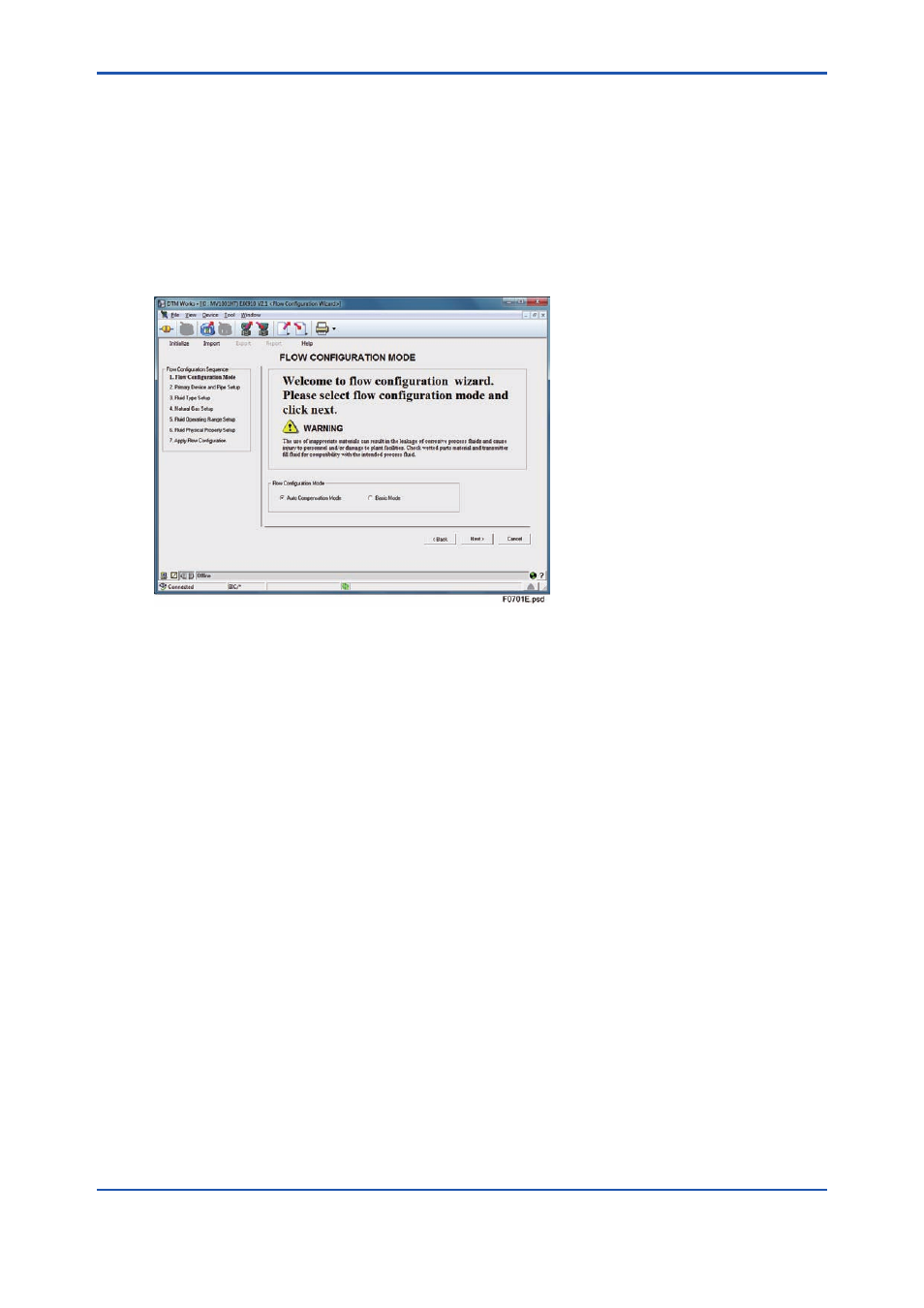

Figure 7.1
Flow Configuration Mode screen
Select desired flow configuration mode and click [Next].
Flow Configuration Mode
• Auto Compensation Mode (Default)
Configuration of the fluid physical properties and primary device for the EJX Multivariable
Transmitter can be performed using a dialog window.
• Basic Mode
Flow operation and density compensation are performed conventionally, with the flow
factors being input manually.
