B-8
IM 01C25R51-01E
B-3 How to Check digitalYEWFLO AR Block
Alarm
Confirm AR Block functions correctly by following the procedures below.
Step 1 Open Online Parameter in Device DTM
Start Device DTM to display the Online Parameter screen.
([Device] → [Parameter] → [Online Parameter])
IMPORTANT
Turn on the alarm output of AR Block at TB: ALARM_PERFORM.
Default setting for the alarm output of AR Block is off.
(Online Parameter: [Transducer Block] → [Alerts])
Step 2 Open the Device Status screen
Display the alarm of AR Block in Diagnostic List of the Device Status screen.
([Online Parameter] → [Device Status] → [Diagnostic List])
NOTE
The alarm information on AR Block appears under “Others” of Diagnostic List.

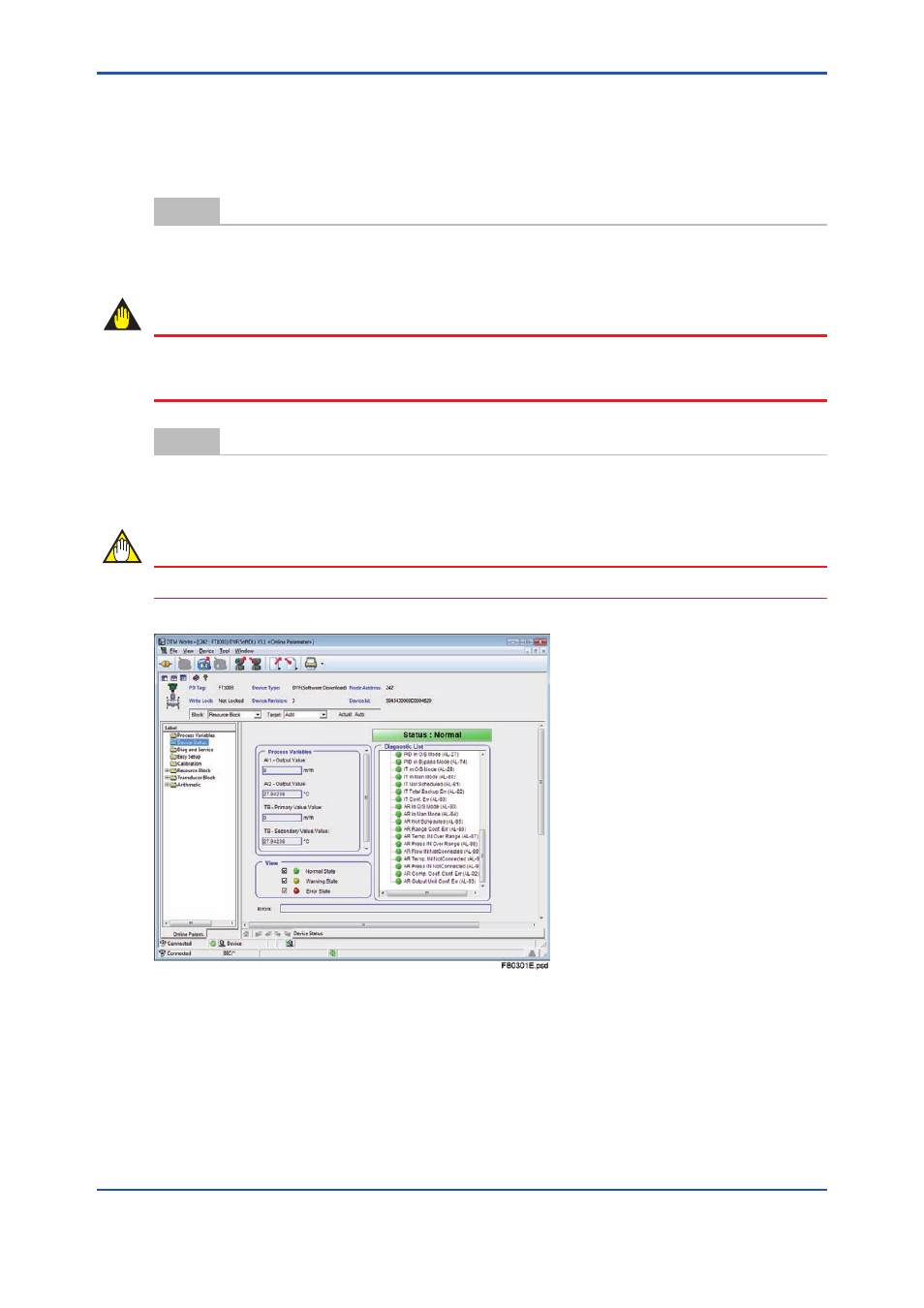

Figure B3.1 Device Status screen
