<8. Operation of DYFMVTool> 8-16
IM 01C25R51-01E
8.2 Flow Configuration Wizard (Steam, Simple
Compensation Mode)
8.2.1 Flow Configuration Mode

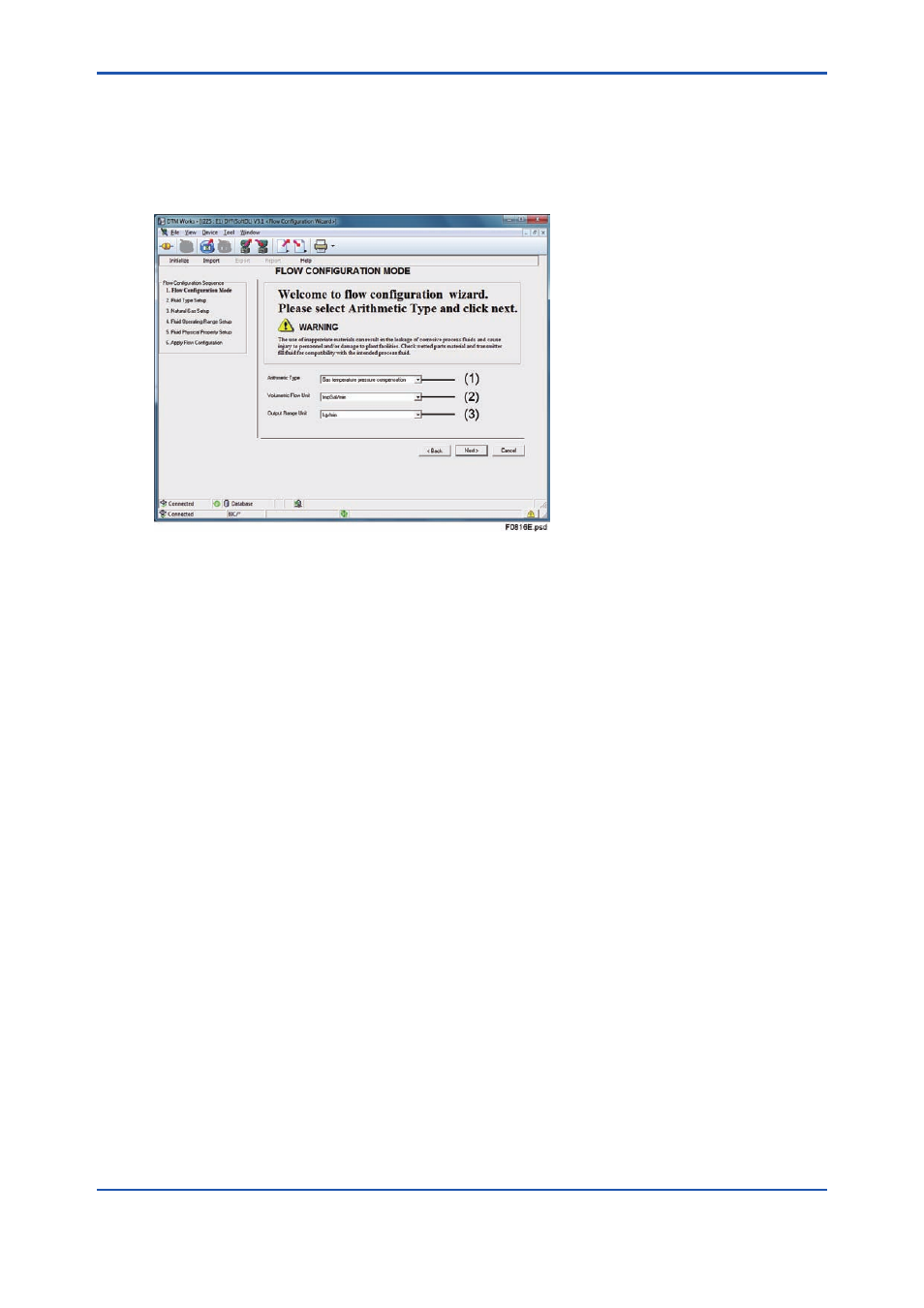

Figure 8.16 Flow Configuration Mode screen
Select desired flow configuration mode and click [Next].
Flow Configuration Mode
• Select
(1) Arithmetic Type
Select calculation type in AR Block
• Steam Compensation Mode
- Saturated steam (Temperature)
- Saturated steam (Pressure)
- Superheated steam
• Simple Gas/Liquid Compensation Mode
- Gas temperature pressure compensation
- Liquid temperature compensation
(2) Volumetric Flow Unit
Select Flowrate unit in AR Block input.
(3) Output Range Unit
Select Flowrate unit in AR Block output.
