<8. Operation of DYFMVTool> 8-18
IM 01C25R51-01E
8.2.3 Apply Flow Configuration

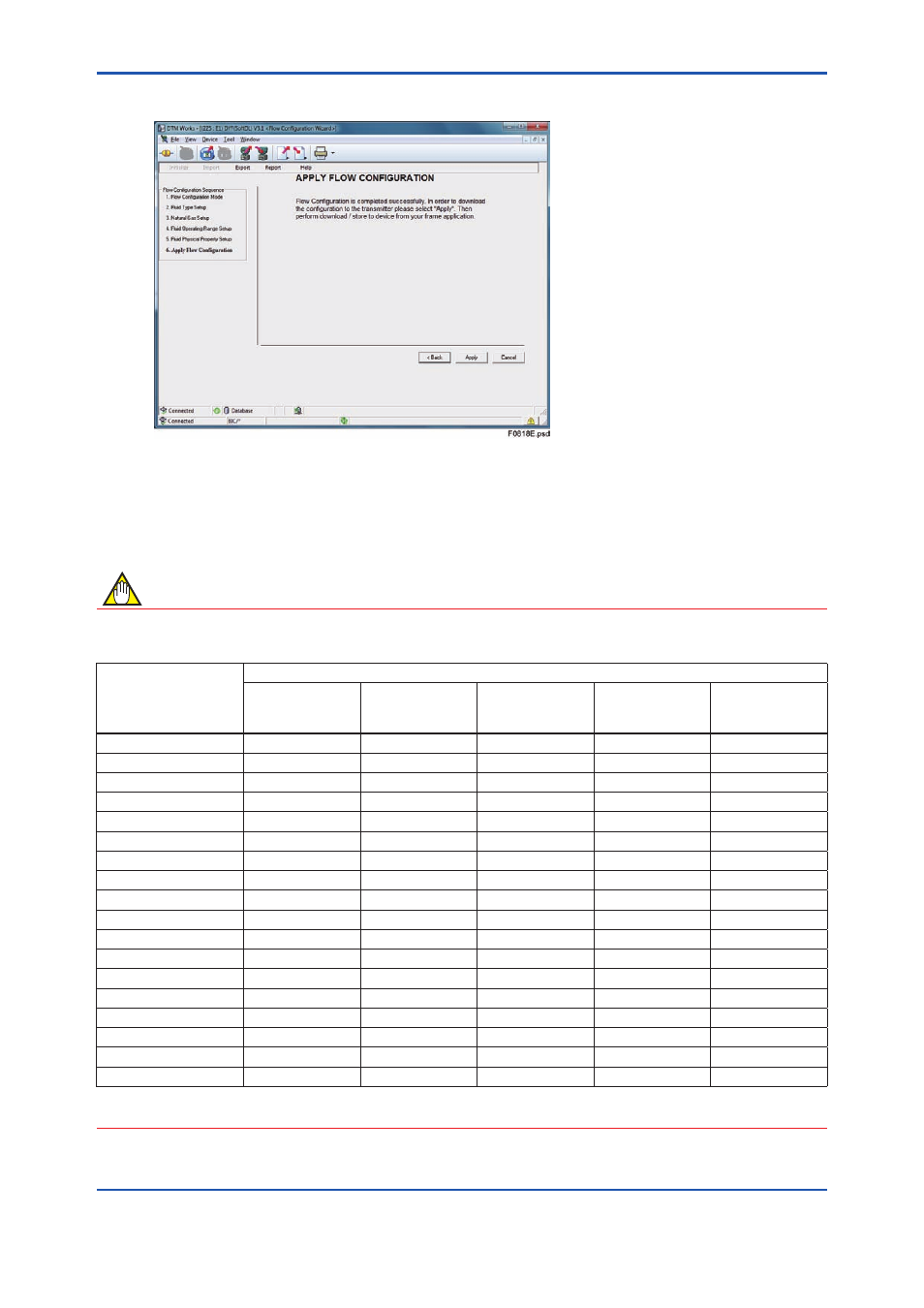

Figure 8.18 Apply Flow Configuration Screen
In order to download the configuration to the device, click “Apply”.
Then perform “Download to Device” from Device DTM. (Refer to section 6.2.3)
Refer to Chapter 5 and Figure 6.3.
NOTE
Following shows “Device General Parameters” which is applied to “Offline Database”.
Table 8.9 “Device General Parameters” applied to “Offline Database”
Simple Compensation Mode
Saturated steam
(Temperature)
Saturated steam
(Pressure)
Superheat steam
Gas temperature
pressure
compensation
Liquid temperature
compensation
Arithmetic Type Applied Applied Applied Applied Applied
Bias Applied (Always "0") Applied (Always "0") Applied (Always "0") Applied (Always "0") Applied (Always "0")
Gain Applied (Always "1") Applied (Always "1") Applied (Always "1") Applied (Always "1") Applied (Always "1")
Bias Input 1 Applied (Always "0") Applied (Always "0") Applied (Always "0") Applied (Always "0") Applied (Always "0")
Gain Input 1 Applied (Always "1") Applied (Always "1") Applied (Always "1") Applied (Always "1") Applied (Always "1")
Bias Input 2 Applied (Always "0") Applied (Always "0") Applied (Always "0") Applied (Always "0") Applied (Always "0")
Gain Input 2 Applied (Always "1") Applied (Always "1") Applied (Always "1") Applied (Always "1") Applied (Always "1")
Output Range.Unit Index Applied Applied Applied Applied Applied
Volumetric Flow Unit Applied Applied Applied Applied Applied
Temperature Unit Applied — Applied Applied Applied
Base Temperature — — — Applied Applied
Pressure Unit — Applied — Applied —
Base Pressure abs — — — Applied —
Density Unit Applied Applied Applied Applied *1 Applied
Base Density — — — Applied *1 Applied
Deviation — — — Applied —
First Temperature Coef. — — — — Applied
Second Temperature Coef. — — — — Applied
Applied: Target parameter is applied by DYFMVTool
*1: Not applied when output unit is Normal or Standard
