<4. Preparation>
4-25
IM 01C25R51-01E
4.6 Start FDT Frame Application
This section describes the operation of DTM with using FieldMate.
For the detailed operation of FieldMate, refer to User's manual of FieldMate.
The procedure is described with EJX910 HART DTM as an example.
4.6.1 Update DTM Setup
After new DTM is installed, click “DTM Setup”, so as to confirm that the designated DTM is
correctly installed.
Click [Start] → [All Programs] → [YOKOGAWA FieldMate] → [Tools] → [DTM Setup]
4.6.2 Start FieldMate
Starting FieldMate by following operation.
Step 1 Click [Start] → [All Programs] → [YOKOGAWA FieldMate] → [FieldMate]

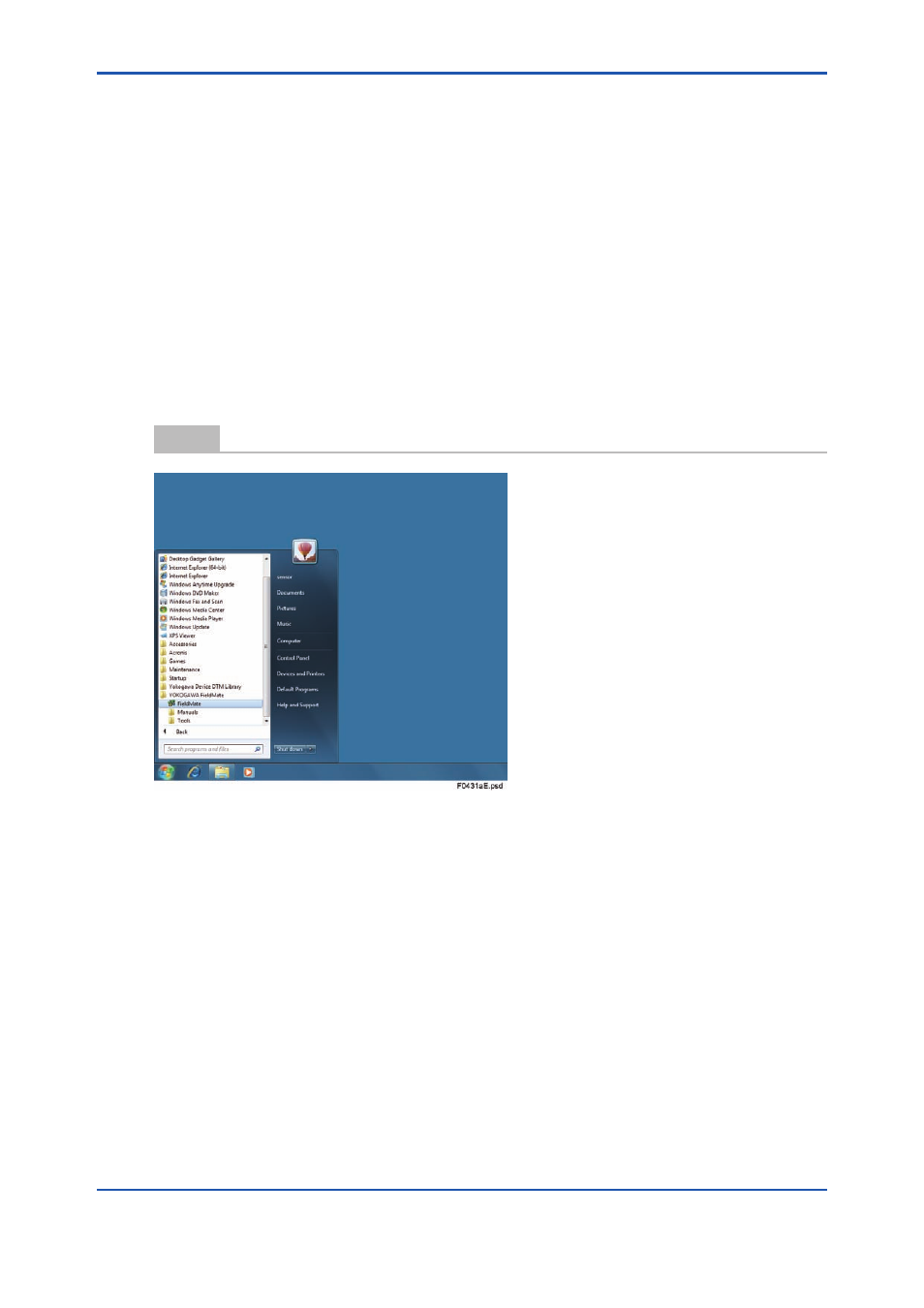

Figure 4.31a Start FieldMate
