B-6
IM 01C25R51-01E
Step 5 Set function block connection information
Double-click "Function Block Application" on the left of the screen to display "Function Block
Application".
Click "Wiring Tool" on the menu bar to connect the blocks as shown in Table B2.3.
Table B2.3 Function blocks for wiring
Value Device Function Block Device Function Block
(1) Volumetric Flow Rate
(Qv)
digitalYEWFLO AI3 Block
OUT
 digitalYEWFLO AR Block
IN
(2) Temperature Temperature Transmitter
(Yokogawa YTA320)
AI1 Block
OUT
 digitalYEWFLO AR Block
IN_1
(3) Pressure Pressure Transmitter
(Yokogawa EJX510A)
AI1 Block
OUT
 digitalYEWFLO AR Block
IN_2
FB0207E.ai
Function Block
Application
(1)
(2)
(3)
Wiring Tool

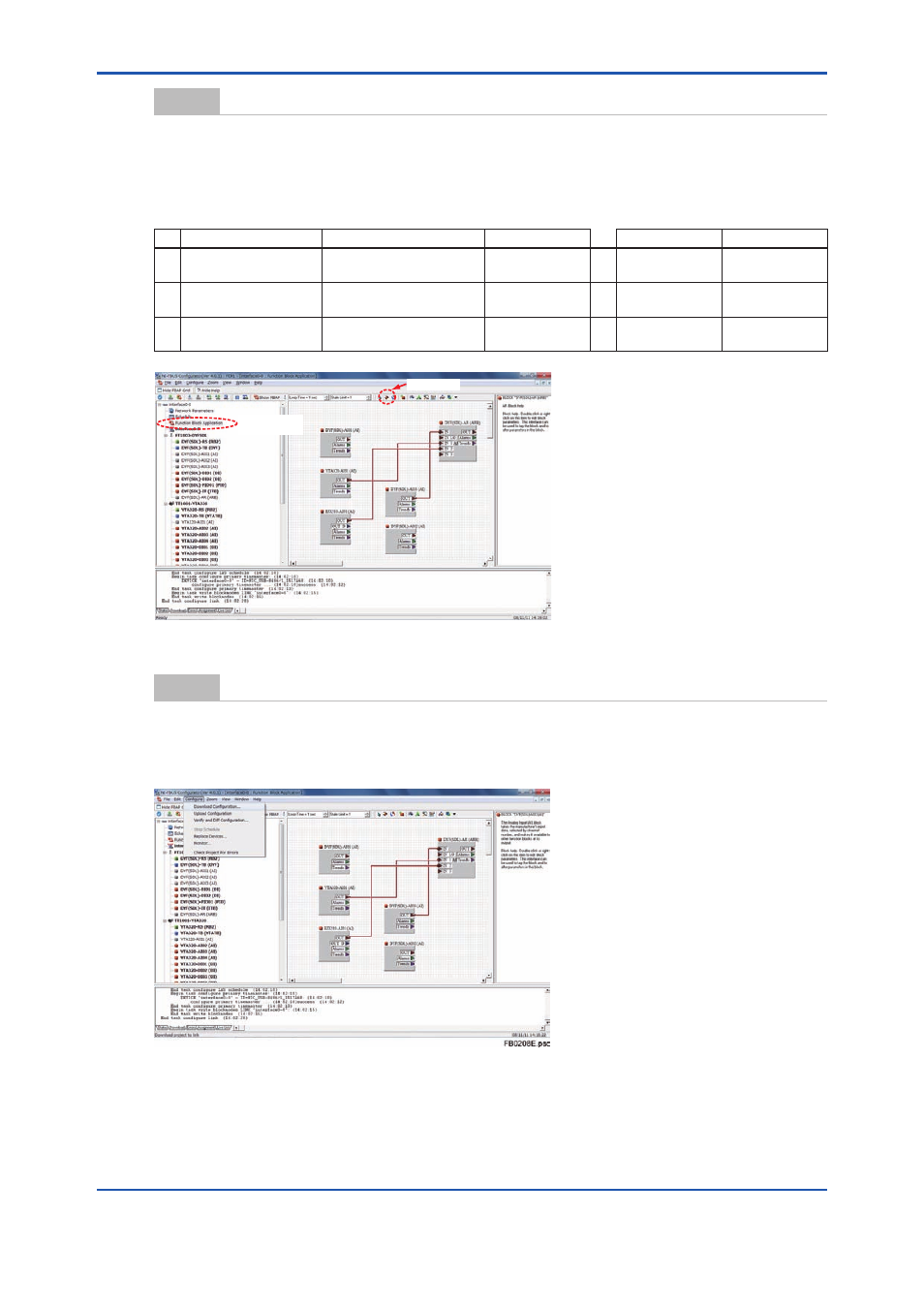

Figure B2.7 How to configure the function block connection
Step 6 Download function block scheduling and connection information
Write the function block scheduling and connection information in the segment where the device
exists after completing the setting.
Figure B2.8 Before “Download Configuration”
