<8. Operation of DYFMVTool> 8-8
IM 01C25R51-01E
(3) AGA8 Gross Characterization Method 2

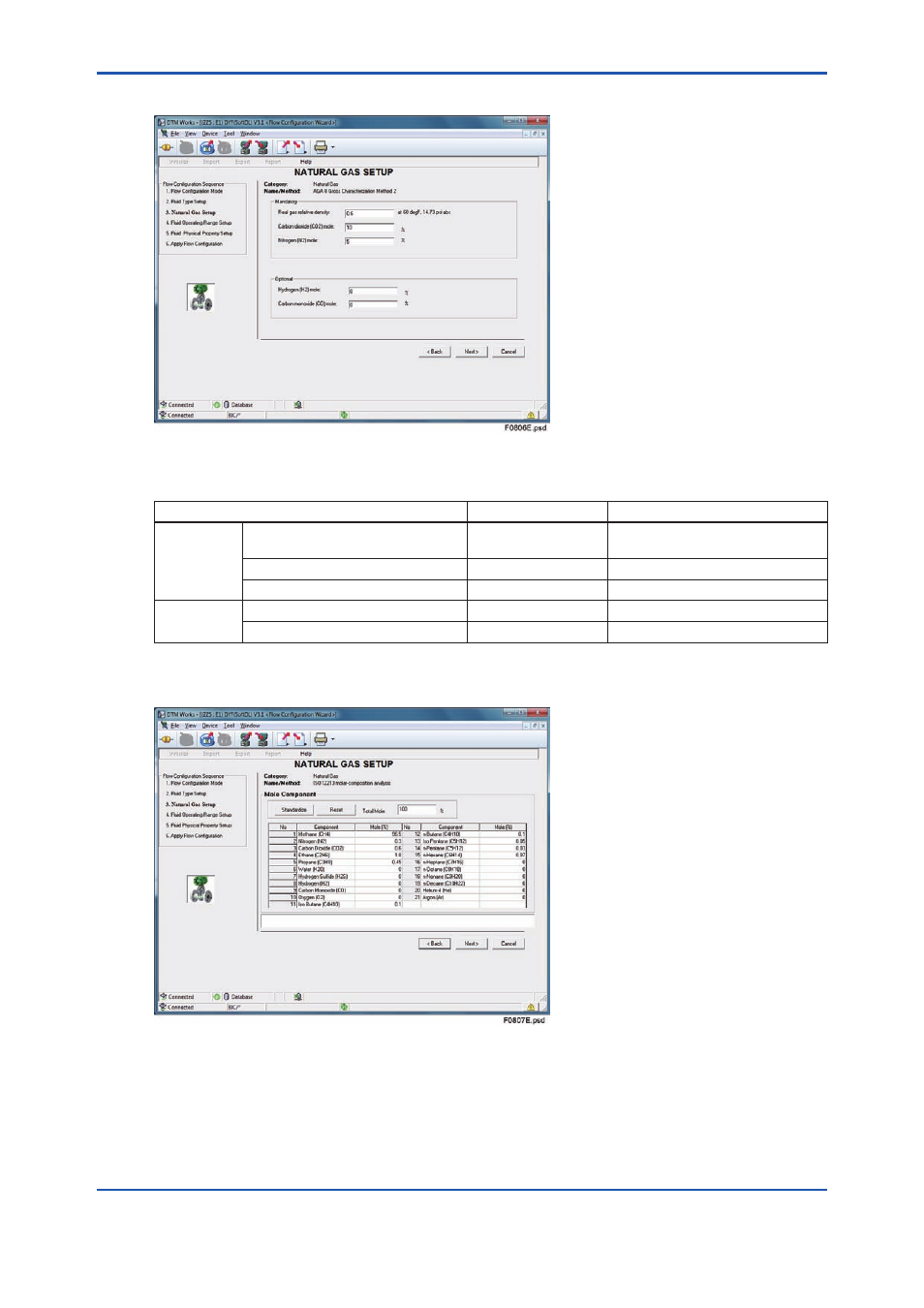

Figure 8.6 Natural Gas Setup screen (3)
Table 8.5 Input & Valid Range (Expanded Range)
Contents Expanded Range Remarks
Mandatory
Relative Density 0.554–0.87
at 14.73 psi abs 60 °F
(at 101.56 kPa abs and 15.56 °C)
CARBON DIOXIDE (CO2) mole 0–30 %
NITROGEN (N2) mole 0–50 %
Optional
HYDROGEN (H2) mole 0–10 %
CARBON MONOXIDE (CO) mole 0–3 %
(4) ISO12213 molar-composition analysis
Figure 8.7 Natural Gas Setup screen (4)
