<4. Preparation> 4-5
IM 01C25R51-01E
Following gives FlowNavigator Software Component assigned to FlowNavigator setup window
button.
Table 4.1 Assignment of FlowNavigator setup window button
FlowNavigator
Software Component
FlowNavigator setup window button
Recommended Custom
[FlowNavigator] [FlowNavigator HART]
[FlowNavigator
F OUNDATION fieldbus]
F OUNDATION fieldbus Program *1
(EJXMVTool F OUNDATION fieldbus
and DYFMVTool F OUNDATION
fieldbus)
Installed Not installed Installed
HART Program *2
(EJXMVTool HART)
Installed Installed Not installed
Resource *3
(Database and Instruction manual)
Installed Installed Installed
*1: Installed by “FlowNavigator F OUNDATION fieldbus program” Upgrade Setup. For detail,
refer to “Installation Procedure ”.
*2: Installed by “FlowNavigator HART program” Upgrade Setup. For detail, refer to “Installation Procedure ”.
*3: Installed by “FlowNavigator Resource” Setup. For detail, refer to “Installation Procedure ”.
Installation Procedure
Following gives the FlowNavigator recommended installation procedures.
IMPORTANT
The quality, operability of FlowNavigator is certified for use with FieldMate only.
Step 1 Login Windows
Login Windows as an Administrator or a user with an administrative authority.
Step 2 Insert the “FlowNavigator CD-ROM”
Insert the “FlowNavigator CD-ROM” into the CD-ROM drive. Auto run starts and a FlowNavigator
setup window appears. And click [FlowNavigator].

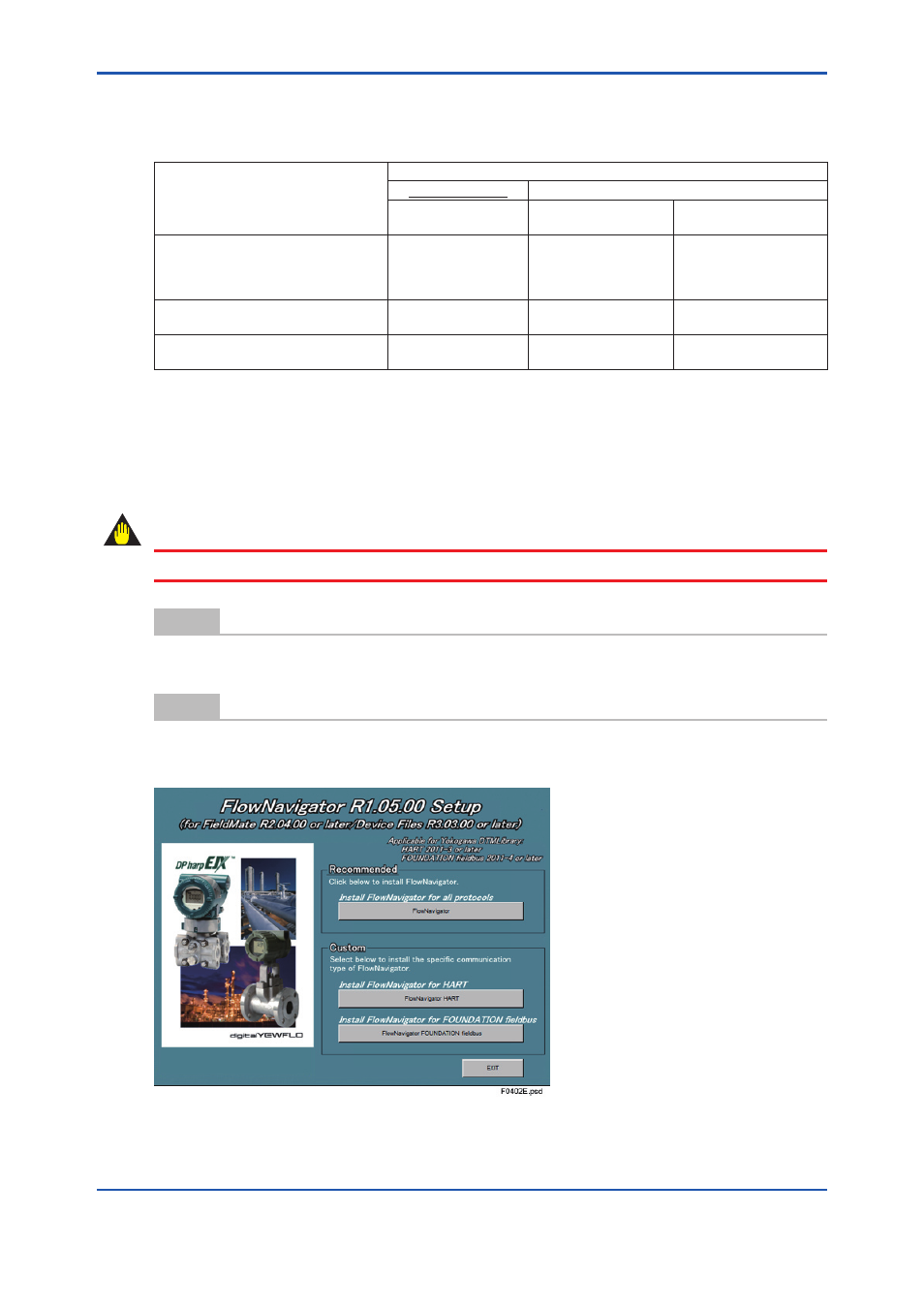

Figure 4.2 FlowNavigator Setup window
