<7. Operation of EJXMVTool> 7-12
IM 01C25R51-01E
7.1.5 Fluid Operating Range Setup
(1) Gas or Steam (excluding Category: Saturated steam),

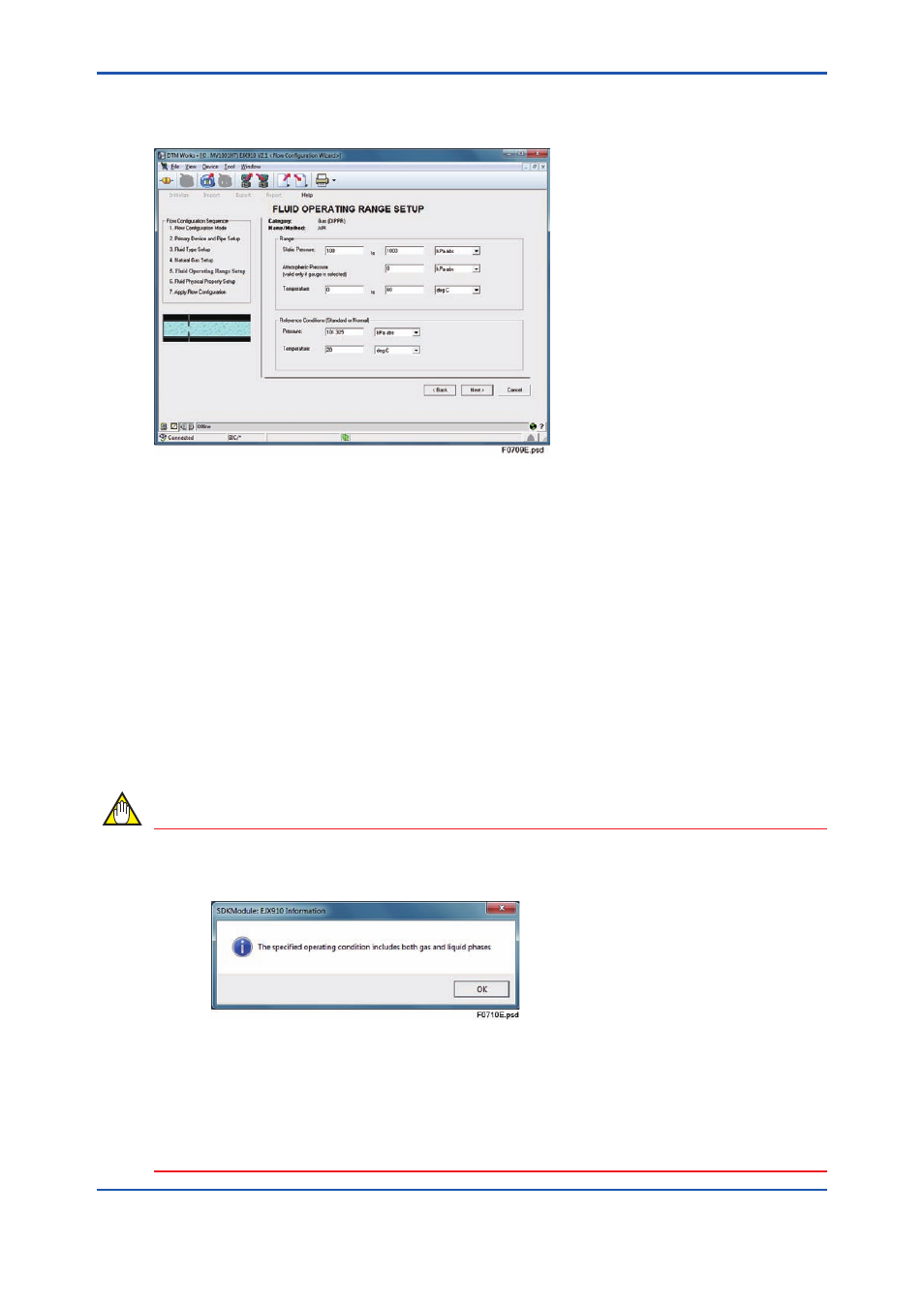

Figure 7.9 Fluid Operating Range Setup Screen (1)
Input operating ranges and select units
Pressure and Temperature units are selectable from following.
Pressure unit: kPa abs, bar abs, psi abs, kPa gauge, bar gauge, psi gauge
Atmospheric Pressure unit: psi abs, bar abs, kPa abs
Temperature unit: degC, degF, Kelvin
Input reference condition and select units
Pressure and Temperature units are selectable from following.
Pressure unit: kPa abs, bar abs, psi abs
Temperature unit: degC, degF, Kelvin
NOTE
• After clicking the [Next] button, if a “The specified operating condition includes both gas
and liquid phases.” information message is displayed, the operating condition is near the
acceptable limits for liquid and gas.
Figure 7.10 Warning message
• Please confirm the density value on the following page (fluid physical property setup page)
and continue configuration.
• If the temperature and pressure range input on the Fluid Operating Range Setup is too wide,
there is a probability of the calculation error of density is big.
• These ranges are used only for the density and viscosity calculation.
• Ranges of Transmitter are not changed.
