Step 3 Upload function block scheduling and connection information
Follow the procedures below to load the function block scheduling and connection information
from the segment where the device exists. The setting information appears on the "Function
Block Application" screen after loading.

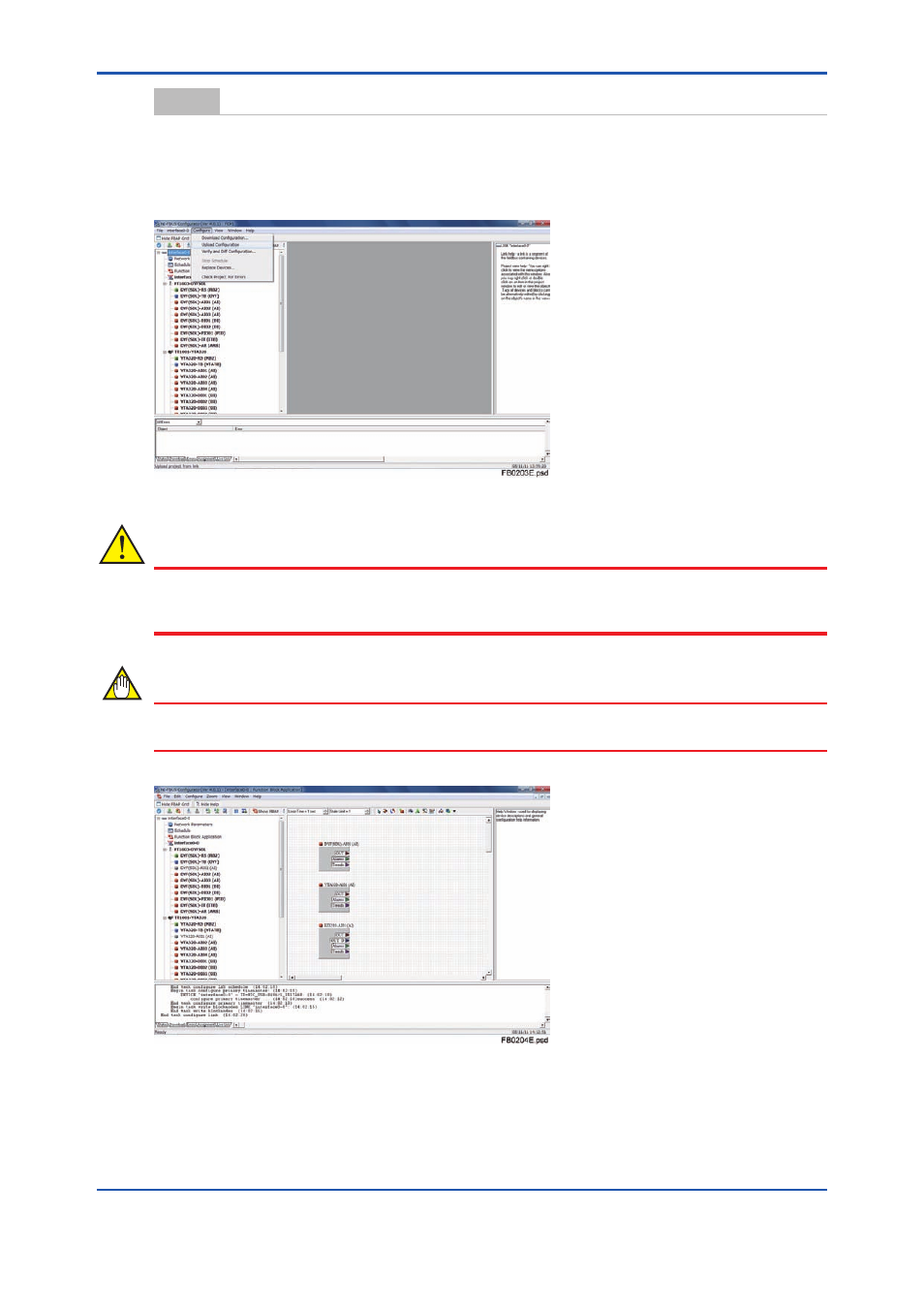

Figure B2.3 Before “Upload Configuration”
CAUTION
"Upload Configuration" must be executed before setting the function block scheduling and
connection information.
Without up-loading, the setting information in the device is overwritten.
NOTE
When any block has scheduling information set at shipment, it appears on the “Function Block
Application” screen. Refer to Table B2.1, B2.2.
Figure B2.4 After “Upload Configuration”
