4. Maintenance Inspection
90

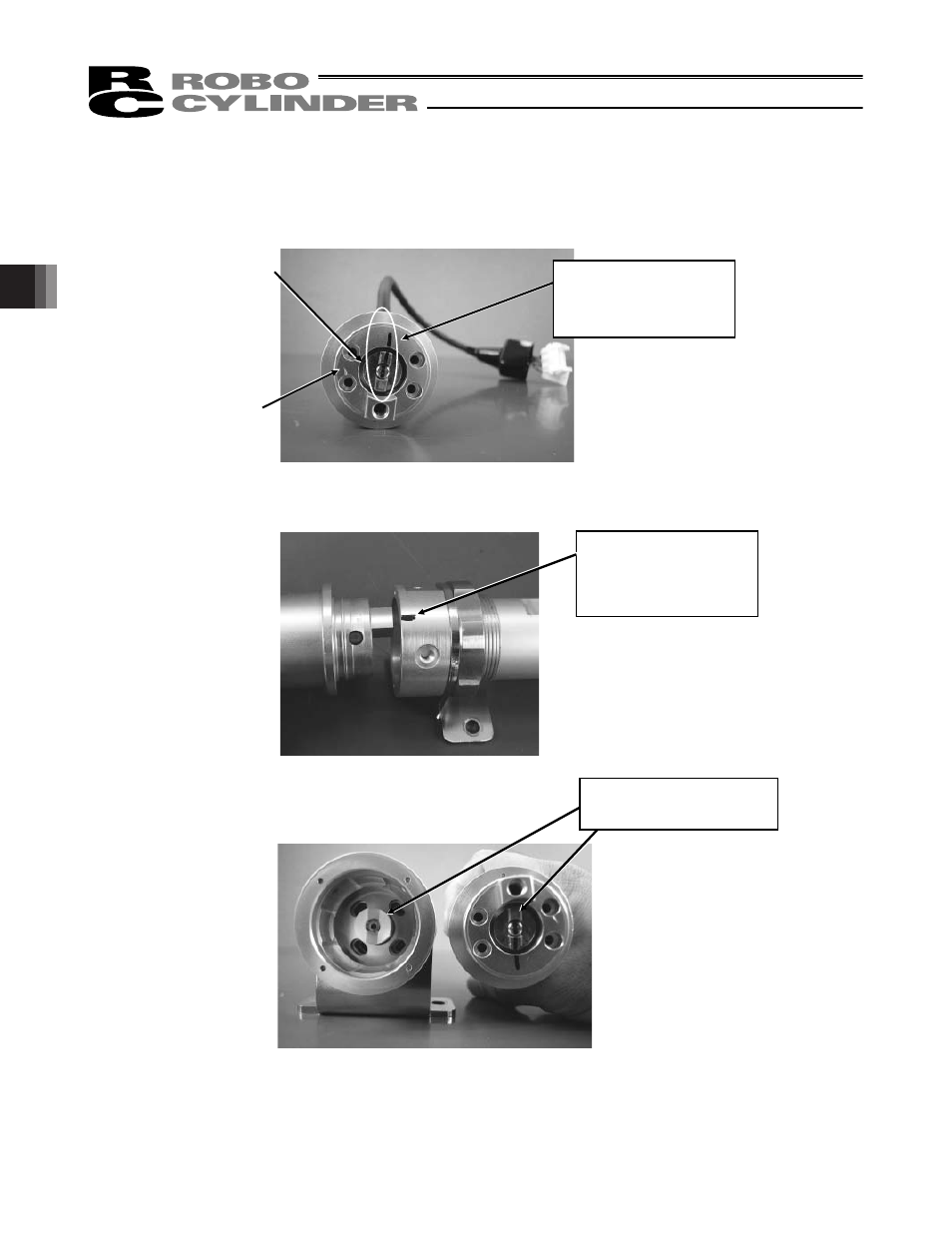

7) Return the coupling in the replacement motor unit to the initial motor position (Z phase position).
Align the tab on the replacement motor unit with the countermark on the cylinder. With the motor unit and
cylinder positioned this way, confirm that the orientation of the actuator coupling (adjusted to a position
corresponding to a rod projection of 2 mm from the mechanical end) corresponds to the position of the
coupling in the replacement motor unit.
Align the tab on the
replacement motor unit
with the countermark on
the cylinder.
Coupling
Replacement
motor unit
Apply countermarks on
the replacement motor
unit and coupling.
Confirm that the coupling
positions correspond.
