2. Installation
55
(4) Using screws on a trunnion (optional)
An optional trunnion is available for installing the actuator. Use this trunnion, if necessary.
z
Applicable model: RCS2-RA4
Mating material is steel
Mating material is aluminum
Screw size
M6
M6
Tightening torque
12.3 N•m
5.4 N•m

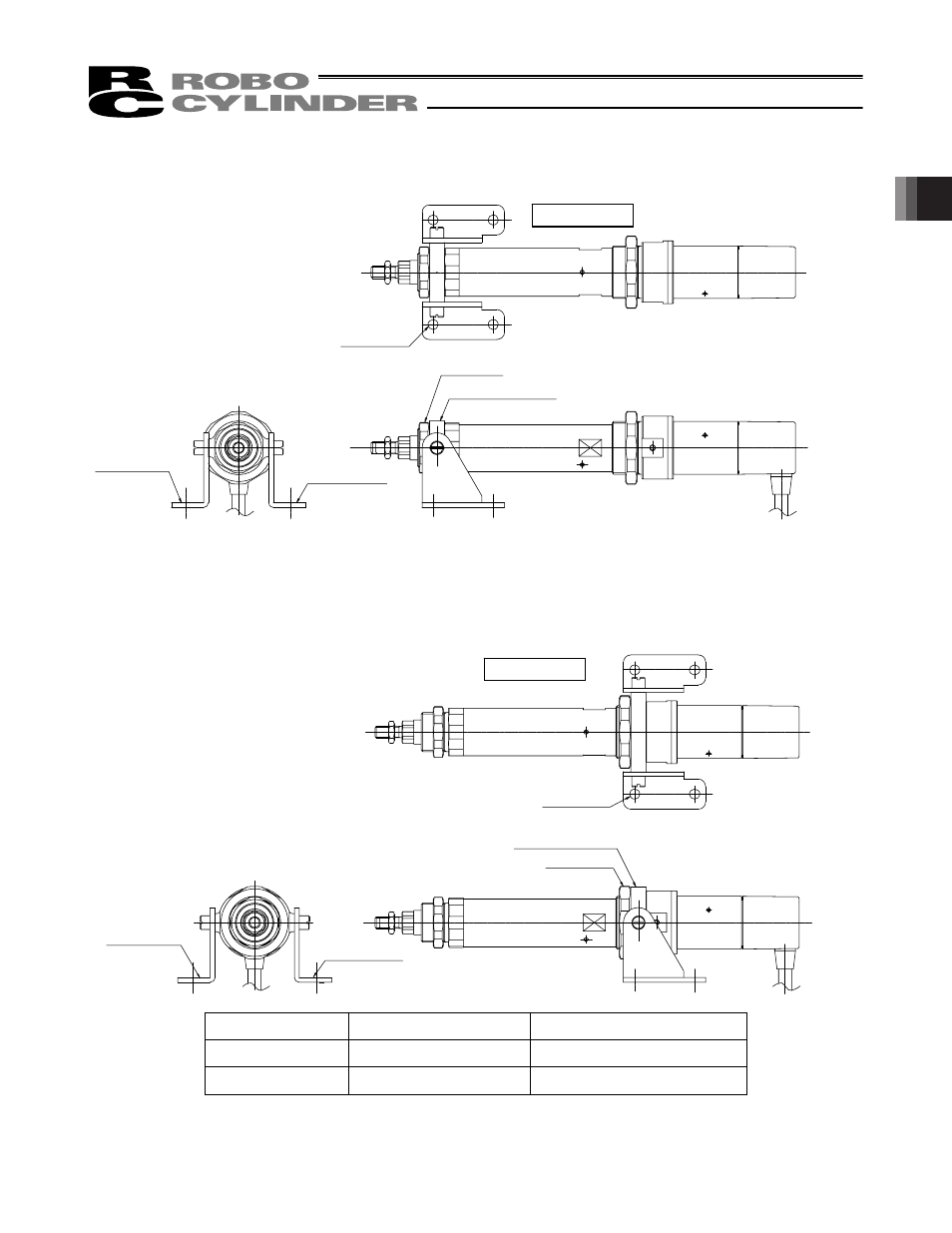

Straight type
Mounting hole
Affixing nut
Trunnion ring
Straight type
Mounting hole
Affixing nut
Bracket B
Bracket A
Trunnion ring
Bracket A
Bracket B
