1. Specifications Check
33

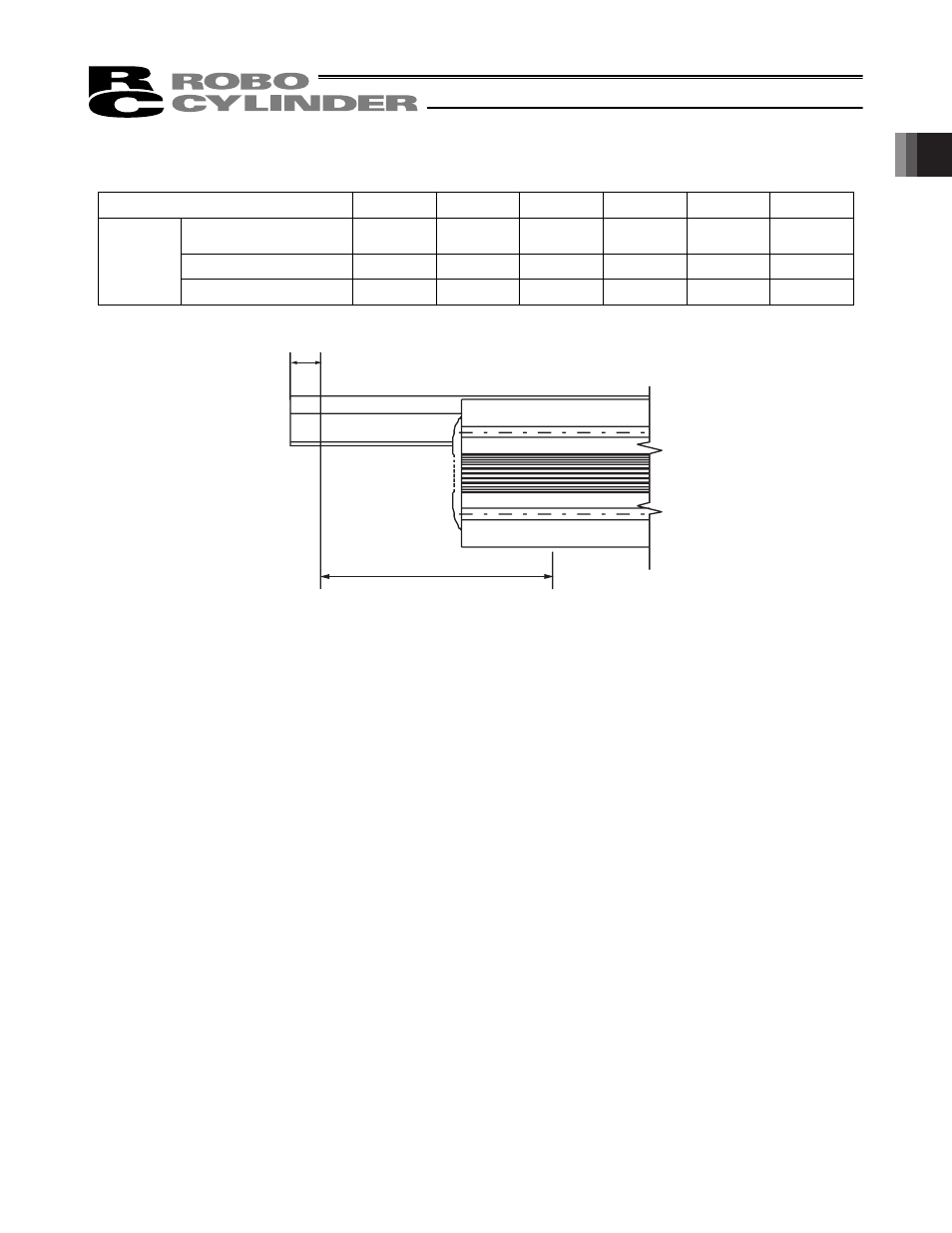

[Moment and Transportable Weight of Flat Type (F5D)]
Shown in the table below is the allowable load on the tip calculated from Ma moment of each stroke.
Stroke 50 100 150 200 250 300
Distance from point of
action [m]
0.07 0.12 0.17 0.22 0.27 0.32
N 64.3 37.5 26.5 20.5 16.7 14.1
F5D Type
(kgf) 6.56 3.83 2.70 2.09 1.70 1.43
25
Distance from point of action
Point of Action
