11

Motor side

Right

Left

Rod

Rod cover

Cylinder tube

Head cover

Motor unit

Rod tip adapter

Cable

Opposite side

of the Motor

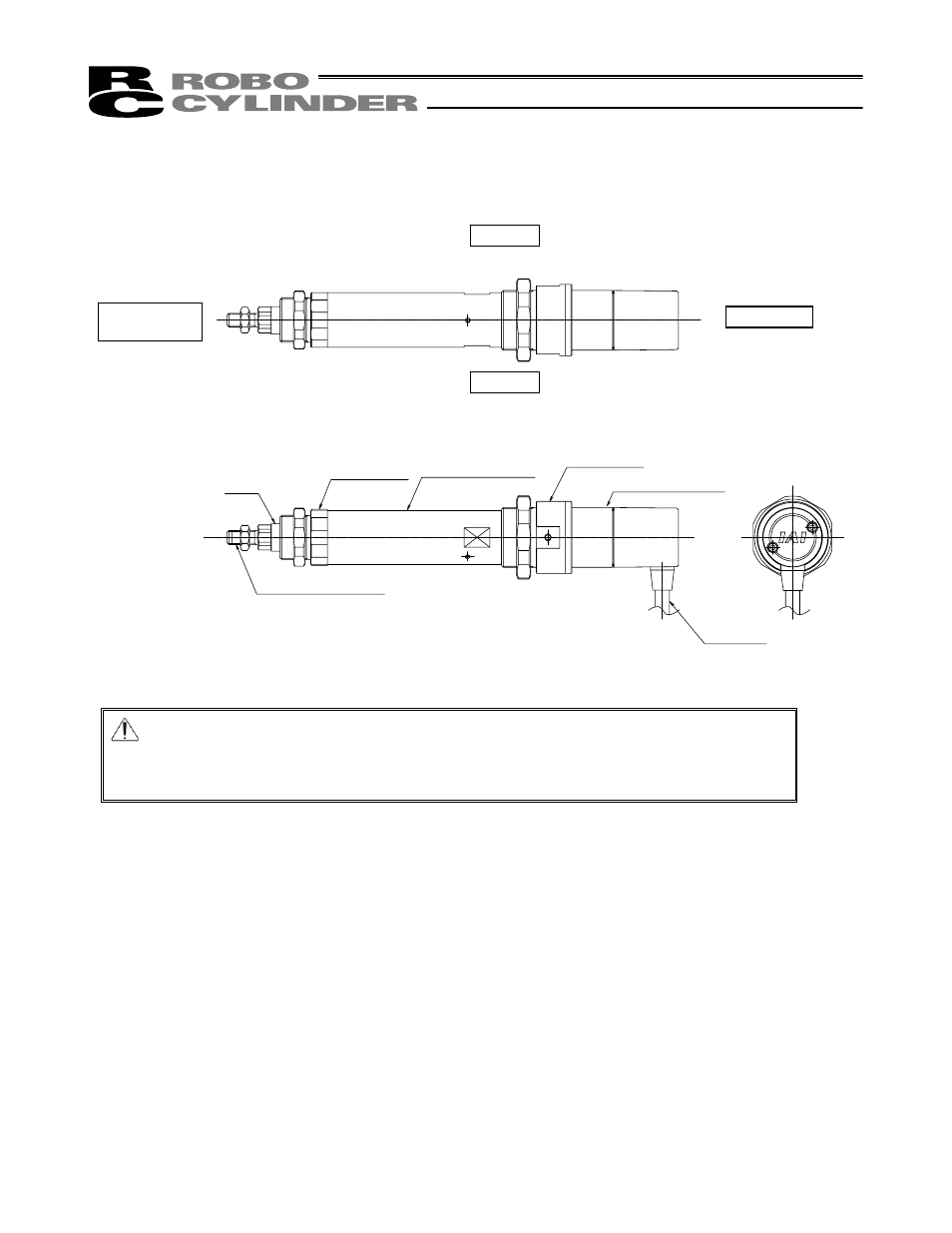

2. Motor Straight Type (Built-in Type): No Guide

z

RCS2-RA4D

Caution: The cable directly connected to the actuator is not robot cable even when ordered

with robot cable option. When designing, please be sure not to give repeated

bending loads to this cable. The robot cable is applicable only to the connecting

cables.
