4. Maintenance Inspection
87

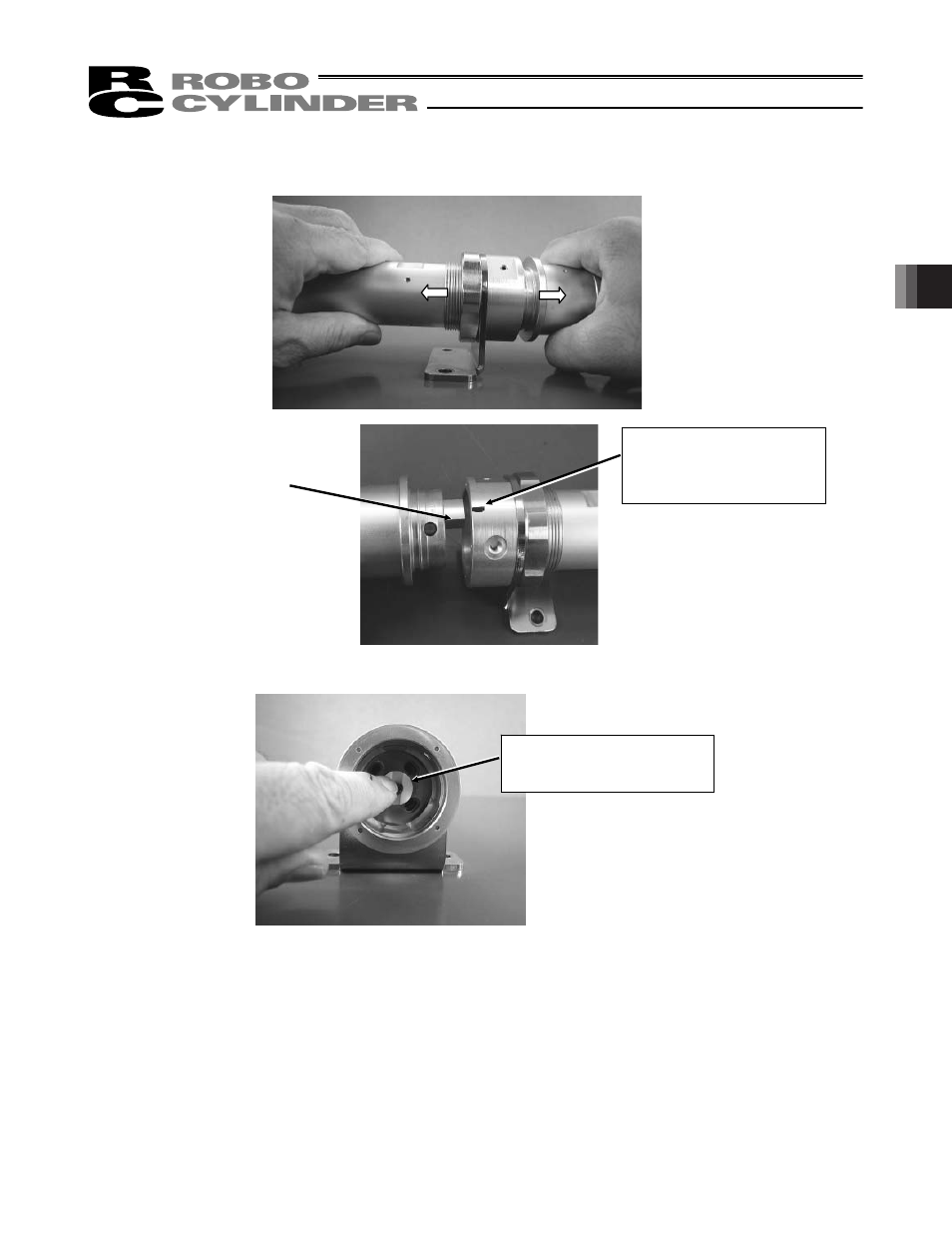

3) Pull out the motor unit.
Before pulling out the motor unit, apply a countermark on the cylinder tube at a position corresponding to the
tab on the motor unit, so that the motor unit and cylinder can be aligned in the correct position later on.
4) Apply grease on the actuator coupling.
Tab on the motor unit
Apply a countermark at a
position corresponding to
the tab on the motor unit.
Apply grease on the inside
of the coupling.
