IAI America RCS2W User Manual
Page 23

15

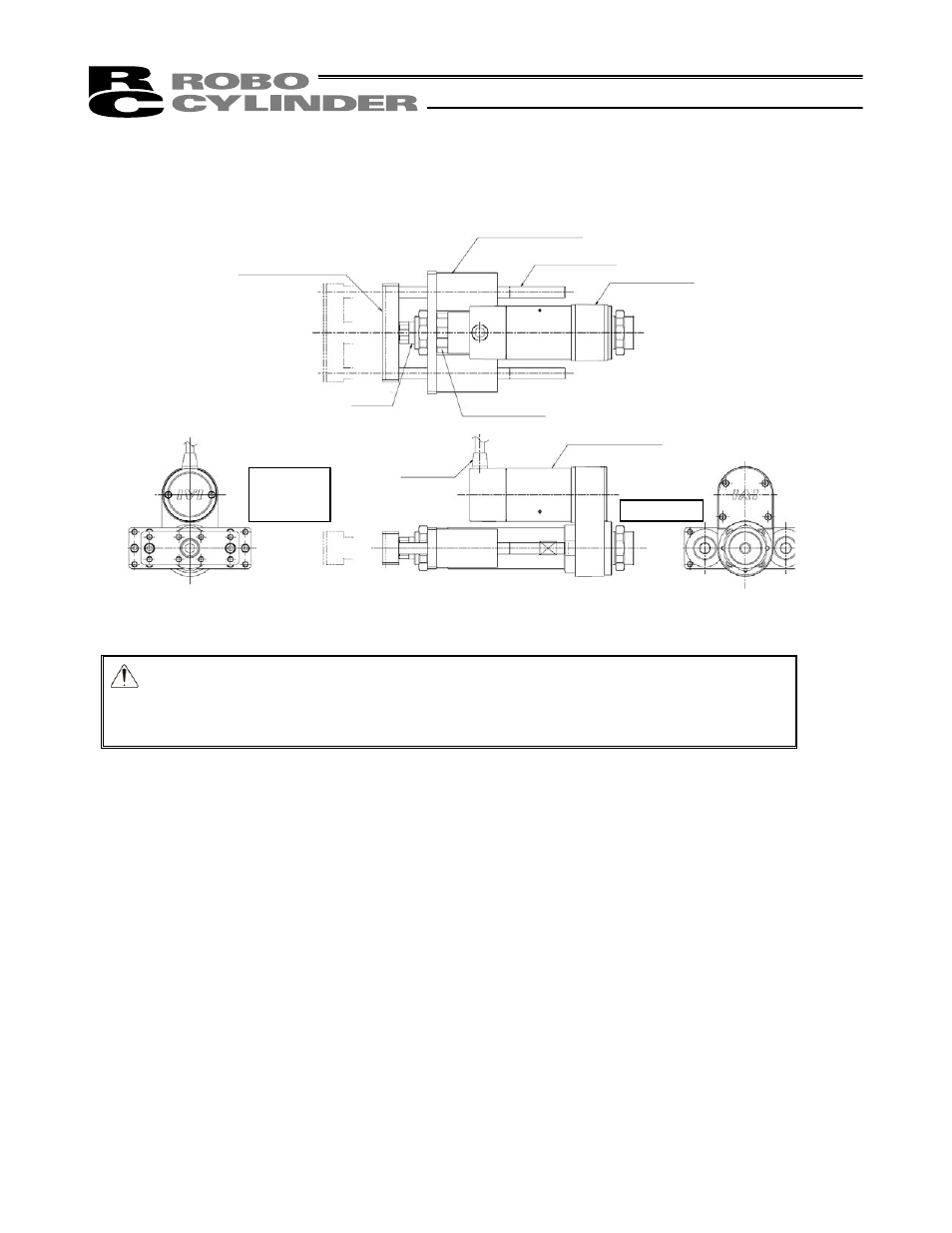

Motor side
Rod
Rod cover
Head cover
Motor unit
Guide bracket
Guide rod
Cable
Guide bearing
Opposite
side of the
Motor
6. Motor Reversing Type: With Double Guides
z
RCS2-RGD4R
Caution: The cable directly connected to the actuator is not robot cable even when ordered
with robot cable option. When designing, please be sure not to give repeated
bending loads to this cable. The robot cable is applicable only to the connecting
cables.
