4. Maintenance Inspection
76
4.5.4
Adjusting the Belt Tension (RA5R Type)

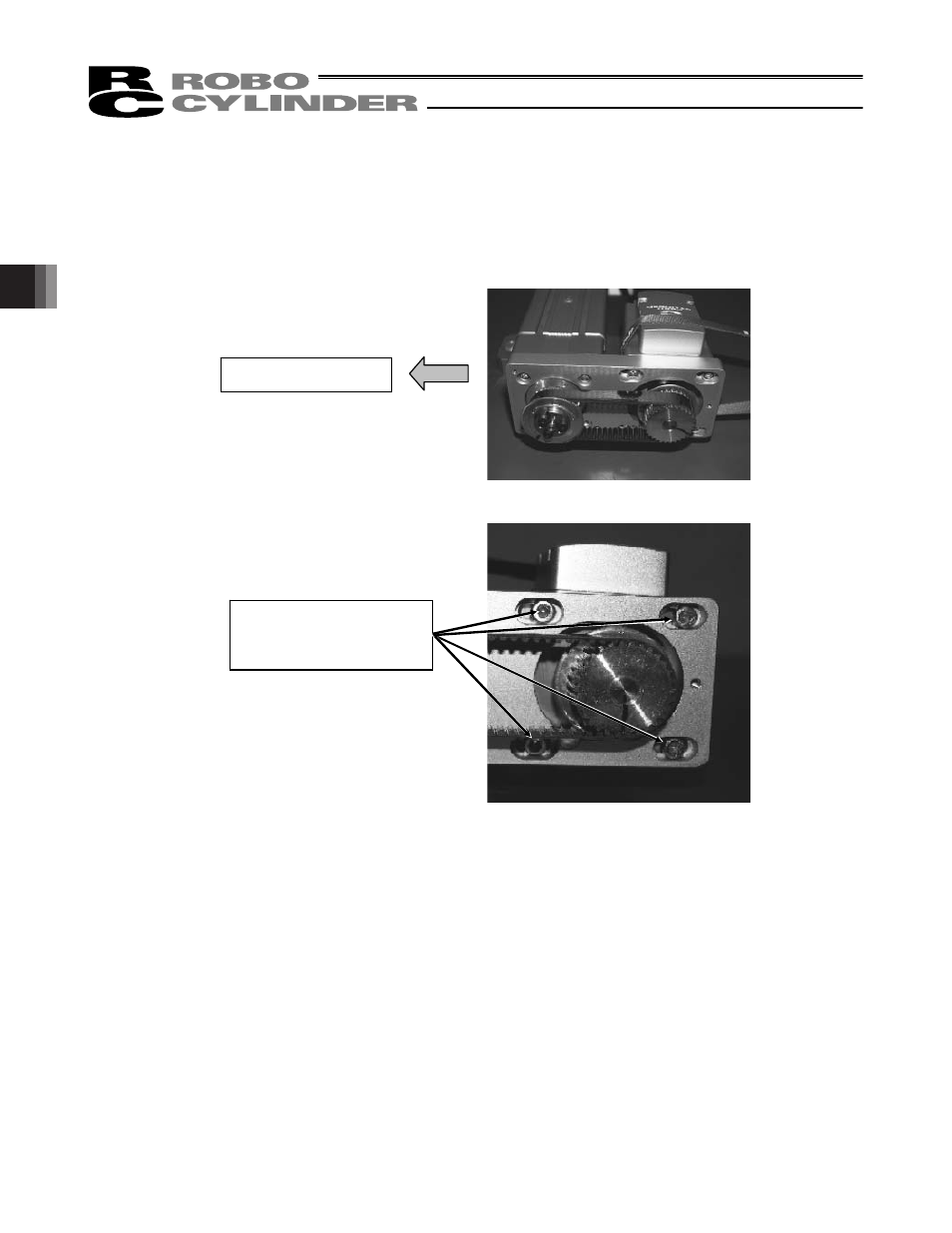

Remove the pulley case cover and loosen the four motor-unit affixing bolts.
Pass a looped string (or long tie-band) around the motor unit, and pull the string to the specified tension using a
tension gauge. In this condition, uniformly tighten the motor-unit affixing bolts.
[Recommended tightening torque for adjustment bolts]
Tension: 6 r 0.2 kgf
Motor-unit affixing bolts
(Use an Allen wrench of 3
mm across flats.)
