Attachment and assembly
The SIDE Control may be attached to different continuous valves. The valves which may be used are
continuous valves with a linear activator to NAMUR recommendation (DIN IEC 534 T6) and such with a
part-turn actuator to VDI/VDE 3845. Furthermore, the SIDE Control is available completely
preassembled on a Bürkert continuous valve from series 27xx.

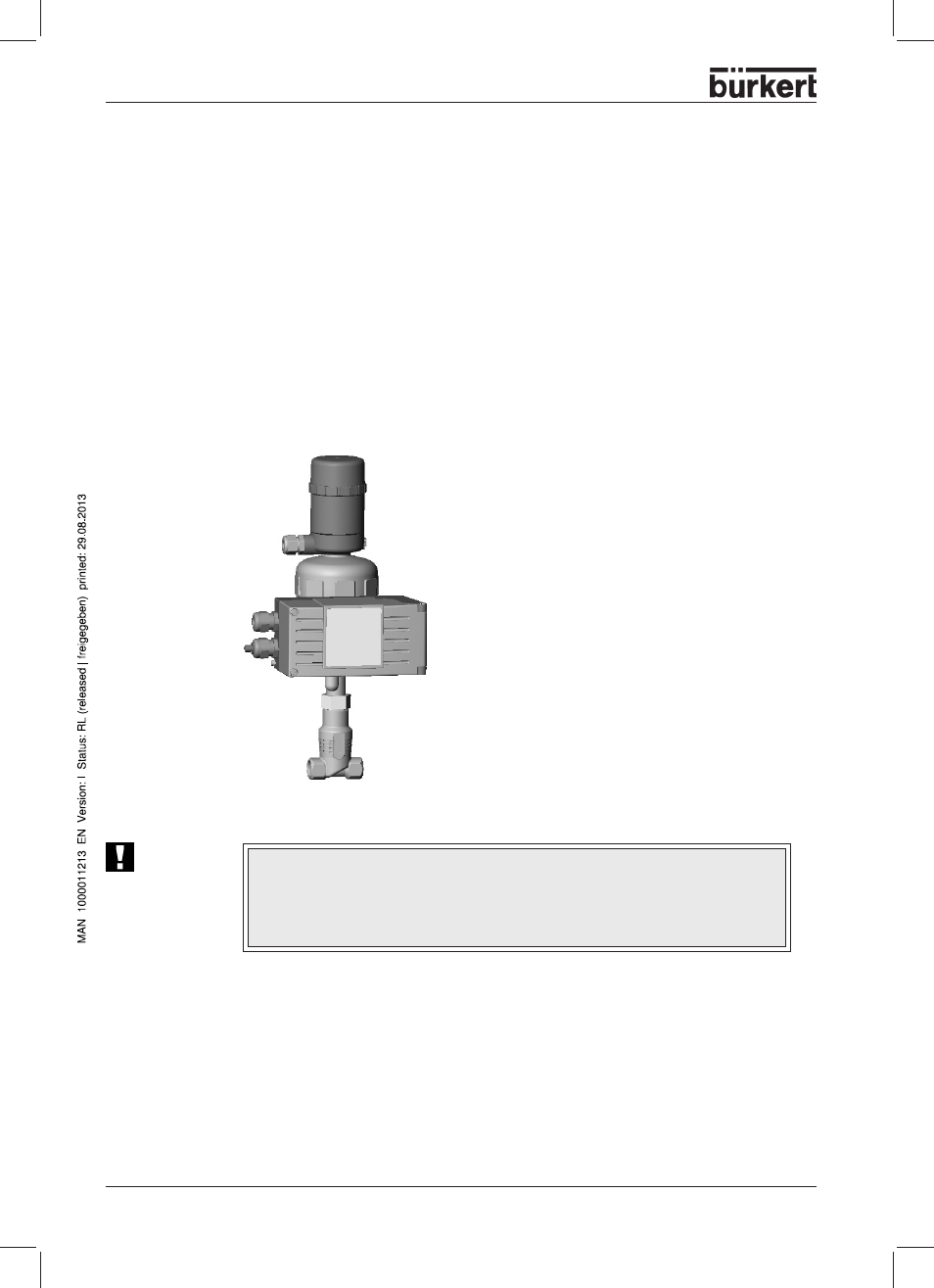

Complete system with Bürkert continuous valve from series 27xx
The SIDE Control is available in combination with Bürkert continuous valves from the series 27xx as a
completely preassembled and tested system.
ATTENTION!
The connecting line from the SIDE Control to the external positioning sensor shall
not be lengthened. Only the positioning sensor supplied shall be connected to the
SIDE Control.
If manipulations are carried out, the EX approval will become void!
